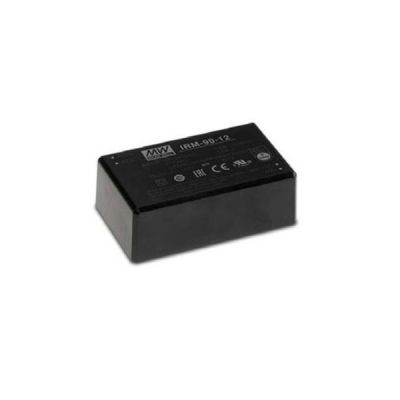

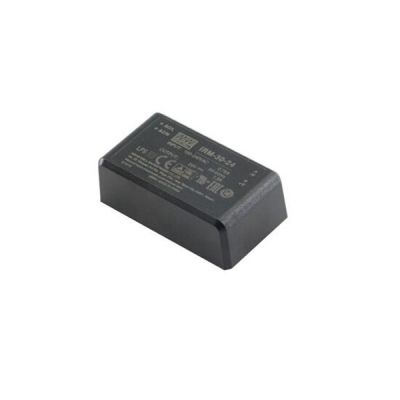

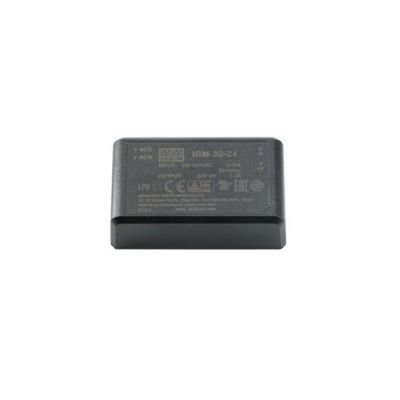

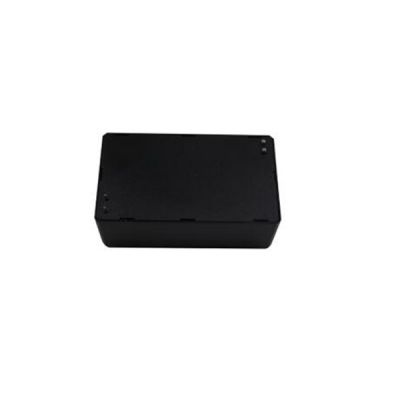

Meanwell 90W AC-DC PCB-Mount Green Power Module with 24V4.13A3.75A99W90W200mVp-p±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell IRM-90-24
Brand Meanwell
Details

Meanwell IRM-90-24 is a 90W miniature (87*52* 29.5mm) AC-DC PCB-mount module type power supply with 24V4.13A3.75A99W90W200mVp-p. The unit is ready to be soldered onto the PCB boards of various kinds of electronic instrument or industrial automation equipment. In addition, it allows the universal input voltage range of 80~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone improve the heat dissipation, and fulfill the anti-vibration demand up to 2~ 5G anti-vibration. Moreover, IRM-90-24 gives the fundamental resistance to dust and moisture. With the high efficiency up to 93% and the extremely low no-load power consumption below 0.21W, Meanwell IRM-90-24 meets the worldwide regulation for the low power consumption requirement for electronics. Since it is designed Class II (no FG pin), incorporating the built-in EMI filtering components, the product enables the compliance with BS EN/EN55032 Class B. The supreme EMC features protect the end electronic devices from electromagnetic interference. Except for the PCB mounting style, this model has the screw terminal style model (ST) as well. In light of  its high reliability, low cost and longevity, Meanwell IRM-90-24 is very suitable for various Industrial electrical applications.

Meanwell IRM-90-24 Encoding

Meanwell IRM-90-24 Encoding

IRM Series Name
90 Rated Wattage
24 Output Voltage
ST Blank: PCB mounting Style
ST: Screw Terminal Style

Meanwell IRM-90-24 Specifications

Model IRM-90-24
OUTPUT DC VOLTAGE 24V
CURRENT   Peak (10Sec.)   4.13A
Convection 3.75A
RATED POWER  Peak (10Sec.)   99W
Convection 90W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 30ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 305VAC 113 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 93.00%
AC CURRENT (Typ.) 1.9A/115VAC 1.1A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 65A/230VAC
LEAKAGE CURRENT < 0.25mA/240VAC
PROTECTION OVERL OAD 115% ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 25.2-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +80(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE ; EN62368-1;altitude up to 2000 meters
SAFETY & EMC SAFETY STANDARDS  IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
OTHERS MTBF 310Khrs min. MIL-HDBK-217F (25); 1694.28Khrs min. Telcordia TR/SR-332 (Bellcore) (25)
DIMENSION PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H)
PACKING PCB mounting style : 0.197Kg;60pcs/11.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT

Meanwell IRM-90-24 Features

l  3.43''x2.05"compact size

l  Isolation ClassⅡ

l  Over voltage category Ⅲ

l  100W peak (10 sec.)

l  3 years warranty

l  Wide operating temp. rage -30~80℃

l  Protections: Short circuit/Overload/Over voltage

l  Operating attitude up to 4000 meters

l  Cooling by free air convection

l  PCB, chassis or screw terminal mounting version

l  Universal input 80~ 305VAC

l  No load power consumption < 0.21W

l  EMI BS EN/EN55032 Class B without additional components

Meanwell IRM-90-24 Features

Meanwell IRM-90-24 Applications

l  Mechanical equipment

l  Industrial electrical equipment

l  Hand-held electronic device

l  Factory automation equipment

Meanwell IRM-90-24 Applications

Meanwell IRM-90-24 Mechanical Diagram

Meanwell IRM-90-24 Mechanical DiagramMeanwell IRM-90-24 Mechanical Diagram
