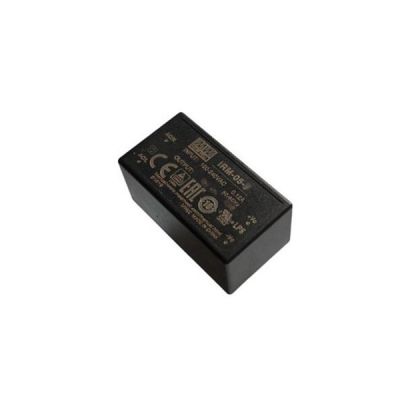

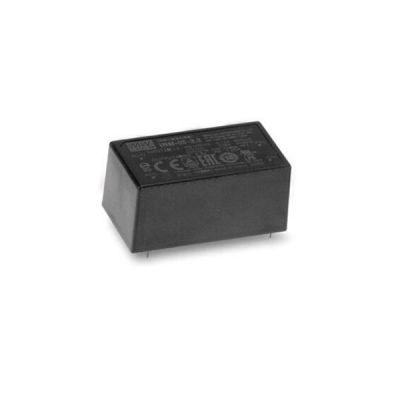

Meanwell 5W AC-DC PCB-Mount Green Power Module with 15V0.33A0-0.33A4.95W200mVp-p±2.5%±0.3%±0.5%

- +
Availability:In stock
SKU Meanwell IRM-05-15
Brand Meanwell
Details

Meanwell IRM-05-15 is a 5W miniature (45.7*25 .4*21.5mm) AC-DC module-type power supply with 15V0.33A0-0.33A4.95W200mVp-p. It is ready to be soldered onto the PCB boards of various kinds of electronic instrument and industrial automation equipment. Apart from them, this unit permits the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone combined enhance the heat dissipation and meet the anti-vibration demand up to 5G. What’s more, IRM-05-15 has the fundamental resistance to dust and moisture. With the high efficiency going up to 77% and the extremely low no-load power consumption below 0.1W, Meanwell IRM-05-15 fulfills the worldwide regulation for the low power consumption requirement for electronics. Since IRM-05-15 is designed Class II (no FG pin), incorporating the built-in EMI filtering components, it enables the compliance with BS EN/EN55032 Class B. The supreme E MC features also keep the end electronic units from electromagnetic interference. As a result of the high reliability, low cost and longevity, Meanwell IRM-05-15 is an ideal solution for various Industrial electrical applications.

Meanwell IRM-05-15

Meanwell IRM-05-15 Encoding

IRM Series Name
5 Rated Wattage
15 Output Voltage

Meanwell IRM-05-15 Specifications

Model IRM-05-15
OUTPUT DC VOLTAGE 15V
RATED CURRENT 0.33A
CURRENT RANGE 0-0.33A
RATED POWER 4.95W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE TOL ERANCE  ±2.5%
LINE REGULATION ±0.3%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 600ms, 30ms at full load
HOLD UP TIME (Typ.) 80ms/230VAC 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 305VAC 120 ~ 430VDC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 75%
AC CURRENT (Typ.) 0.12A/115VAC 0.08A/230VAC 0.06A/277VAC
INRUSH CURRENT(Typ.) COLD START 20A/115VAC 40A/230VAC
LEAKAGE CURRENT < 0.25mA/277VAC
PROTECTION OVERL OAD 115% ~ 260% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 17.25-20.25V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE 260±5,5s (max.)
OPERATING ALTITUDE 2000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035, BS EN/EN61000-6-2
OTHERS MTBF 1495.8Khrs min. MIL-HDBK-217F (25)
DIMENSION 45.7*25.4*21.5 mm (L*W*H)
PACKING 0.033Kg;270pcs/ 9.8Kg/0.94CUFT

Meanwell IRM-05-15 Features

l  Pass LPS

l  Isolation Class Ⅱ

l  3 years warranty

l  1.8''x1"compact size

l  Cooling by free air convection

l  Universal input 85~305VAC

l  Wide operating temp. range -30℃~70℃

l  No load power consumption<0.1 W

l  EMI Class B without additional components

l  Protections: Short circuit/Overload/Over voltage

Meanwell IRM-05-15 Features

Meanwell IRM-05-15 Applications

l  Industrial electrical equipment

l  Mechanical equipment

l  Factory automation equipment

l  Hand-held electronic device

l  3 years warranty

Meanwell IRM-05-15 Applications

Meanwell IRM-05-15 Mechanical Diagram

Meanwell IRM-05-15 Mechanical Diagram
