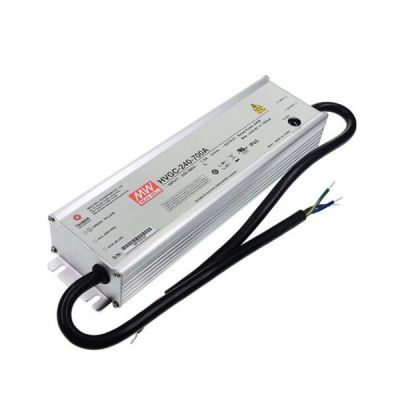

Meanwell 240W Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell HVGC-240
Brand Meanwell
Details

Meanwell HVGC-240 Series is 240W AC/DC LED power supply highlighting constant current mode and high voltage output. At the same time, the entire series could operate from 180~528VAC and offer models with different rated current ranging between 700mA and 3500mA. The model has five types: A B AB Dx D2 IP65 and IP67 respectively Since the efficiency reaches high up to 93.5% based on fanless design, HVGC-240 is able to work for -40℃ ~ +90℃ case temperature under free air convection. What’s more, the metal housing design and IP67/IP65 ingress protection level allow them to satisfy both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high reliability and excellent quality, Meanwell HVGC-240 Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HVGC-240 price and specs 240w Constant Current LED Driver Power supply HVGC-240 A B AB Dx D2 IP65 IP67 YCICT

Meanwell HVGC-240 Series Encoding

HVGC Series Name
240 Rated Wattage
1750 Rated Output Current (700/1050/1400/1750/2100/2800/3500mA)
A Function options
Type IP Level Function Note
A IP65 Io adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance ) In Stock
Dx IP67 Built-in Smart timer dimming function by user request By Request
D2 IP67 Built-in Smart timer dimming and programmable function By Request

Meanwell HVGC-240 Series Model Specifications

Model HVGC-240-700 HVGC-240-1050 HVGC-240-1400 HVGC-240-1750 HVGC-240-2100 HVGC-240-2800 HVGC-240-3500
OUTPUT RATED CURRENT 700mA 1050mA 1400mA 1750mA 2400mA 2800mA 3500mA
RATED POWER 240W 240W 240W 240W 240W 240W 240.1W
CONSTANT CURRENT REGION 71.4-342.8V 114.3-228.6V 85.7-171.4V 68.5-137.1V 57.2-114.3V 42.9-85.7V 34.3-68.6V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
350-700mA 525-1050mA 700-1400ma 875-1750mA 1050-2100mA 1400-2800mA 1750-3500mA
CURRENT RIPPLE 5.0% max. @rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms/230VAC, 347VAC, 480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC, at load>=60%/480VAC)
EFFICIENCY (Typ.) 93.50% 93.00% 93.00% 93.00% 92.50% 92.50% 92.50%
AC CURRENT (Typ.) 0.76A / 347VAC 0.56A / 480VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth= 532 s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4unit(circuit breaker of type B) / 6units(circuit breaker of type C) at 480VAC
LEAKAGE CURRENT <0.75mA / 480VAC
PROTECTION SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 360-394V 240-263V 180-197V 144-158V 120-131.4 90-99V 72-79V
Shut down o/p voltage with re-power on to recovery
OVER TEMPERATURE Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +90(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750 (type”HL”), CSA C22.2 No. 250.13-12, IEC/BS EN/EN61347-1,IEC/BS EN/EN61347-2-13, BS EN/EN62384 independent EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to FCC Part 15 Subpart B, BS EN/EN55015, BS EN/EN61000-3-2(at load>=80%), BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 1769.1K hrs min. Telcordia SR-332 (Bellcore) ; 145.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 254.2*68*38.8mm (L*W*H)
PACKING 1.35Kg; 12pcs/17.2Kg/0.78CUFT

Meanwell HVGC-240 Series Features

l  Wide input range 180 ~ 528VAC

l  Constant Current mode output

l  Metal housing with Class I design

l  Built-in active PFC function

l  IP67/IP65 design for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming

l  Typical lifetime>50000 hours

l  5 years warranty

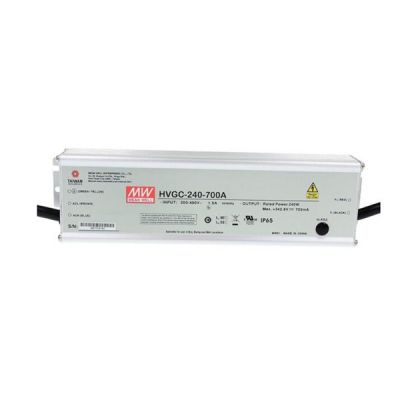

Meanwell HVGC-240 series price and datasheet 240W Constant Current mode AC DC LED Driver Power supply HVGC-240 A B AB D type IP65 IP67 for LED lighting ycict

Meanwell HVGC-240 Series Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  Type HL" for use in Class I, Division 2 hazardous (Classified) location

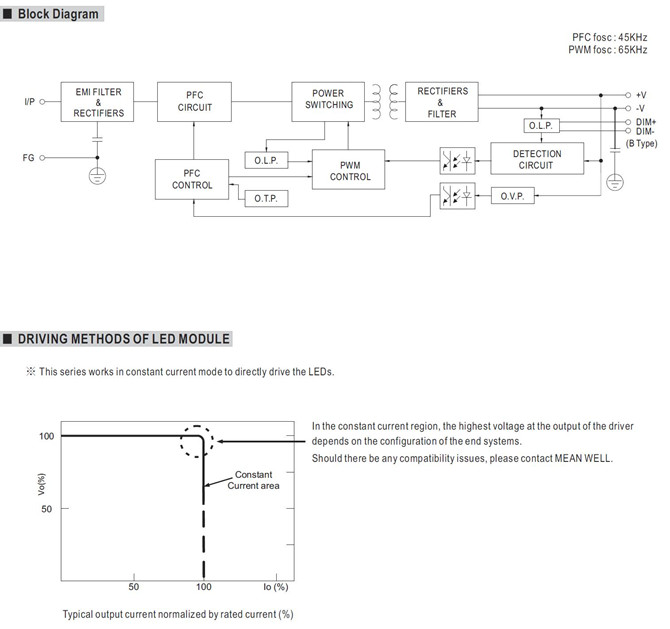

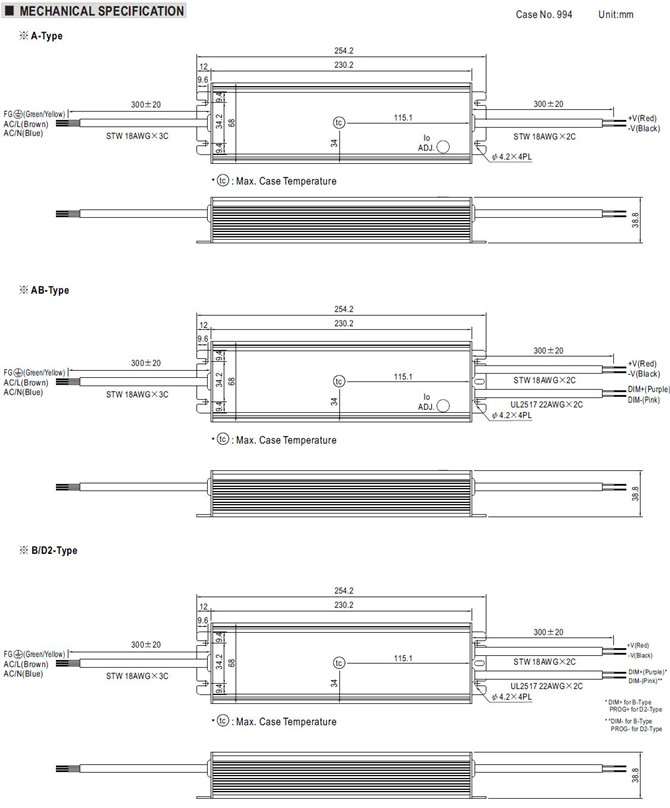

Meanwell HVGC-240 Series Mechanical Diagram

Meanwell HVGC-240 series price and datasheet 240W Constant Current mode AC DC LED Driver Power supply HVGC-240 A B AB Dx D2 type IP65 IP67 LED lighting ycict
