HVGC-150-1400
48.17

HVGC-150-1400

$48.17

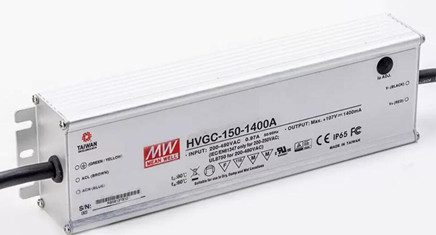

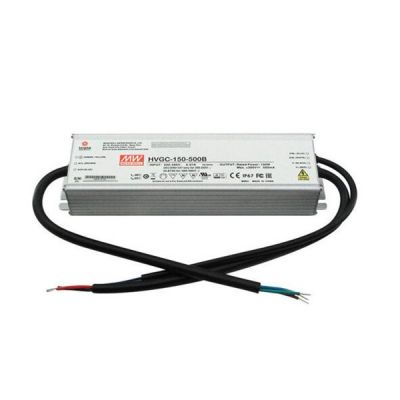

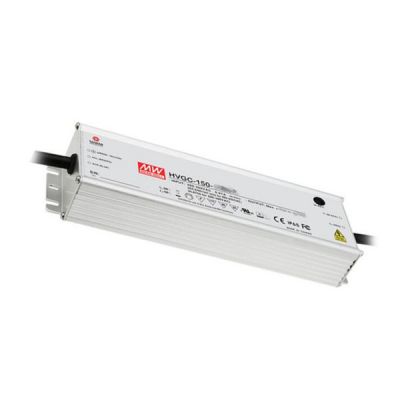

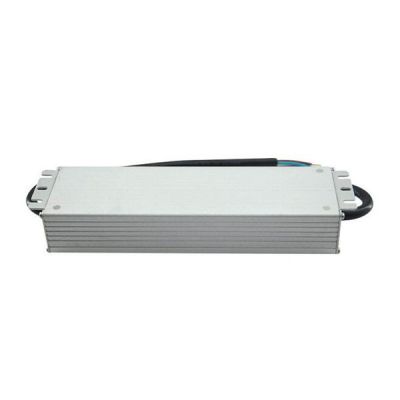

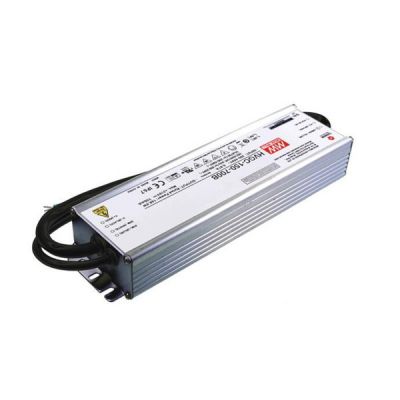

Meanwell 150W Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell HVGC-150-1400
Brand Meanwell
Details

Meanwell HVGC-150-1400 is 150W AC/DC LED power supply with 1400mA149.8W12-107V840-1400mA±5.0%180~528VAC 254VDC~747VDC47~63Hz. It provides constant current mode and high voltage output, and could work from 1 80~528VAC. At the same time, the product is supplied with rated current 1400mA. The model has four types: A B AB D IP65 and IP67 respectively Since the efficiency reaches high up to 91% under fanless design, HVGC-150-1400 is able to operate for -40℃ ~ +80℃ case temperature through free air convection. Additionally, the metal design housing and IP67/IP65 ingress protection level allow it to satisfy both indoor and outdoor applications. Besides them, the item is equipped with various function options such as dimming methodologies. As a result of its longevity, high reliability and excellent quality, Meanwell HVGC-150-1400 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HVGC-150-1400 price and specs 150w Constant Current LED Driver Power supply HVGC-150 A B AB D IP65 IP67 YCICT

Meanwell HVGC-150-1400 Encoding

HVGC Series Name
150 Rated Wattage
1400 Rated Output Current (350/500/700/1050/1400mA)
A Function options
Type IP Level Function Note
A IP65 lo adjustable through built-in potentiometer In stock
B IP67 3 in1dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details (safety pending) By Request

Meanwell HVGC-150-1400 Specifications

Model HVGC-150-1400
OUTPUT RATED CURRENT 1400mA
RATED POWER 149.8W
CONSTANT CURRENT REGION 12-107V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
840-1400mA
CURRENT RIPPLE 8.0% max. @rated current
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms / 230Vac 400ms / 347VAC,480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC)
EFFICIENCY (Typ.) 90.00%
AC CURRENT (Typ.) 0.5A / 347VAC 0.38A / 480VAC
INRUSH CURRENT(Typ.) COLD START 35A(twidth=790μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC
LEAKAGE CURRENT <0.75mA / 480VAC
PROTECTION SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 113-124V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +80 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 245*68*38.8mm (L*W*H)
PACKING 1.24Kg; 12pcs/15.9Kg/0.78CUFT

Meanwell HVGC-150-1400 Features

l  5 years warranty

l  Constant Current mode output

l  Metal housing with Class I design

l  Built-in active PFC function

l  Wide input range 180 ~ 528VAC

l  Typical lifetime> 50000 hours

l  IP67/IP65 design for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming

Meanwell HVGC-150-1400 price and specs Constant Current LED Driver Power supply HVGC-150-1400 A B AB D IP65 IP67 YCICT

Meanwell HVGC-150-1400 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  Type HL" for use in Class I, Division 2 hazardous (Classified) location

Meanwell HVGC-150-1400 Mechanical Diagram

Meanwell HVGC-150-1400 price and specs Constant Current LED Driver Power supply HVGC-150-1400 A B AB D IP65 IP67 YCICT

Meanwell HVGC-150-1400 price and specs Constant Current LED Driver Power supply HVGC-150-1400 A B AB D IP65 IP67 YCICT
