HVGC-150-1050
47.83
Details

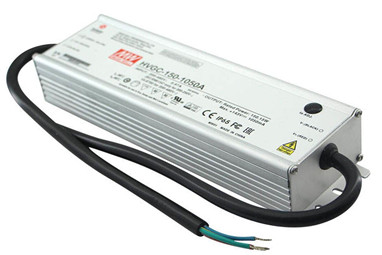

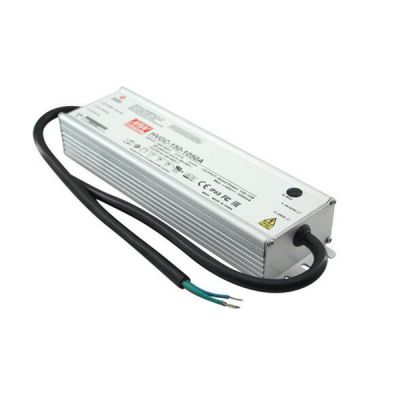

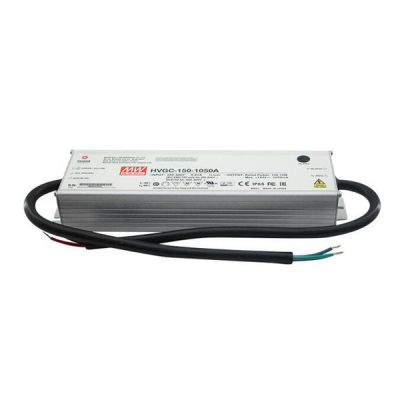

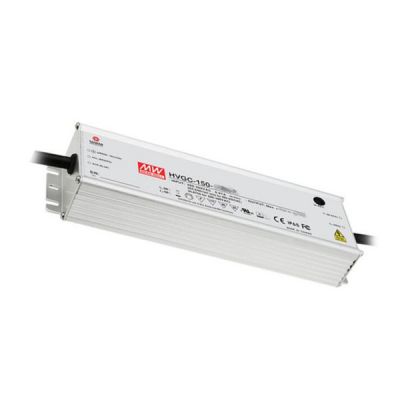

Meanwell HVGC-150-1050 is 150W AC/DC LED power supply with 1050mA150.15W15-143V630-1050mA±5.0%180~528VAC254VDC~747VDC47~63Hz. It offers constant current mode and high voltage output, and works from 180~528VAC. Meanwhile, the item is equipped with rated current 1050mA. The model has four types: A B AB D IP65 and IP67 respectively. With the efficiency reaching high up to 91% under fanless design, HVGC-150-1050 is able to operate for -40℃ ~ +80℃ case temperature through free air convection. Besides them, the metal design housing and IP67/IP65 ingress protection level permit it to fit both indoor and outdoor applications. Moreover, the product is provided with various function options such as dimming methodologies. As a result of its longevity, high reliability and excellent quality, Meanwell HVGC-150-1050 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVGC-150-1050 Encoding
| HVGC | Series Name |
| 150 | Rated Wattage |
| 1050 | Rated Output Current (350/500/700/1050/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in1dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By Request |
Meanwell HVGC-150-1050 Specifications
| Model | HVGC-150-1050 □ | |
| OUTPUT | RATED CURRENT | 1050mA |
| RATED POWER | 150.15W | |
| CONSTANT CURRENT REGION | 15-143V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 630-1050mA | ||
| CURRENT RIPPLE | 8.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms / 230Vac 400ms / 347VAC,480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.95/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.5A / 347VAC 0.38A / 480VAC | |
| INRUSH CURRENT(Typ.) | COLD START 35A(twidth=790μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURRENT | <0.75mA / 480VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 151-165V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, FCC part 15 class B, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1755.7K hrs min. Telcordia SR-332 (Bellcore) ; 179.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 245*68*38.8mm (L*W*H) | |
| PACKING | 1.24Kg; 12pcs/15.9Kg/0.78CUFT | |
Meanwell HVGC-150-1050 Features
l Wide input range 180 ~ 528VAC
l 5 years warranty
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 50000 hours
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVGC-150-1050 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l Type HL" for use in Class I, Division 2 hazardous (Classified) location
Meanwell HVGC-150-1050 Mechanical Diagram
