HVG-65-48
40.97

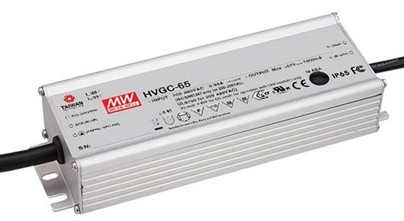

HVG-65-48

$40.97

Meanwell 65W Constant Voltage and Constant Current LED Driver with 48V28.8-48V1.36A65.3W300mVp-p43-53V0.81-1.36A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HVG-65-48
Brand Meanwell
Details

Meanwell HVG-65-48 is a 65W AC/DC LED driver with 48V28.8-48V1.36A65.3W300mVp-p43-53V0.81-1.36A±1.0%±0.5%±0.5%. It offers dual mode constant voltage and constant current output. And the unit can work from 180~ 528VAC with rated voltage 48V. Since the efficiency reaches high up to 90% under no fan design, HVG-65-48 is able to operate for -40℃ ~ +80℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allow it to meet both indoor and outdoor applications. Moreover, the product is supplied with various function options such as dimming methodologies. Due to its longevity, high efficiency and excellent reliability, Meanwell HVG-65-48 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

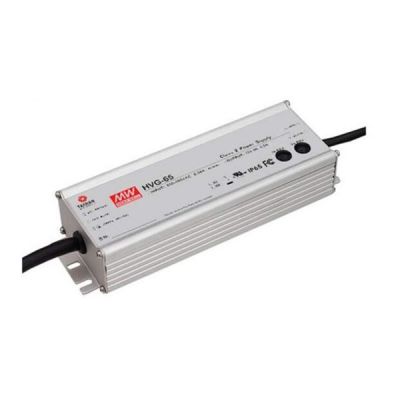

Meanwell HVG-65-48 price and specs Constant Voltage and Constant Current AC DC LED Driver HVG-65-48A B AB D ycict

Meanwell HVG-65-48 Encoding

HVG Series Name
65 Rated Wattage
48 Rated Output Voltage ( 12/15/20/24/30/36/42/48/54v)
A Function options
Type IP Level Function Note
A IP65 lo and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Built-in Smart timer dimming function by user request By Request

Meanwell HVG-65-48 Specifications

Model HVG-65-48
OUTPUT DC VOLTAGE 48V
CONSTANT CURRENT REGION 28.8-48V
RATED CURRENT 1.36A
RATED POWER 65.3W
RIPPLE & NOISE (max.) 300mVp-p
VOLTAGE ADJ. RANGE Adjustable for A-Type only (via the built-in potentiometer)
43-53V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
0.81-1.36A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC
HOLD UP TIME (Typ.) 16ms / 347VAC 30ms / 480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC)
EFFICIENCY (Typ.)  90.00%
AC CURRENT 0.22A / 347VAC 0.18A / 480VAC
INRUSH CURRENT (Typ. ) COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
LEAKAGE CURR ENT <0.75mA / 480VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 54-60V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +80(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 Class C (at load>=60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25)
DIMENSION 189*61.5*36.8mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.89CUFT

Meanwell HVG-65-48 Features

l  Wide input range 180 ~ 528VAC

l  Typical lifetime> 50000 hours

l  5 years warranty

l  Constant Voltage and Constant Current mode output

l  Metal housing with Class I design

l  Built-in active PFC function

l  Class 2 power unit

l  IP67 / IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming

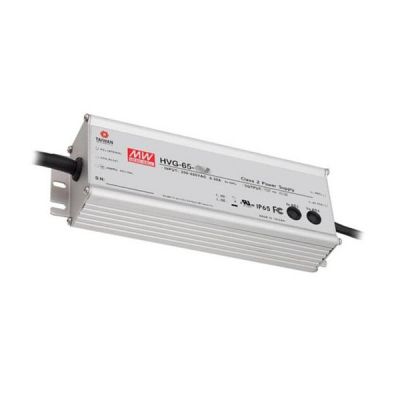

Meanwell HVG-65-48 price and specs Constant Voltage Constant Current LED Driver Power supply HVG-65-48A B AB D ycict

Meanwell HVG-65-48 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

Meanwell HVG-65-48 Mechanical Diagram

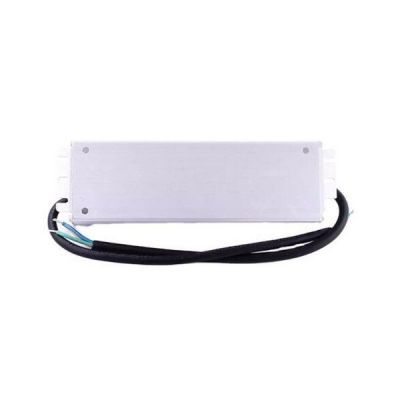

Meanwell HVG-65-48 price and specs Constant Voltage Constant Current AC DC LED Driver HVG-65-48A B AB D ycict

Meanwell HVG-65-48 price and specs Constant Voltage Constant Current AC DC LED Driver HVG-65-48A B AB D ycict
