HVG-65-30
40.32

HVG-65-30

$40.32

Meanwell 65W Constant Voltage and Constant Current LED Driver with 30V18-30V2.17A65.1W200mVp-p27-33V1.3-2.17A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HVG-65-30
Brand Meanwell
Details

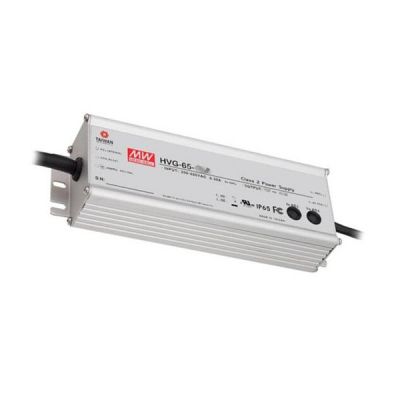

Meanwell HVG-65-30 is a 65W AC/DC LED driver with 30V18-30V2.17A65.1W200mVp-p27-33V1.3-2.17A±1.0%±0.5%±0.5%. It offers dual mode constant voltage and constant current output. and operates from 180~ 528VAC with rated voltage 30V. Since the efficiency reaches high up to 90% under no fan design, HVG-65-30 could work for -40℃ ~ +80℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allow to meet both indoor and outdoor applications. Additionally, the model is supplied with various function options such as dimming methodologies. As a result of its longevity, high efficiency and excellent reliability, Meanwell HVG-65-30 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HVG-65-30 price and datasheet Constant Voltage Constant Current AC DC LED Driver HVG-65-30A B AB D ycict

Meanwell HVG-65-30 Encoding

HVG Series Name
65 Rated Wattage
30 Rated Output Voltage ( 12/15/20/24/30/36/42/48/54v)
A Function options
Type IP Level Function Note
A IP65 lo and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Built-in Smart timer dimming function by user request By Request

Meanwell HVG-65-30 Specifications

Model HVG-65-30
OUTPUT DC VOLTAGE 30V
CONSTANT CURRENT REGION 18-30V
RATED CURRENT 2.17A
RATED POWER 65.1W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE Adjustable for A-Type only (via the built-in potentiometer)
27-33V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
1.3-2.17A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 80ms /230VAC 400ms, 80ms /347VAC, 480VAC
HOLD UP TIME (Typ.) 16ms / 347VAC 30ms / 480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/230VAC, PF>=0.97/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/230VAC, 277VAC, 347VAC; at load>=75%/480VAC)
EFFICIENCY (Typ.)  89.00%
AC CURRENT 0.22A / 347VAC 0.18A / 480VAC
INRUSH CURRENT (Typ. ) COLD START 25A(twidth=420μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
LEAKAGE CURR ENT <0.75mA / 480VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 3V-38V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +80(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 Class C (at load>=60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 2170.5K hrs min. Telcordia SR-332 (Bellcore) ; 208.0K hrs min. MIL-HDBK-217F (25)
DIMENSION 189*61.5*36.8mm (L*W*H)
PACKING 0.77Kg; 18pcs/14.9Kg/0.89CUFT

Meanwell HVG-65-30 Features

l  5 years warranty

l  Class 2 power unit

l  Built-in active PFC function

l  Typical lifetime> 50000 hours

l  Metal housing with Class I design

l  Wide input range 180 ~ 528VAC

l  IP67 / IP65 rating for indoor or outdoor installations

l  Constant Voltage and Constant Current mode output

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming

Meanwell HVG-65-30 price and specs Constant Voltage Constant Current LED Driver power supply HVG-65-30A B AB D ycict

Meanwell HVG-65-30 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

Meanwell HVG-65-30 Mechanical Diagram

Meanwell HVG-65-30 price and specs Constant Voltage Constant Current AC DC LED Driver HVG-65-30A B AB D ycict

Meanwell HVG-65-30 price and specs Constant Voltage Constant Current AC DC LED Driver HVG-65-30A B AB D ycict
