HVG-100-30
45.26
Details

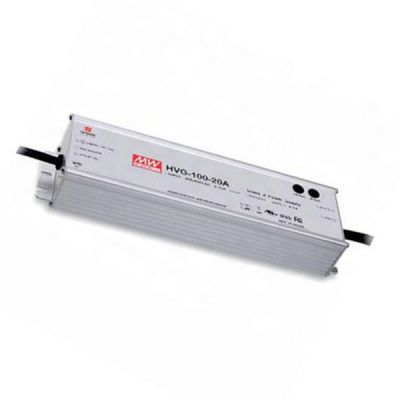

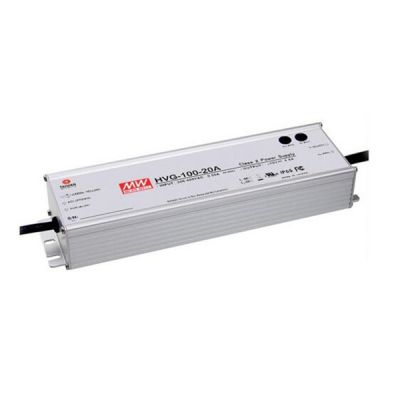

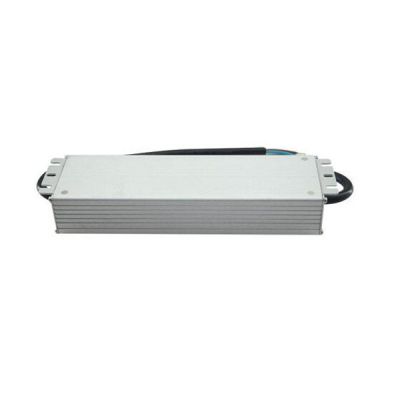

Meanwell HVG-100-30 is a 100W AC/DC LED driver with 30V15-30V3.2A96W200mVp-p27-33V1.76-3.2A±1.0%±0.5%±0.5%. The unit stands out with dual mode constant voltage and constant current output, and work from 180~528VAC. It is also equipped with rated voltage 30V. As the efficiency high goes up to 91% via no fan design, HVG-100-30 is able to operate for -40℃ ~ +90℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP 65 ingress protection level allow it to fit both indoor and outdoor applications. Furthermore, the product is provided with various function options such as dimming methodologies. In view of its longevity, high quality and excellent reliability, Meanwell HVG-100-30 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HVG-100-30 Encoding
| HVG | Series Name |
| 100 | Rated Wattage |
| 30 | Rated Output Voltage (15/20/24/30/36/42/48/54v) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Built-in Smart timer dimming function by user request | By Request |
Meanwell HVG-100-30 Specifications
| Model | HVG-100-30 | |
| OUTPUT | DC VOLTAGE | 30V |
| CONSTANT CURRENT REGION | 15-30V | |
| RATED CURRENT | 3.2A | |
| RATED POWER | 96W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 27-33V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) | |
| 1.76-3.2A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 80ms /230VAC, 347VAC, 480VAC | |
| HOLD UP TIME (Typ.) | 30ms/347VAC, 480VAC | |
| Input | VOLTAGE RANGE | 180 ~ 528VAC 254VDC ~ 747VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC [at load>=60% only for 15V model]; at load>=75%/480VAC) | |
| EFFICIENCY (Typ.) | 91.00% | |
| AC CURRENT | 0.38A / 347VAC 0.28A / 480VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 25A(twidth=900μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC | |
| LEAKAGE CURR ENT | <0.75mA / 480VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 34V-38V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved |
| WITHSTAND VOLTAGE | UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55015, EN61000-3-2 Class C (at load>=50% load,at load>=60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 236*68*38.8mm (L*W*H) | |
| PACKING | 1.18Kg; 12pcs/15.2Kg/0.74CUFT | |
Meanwell HVG-100-30 Features
l 5 years warranty
l Class 2 power unit
l Wide input range 180 ~ 528VAC
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime> 50000 hours
l Constant Voltage + Constant Current mode output
l IP67 1 IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming
Meanwell HVG-100-30 Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type "HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HVG-100-30 Mechanical Diagram
