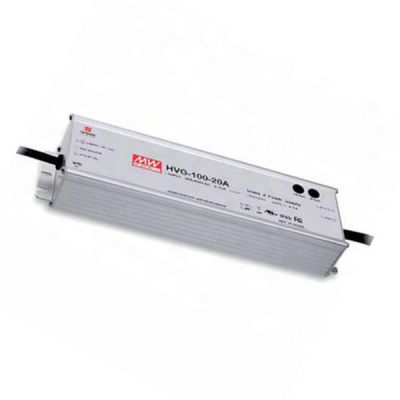

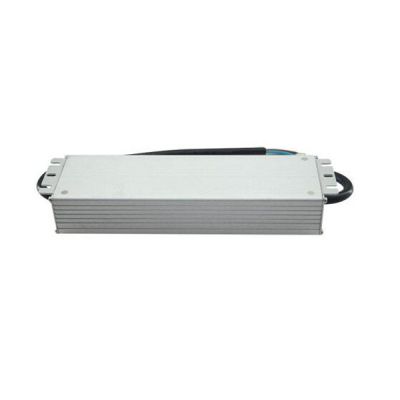

HVG-100-15
44.68

HVG-100-15

$44.68

Meanwell 100W Constant Voltage and Constant Current LED Driver with 15V9-15V5A75W150mVp-p13.5-17V2.75-5A±2.0%±0.5%±1.5%

- +
Availability:In stock
SKU Meanwell HVG-100-15
Brand Meanwell
Details

Meanwell HVG-100-15 is a 100W AC/DC LED driver with 15V9-15V5A75W150mVp-p13.5-17V2.75-5A±2.0%±0.5%±1.5%. The product features dual mode constant voltage and constant current output. Meanwhile, it could operate from 180~528VAC and offer model with rated voltage 15V. As the efficiency reaches high up to 91% via no fan design, HVG-100-15 is able to work for -40℃ ~ +90℃ case temperature under free air convection.  Additionally, the metal housing design and IP67/IP 65 ingress protection level allow it to meet both indoor and outdoor applications. Moreover, the item is equipped with various function options such as dimming methodologies. Thanks to its longevity, high quality and excellent reliability, Meanwell HVG-100-15 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HVG-100-15 price and specs Constant Voltage Constant Current 100W LED Driver HVG-100-15 A B AB D ycict

Meanwell HVG-100-15 Encoding

HVG Series Name
100 Rated Wattage
15 Rated Output Voltage (15/20/24/30/36/42/48/54v)
A Function options
Type IP Level Function Note
A IP65 lo and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Built-in Smart timer dimming function by user request By Request

Meanwell HVG-100-15 Specifications

Model HVG-100-15
OUTPUT DC VOLTAGE 15V
CONSTANT CURRENT REGION 9-15V
RATED CURRENT 5A
RATED POWER 75W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
13.5-17V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via the built-in potentiometer)
2.75-5A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.5%
SETUP, RISE TIME 500ms, 80ms /230VAC, 347VAC, 480VAC
HOLD UP TIME (Typ.) 30ms/347VAC, 480VAC
Input VOLTAGE RANGE 180 ~ 528VAC 254VDC ~ 747VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/230VAC, PF>=0.98/277VAC, PF>=0.97/347VAC, PF>=0.93/480VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=50%/230VAC, 277VAC, 347VAC [at load>=60% only for 15V model]; at load>=75%/480VAC)
EFFICIENCY (Typ.)  89.00%
AC CURRENT 0.38A / 347VAC 0.28A / 480VAC
INRUSH CURRENT (Typ. ) COLD START 25A(twidth=900μ s measured at 50% Ipeak) at 480VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 480VAC
LEAKAGE CURR ENT <0.75mA / 480VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 18-21V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved
WITHSTAND VOLTAGE UL8750(type”HL”), CSA C22.2 No. 250.0-08, EAC TP TC 004, IP65 or IP67 approved
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to EN55015, EN61000-3-2 Class C (at load>=50% load,at load>=60% only for 15V model) ; EN61000-3-3, FCC Part 15 Subpart B,EAC TP TC 020
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 1810.5K hrs min. Telcordia SR-332 (Bellcore) ; 174.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 236*68*38.8mm (L*W*H)
PACKING 1.18Kg; 12pcs/15.2Kg/0.74CUFT

Meanwell HVG-100-15 Features

l  Typical lifetime> 50000 hours

l  5 years warranty

l  Wide input range 180 ~ 528VAC

l  Constant Voltage + Constant Current mode output

l  Metal housing with Class I design

l  Built-in active PFC function

l  Class 2 power unit

l  IP67 1 IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Timer dimming

Meanwell HVG-100-15 price and datasheet Constant Voltage Constant Current AC DC LED Driver HVG-100-15 A B AB D ycict

Meanwell HVG-100-15 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type "HL" for use in Class I , Division 2 hazardous (Classified) location

Meanwell HVG-100-15 Mechanical Diagram

Meanwell HVG-100-15 price and specs Constant Voltage Constant Current 100W AC DC LED Driver HVG-100-15 A B AB D ycict

Meanwell HVG-100-15 price and specs Constant Voltage Constant Current 100W AC DC LED Driver HVG-100-15 A B AB D ycict
