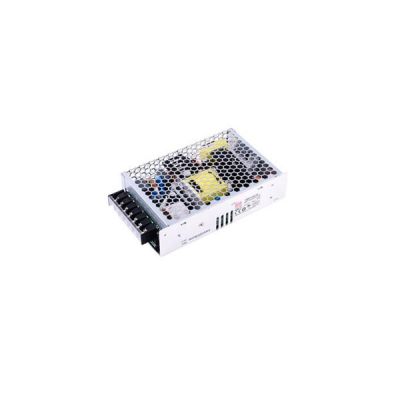

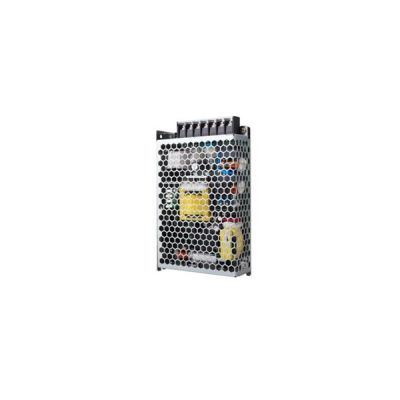

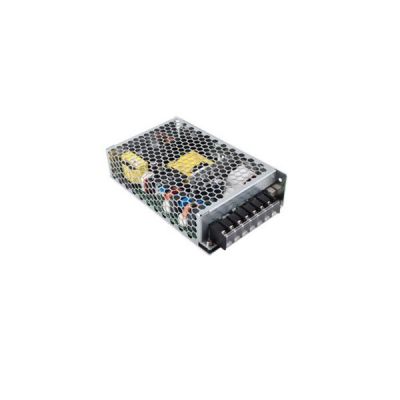

HRPG-150-15
43.13

HRPG-150-15

$43.13

Meanwell 150W Single Output with PFC Function and 15V10A0-10A150W15013.5-18V±1.5%±0.3%±0.5%

- +
Availability:In stock
SKU Meanwell HRPG-150-15
Brand Meanwell
Details

Meanwell HRPG-150-15 is 150 W Single Output with PFC Function and 15V10A0-10A150W, which highlights 1U low profile 38mm and Cooling by free air convection. This is a new generation of green and environmentally friendly power supply, highlighting Universal AC input/Full range and high efficiency up to 89%. Moreover, it is equipped with Built-in constant current limiting circuit and Built-in remote sense & ON-OFF control. In addition, it has multiple protection types such as short circuit, overload, over voltage and Over temperature. Due to its high efficiency, high reliability and long longevity. Meanwell HRPG-150-15 is a suitable power supply solution for various applications.

Meanwell HRPG-150-15 Specifications

Meanwell HRPG-150-15 Specifications

Model HRPG-150-15
Output DC VOLTAGE 15V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER W 150W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 13.5-18V
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.3%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME  16ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.99/115VAC at full load
EFFICIENCY (Typ.)  87.00%
AC CURRENT (Typ.) 1.7A/115VAC 0.9A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 70A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 18.8-21.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION 5V STANDBY 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.)
REMOTE CONTROL RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.04%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2,heavy industry level,criteria A,EAC TP TC 020
Others MTBF 213.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 159*97*38mm (L*W*H)
PACKING 0.61Kg; 24pcs/15.6Kg/0.9CUFT

Meanwell HRPG-150-15 Features

l  Universal AC input/Full range

l  Built-in active PFC function, PF>0.95

l  High efficiency up to 88%

l  Cooling by free air convection

l  Built-in constant current limiting circuit

l  1U low profile 38mm

l  Built-in remote ON-OFF control

l  Stand by 5V@0.3A

l  Built-in remote sense function

l  No load power consumption<0.5W

l  5 years warranty

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell HRPG-150 series certificate ycict

Meanwell HRPG-150-15 Mechanical Diagram

Meanwell HRPG-150 series mechanical diagram ycict
