HRP-75-7.5
29.48
Details

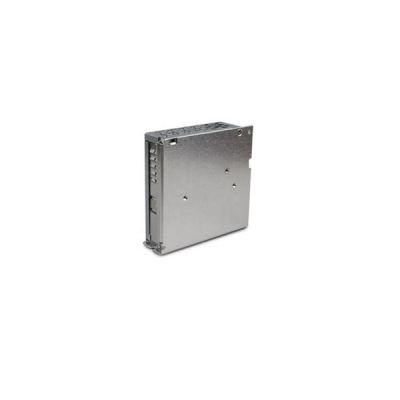

Meanwell HRP-75-7.5 is 75W Single Output with PFC Function and 7.5V10A0-10A75W, Height only 38mm and natural air cooling. The unit is a new generation of green and environmentally friendly power, featured with high power factor and low no-load loss, and it is also offered with remote detection remote control and constant current limiting functions. HRP-75-7.5 complies with international universal full range AC input with active PFC Function, and can withstand 300VAC surge input for 5 seconds. What’s more, HRP-75 has multiple protection modes like short circuit, overload and overvoltage. In view of high efficiency, high reliability and long longevity. Meanwell HRP-75-7.5 is suitable for a wide range of applications.
Meanwell HRP-75-7.5 Specifications
| Model | HRP-75-7.5 | |
| Output | DC VOLTAGE | 7.5V |
| RATED CURRENT | 10A | |
| CURRENT RANGE | 0-10A | |
| RATED POWER W | 75W | |
| RIPPLE & NOISE (max.) mVp-p | 100 | |
| VOLTAGE ADJ. RANGE | 7.1-9V | |
| VOLTAGE TOLERANCE | ±2.5% | |
| LINE REGUL ATION | ±1% | |
| LOAD REGULATION | ±1.5% | |
| SETUP, RISE TIME | 1800ms, 25ms/230VAC 1800ms, 25ms/115VAC at full load | |
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.9/230VAC PF>0.95/115VAC at full load | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 0.9A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 65A/230VAC | |
| LEAKAGE CURR ENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 9.4-10.9V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level, criteria A,EAC TP TC 020 | |
| Others | MTBF | 394.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 129*98*38mm (L*W*H) | |
| PACKING | 0.47Kg; 30pcs/ 15Kg/ 0.97CUFT | |
Meanwell HRP-75-7.5 Featuresa
l 5 years warranty
l 1U low profile 38mm
l Cooling by free air convection
l Built-in remote ON-OFF control
l No load power consumption<0.5W
l Universal AC input/Full range
l Built-in active PFC function
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Protections/Over temperature (optional)
l All using 105℃ long life electrolytic capacitors
Meanwell HRP-75-7.5 Mechanical Diagram
