HRP-75-48
31.69

HRP-75-48

$31.69

Meanwell 75W Single Output with PFC Function and 48V1.6A0-1.6A76.8W24045-55.2V±1.5%±0.2%±0.5%

- +
Availability:In stock
SKU Meanwell HRP-75-48
Brand Meanwell
Details

Meanwell HRP-75-48 is 75W Single Output with PFC Function and 48V1.6A0-1.6A76.8W, Height only1U 38mm and natural air cooling. This is a new generation of green and environmentally friendly power supply, highlighting high power factor and low no-load loss. Besides, it is equipped with remote detection remote control and constant current limiting functions. And also complies with international universal full range AC input with active PFC Function. This model can withstand 300VAC surge input for 5 seconds. In addition, HRP-75-36 has multiple protection modes such as short circuit, overload and overvoltage, all using 105°C long-life capacitors. Thanks to its high efficiency, high reliability and long longevity. Meanwell HRP-75-48 is suitable for a wide range of applications.

Meanwell HRP-75-48 Specifications

Meanwell HRP-75-48 Specifications

Model HRP-75-48
Output DC VOLTAGE 48V
RATED CURRENT 1.6A
CURRENT RANGE 0-1.6A
RATED POWER W 76.8W
RIPPLE & NOISE (max.) mVp-p 240
VOLTAGE ADJ. RANGE 45-55.2V
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.2%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1800ms, 25ms/230VAC 1800ms, 25ms/115VAC at full load
HOLD UP TIME  50ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.9/230VAC PF>0.95/115VAC at full load
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 65A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 57.6-67.2V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level, criteria A,EAC TP TC 020
Others MTBF 394.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 129*98*38mm (L*W*H)
PACKING 0.47Kg; 30pcs/ 15Kg/ 0.97CUFT

Meanwell HRP-75-48 Features

l  5 years warranty

l  1U low profile 38mm

l  Built-in active PFC function

l  Cooling by free air convection

l  Built-in remote ON-OFF control

l  Universal AC input/Full range

l  No load power consumption<0.5W

l  Protections/Over temperature (optional)

l  Withstand 300V AC surge input for 5 seconds

l  All using 105℃ long life electrolytic capacitors

l  Protections: Short circuit/Overload/Over voltage

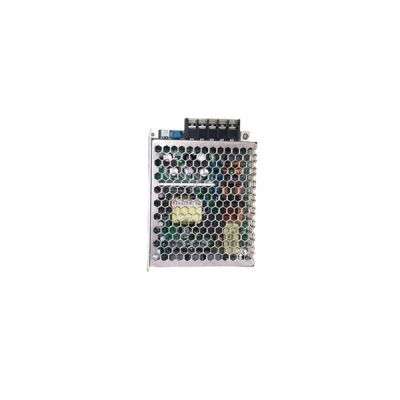

Meanwell HRP-75 series ycict

Meanwell HRP-75-48 Mechanical Diagram

Meanwell HRP-75 YCICT
