HRP-75-15
30.15

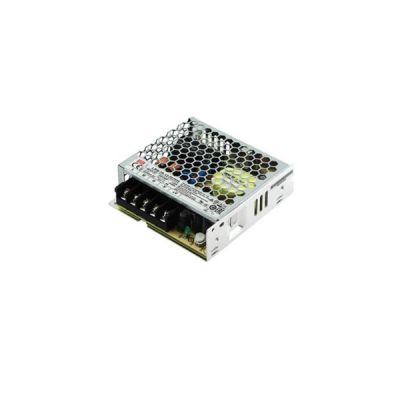

HRP-75-15

$30.15

Meanwell 75W Single Output with PFC Function and 15V5A0-5A75W15014.2-18V±1.5%±0.3%±0.5%

- +
Availability:In stock
SKU Meanwell HRP-75-15
Brand Meanwell
Details

Meanwell HRP-75-15 is 75W Single Output with PFC Function and 15V5A0-5A75W, Height only 1U and natural air cooling. It is a new generation of green and environmentally friendly power supply highlighting high power factor and low no-load loss. HRP-75 is also equipped with remote detection remote control and constant current limiting functions. What’s more, HRP-75-7.5 complies with international universal full range AC input with active PFC Function, and could withstand 300VAC surge input for 5 seconds. Besides, HRP-75 gives multiple protection modes such as short circuit, overload and overvoltage. Because of its high efficiency, high reliability and long longevity. Meanwell HRP-75-15 is suitable for a wide range of applications.

Meanwell HRP-75-15 Specifications

Meanwell HRP-75-15 Specifications

Model HRP-75-15
Output DC VOLTAGE 15V
RATED CURRENT 5A
CURRENT RANGE 0-5A
RATED POWER W 75W
RIPPLE & NOISE (max.) mVp-p 150
VOLTAGE ADJ. RANGE 14.2-18V
VOLTAGE TOLERANCE ±1.5%
LINE REGUL ATION ±0.3%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 1800ms, 25ms/230VAC 1800ms, 25ms/115VAC at full load
HOLD UP TIME  50ms/230VAC 20ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.9/230VAC PF>0.95/115VAC at full load
EFFICIENCY (Typ.)  88.00%
AC CURRENT (Typ.) 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ. ) 35A/115VAC 65A/230VAC
LEAKAGE CURR ENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Constant current limiting, switch to hiccup mode for Vo<50% of rated voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 18.8-21.8V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL RC+ / RC-: 0 ~ 0.8V = power on ; 4 ~ 10V = power off
ENVIRONMENT WORKING TEMP -40 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1,TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2,heavy industry level, criteria A,EAC TP TC 020
Others MTBF 394.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 129*98*38mm (L*W*H)
PACKING 0.47Kg; 30pcs/ 15Kg/ 0.97CUFT

Meanwell HRP-75-15 Features

l  Universal AC input/Full range

l  Built-in active PFC function

l  Withstand 300V AC surge input for 5 seconds

l  Protections: Short circuit/Overload/Over voltage

l  Protections/Over temperature (optional)

l  Cooling by free air convection

l  1U low profile 38mm

l  Built-in remote ON-OFF control

l  No load power consumption<0.5W

l  All using 105℃ long life electrolytic capacitors

l  5 years warranty

Meanwell HRP-75 series ycict

Meanwell HRP-75 Series Mechanical Diagram

Meanwell HRP-75 YCICT
