HLN-80H-36
29.71

HLN-80H-36

$29.71

Meanwell 80W Single Output Switching Power Supply with 36V21.6-36V2.3A82.8W200mVp-p33-40V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLN-80H-36
Brand Meanwell
Details

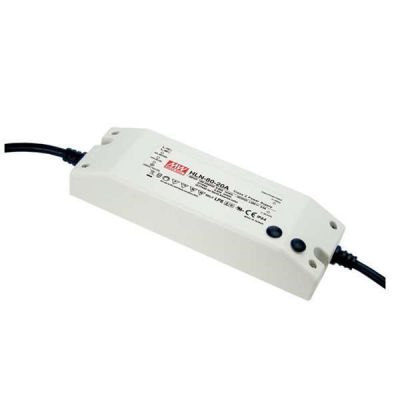

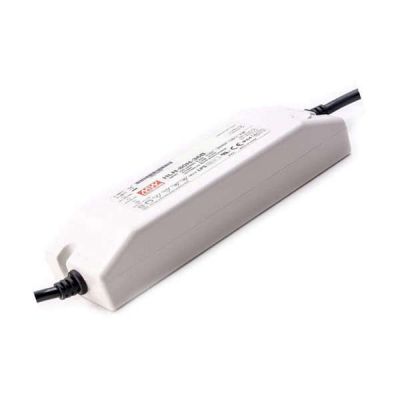

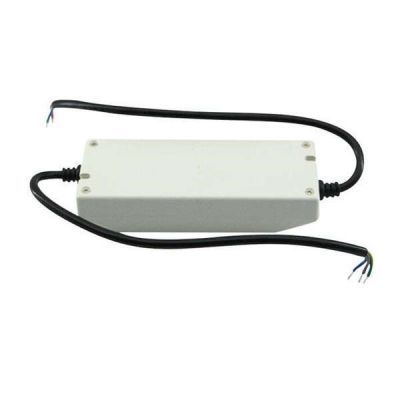

Meanwell HLN-80H-36 is 80W Single Output Switching Power Supply with 36V21.6-36V2.3A82.8W200mVp-p33-40V. The product highlights dustproof and waterproof plastic shell, and has wide input voltage range of 90~305VAC, which is used in general 115VAC or 230VAC areas, but also suitable for 277VAC power systems in North America. The built-in two-stage active PFC function satisfies the requirements of EN61000-3-2 Class C (under 60% load) for EU harmonic interference limit for lighting products, and PF>0.9 limit above 60% load. What’s more, HLN-80H-36 is able to withstand industrial-grade instantaneous lightning surge 4KV (EN61000-4-5). With the efficiency high up to 91%, the power supply can only use natural air cooling heat dissipation to work at -40℃~+50℃. It is equipped with various protection like short circuit, overload, over voltage, and over temperature, and is also certified with UL/CUL/TUV/CB/CE and other international certifications including UL8750, EN61347-2-13. Because of its longevity, high efficiency, and excellent quality, Meanwell HLN-80H-36 is ideally suitable for LED indoor lighting, LED electronic billboards, LED decorative power supplies, LED stage lights, etc.

Meanwell HLN-80H-36 Price and Specs Output Switching Power Supply HLN-80H-12/15/20/24/30/36/42/48/54 80W IP64 YCICT

Meanwell HLN-80H-36 Specifications

Model HLN-80H-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 21.6-36V
RATED CURRENT 2.3A
RATED POWER 82.8W
RIPPLE & NOISE (max.) 200mVp-p
VOLTAGE ADJ. RANGE 33-40V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer A type only
1.38-2.3A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP TIME 1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
HOLD UP TIME (Typ.) 16ms at full load 230VAC /115VAC
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 91.00%
AC CURRENT (Typ.) 0.85A/115VAC 0.425A/230VAC 0.4A/277VAC
INRUSH CURRENT(Typ.) COLD START 70A(twidth=485μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 41-49V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -40 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
  SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent ; IP64, EAC TP TC 004,GB19510.1,GB19510.14 approved ; Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=60% load, 12V model >=65% load) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), criteria B, EAC TP TC 020
Others MTBF 2786.8K hrs min. Telcordia SR-332(Bellcore) ; 316.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 181*61.5*35mm (L*W*H)
PACKING 0.5Kg; 24pcs/13Kg/0.87CUFT
HLN-80H-12A
A: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.

Meanwell HLN-80H-36 Features

l  3 years warranty

l  Class 2 power unit

l  Built-in active PFC function

l  Cooling by free air convection

l  Fully isolated plastic case with IP64 level

l  Universal AC input/Full range (up to 305VAC)

l  Compliance to worldwide safety regulations for lighting

l  Suitable for dry/damp locations or outdoor application

l  OCP point adjustable through output cable or internal potentiometer

l  Three in one dimming function (1~10Vdc or PWM signal or resistance)

l  Suitable for LED lighting, Industrial Lighting and moving sign applications

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell HLN-80H-36 Price and specs 80W Output Switching Power Supply HLN-80H-12/15/20/24/30/36/42/48/54 PFC IP64 YCICT

Meanwell HLN-80H-36 Mechanical Diagram

Meanwell HLN-80H-36 Price and specs Output Switching Power Supply HLN-80H-12/15/20/24/30/36/42/48/54 80W PFC IP64 YCICT

Meanwell HLN-80H-36 Price and datasheet Output Switching Power Supply HLN-80H-12/15/20/24/30/36/42/48/54 80W PFC YCICT
