HLN-40H-24
22.38

HLN-40H-24

$22.38

Meanwell 40W Single Output Switching Power Supply with 24V14.4-24V1.67A40.1W150mVp-p22-27V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLN-40H-24
Brand Meanwell
Details

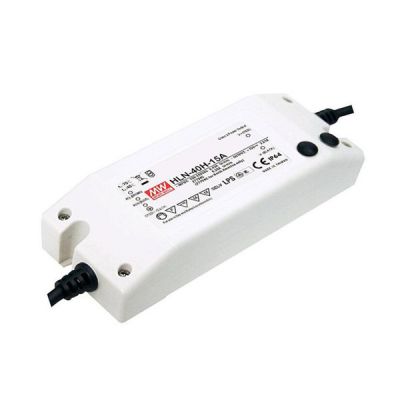

Meanwell HLN-40H-24 is 40W Single Output Switching Power Supply with 24V14.4-24V1.67A40.1W150mVp-p22-27V. The unit offers wide input voltage range of 90~305VAC, which can be used in the general 115VAC or 230VAC area, but also suitable for 277VAC power system in North America. The built-in two-stage active PFC function satisfies the requirements of EN61000-3-2 Class C (under 60% load) of the EU harmonic interference limit, and PF> 0.9 limit above 60% load. In addition, HLN-40H-24 could withstand industrial-grade instantaneous lightning surge 4KV (EN61000-4-5). Since the efficiency reaches high up to 89%, it can only use natural air cooling heat dissipation to operate at -40°C ~+50°C. Moreover, the model is equipped with various protection such as short circuit, overload, over voltage, and over temperature. It is also certified with UL/CUL/TUV/CB/CE and other international certifications including UL8750, EN61347-2-13. In view of its longevity, high efficiency, and excellent reliability, Meanwell HLN-40H-24 is ideal for LED indoor lighting, LED electronic billboards, LED decorative power supplies, LED stage lights, etc.

Meanwell HLN-40H-24 Price and Specs 40W Output Switching Power Supply HLN-40H-12/15/20/24/30/36/42/48/54 IP64 YCICT

Meanwell HLN-40H-24 Specifications

Model HLN-40H-24
OUTPUT DC VOLTAGE 24V
CONSTANT CURRENT REGION 14.4-24V
RATED CURRENT 1.67A
RATED POWER 40.1W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE 22-27V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer A type only
1-1.6A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP TIME 500ms, 80ms at full load 230VAC / 115VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION  THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75% at 277VAC input
EFFICIENCY (Typ.) 88.00%
AC CURRENT (Typ.) 0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 28-35V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -40 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
 SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08 , BS EN/EN 61347-1, BS EN/EN 61347-2-13 independent, IP64, EAC TP TC 004,GB19510.1,GB19510.14 approved ; design refer to UL60950-1, BS EN/EN60335-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=60% load) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020
Others MTBF 3396.4K hrs min. Telcordia SR-332(Bellcore) ; 346.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 161*61.5*35mm (L*W*H)
PACKING 0.35Kg;32pcs/12.2Kg/1.10CUFT
HLN-40H-12A
A: IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.

Meanwell HLN-40H-24 Features

l  3 years warranty

l  Class 2 power unit

l  Built-in active PFC function

l  Cooling by free air convection

l  Compliance to worldwide safety regulations for lighting

l  Suitable for dry/damp locations or outdoor application

l  OCP point adjustable through output cable or internal potentiometer

l  Fully isolated plastic case with IP64 level

l  Universal AC input/Full range (up to 305VAC)

l  Three in one dimming function (1~ 10Vdc or PWM signal or resistance)

l  Suitable for LED lighting, Industrial Lighting and moving sign applications

l  Protections: Short circuit/Over current/Over voltage/Over temperature

Meanwell HLN-40H-24 Price and specs 40W Output Switching Power Supply HLN-40H-12/15/20/24/30/36/42/48/54 PFC IP64 YCICT

Meanwell HLN-40H-24 Mechanical Diagram

Meanwell HLN-40H-24 Price and specs 40W Output Switching Power Supply HLN-40H-12/15/20/24/30/36/42/48/54 Class 2 YCICT

Meanwell HLN-40H-24 Price and datasheet 40W Output Switching Power Supply HLN-40H-12/15/20/24/30/36/42/48/54 PFC YCICT
