HLG-320H-36
75.61

HLG-320H-36

$75.61

Meanwell 320W Constant Voltage and Constant Current LED Driver with 36V18-36V8.9A320.4W250mVp-p32-39V4.45-8.9A±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HLG-320H-36
Brand Meanwell
Details

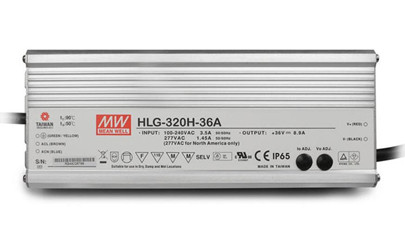

Meanwell HLG-320H-36 is a 320W AC/DC L ED driver with 36V18-36V8.9A320.4W250mVp-p32-39V4.45-8.9A±1.0%±0.5%±0.5%. It offers dual mode constant voltage and constant current output, and work from 90 ~ 305VAC. The model is equipped with rated voltage 36V. Since the efficiency reaches high up to 94% and no fan design, HLG-320H-36 could operate for -40℃ ~ +90℃ case temperature under free air convection. Besides them, the metal housing design and IP67/IP65 ingress protection level permit it to fit both indoor and outdoor applications. Moreover, the product is equipped with various function options such as dimming methodologies. Because of its longevity, high efficiency and excellent reliability, Meanwell HLG-320H-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.Meanwell HLG-320H-36 HLG-320H Led driver price and specs HLG-320H-36A HLG-320H-36B HLG-320H-36AB HLG-320H-36C HLG-320H-36D YCICT

Meanwell HLG-320H-36 Encoding

HLG Series Name
320H Rated Wattage
36 Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1 ~1OVDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3in 1 dimming function (1~10Vdc, 10V PWM signal and resistance ) In Stock
C ---- Terminal block for I/O connection. Output voltage and constant currentlevel can be adjusted through internal potentiometer. By Request
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-320H-36 Specifications

Model HLG-320H-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 18-36V
RATED CURRENT 8.9A
RATED POWER 320.4W
RIPPLE & NOISE (max.) 250mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/C-Type only (via built-in potentiometer)
32-39V
CURRENT ADJ. RANGE Adjustable for A/AB/C-Type only (via built-in potentiometer)
4.45-8.9A
VOLTAGE TOLERANCE ±1.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 2500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.) 15ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.94/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.) (230Vac) 94.50%
EFFICIENCY (Typ.) (277Vac) 95.00%
AC CURRENT (Typ.) 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 70A(twidth=1010μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 40-46V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +90 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase= +90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent;
GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type),
EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ;
BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity
Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 1702.2K hrs min. Telcordia SR-332 (Bellcore) ; 157.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 252*90*43.8mm (L*W*H)
PACKING 1.88Kg; 8pcs/16Kg/0.92CUFT

Meanwell HLG-320H-36 Features

l  lP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming

l  Typical lifetime > 62000 hours

l  7 years warranty

l  Constant Voltage and Constant Current mode output

l  Metal housing with class I design

l  Built-in active PFC function

Meanwell HLG-320H-36 HLG-320H Led driver price and specs HLG-320H-36A HLG-320H-36B HLG-320H-36AB HLG-320H-36C HLG-320H-36D YCICT

Meanwell HLG-320H-36 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I , Division 2 hazardous (Classified) location

Meanwell HLG-320H-36 Mechanical Diagram

Meanwell HLG-320H-36 HLG-320H AC DC Led driver price and specs HLG-320H-36A HLG-320H-36B HLG-320H-36AB HLG-320H-36C HLG-320H-36D

Meanwell HLG-320H-36 HLG-320H AC DC Led driver price and specs HLG-320H-36A HLG-320H-36B HLG-320H-36AB HLG-320H-36C HLG-320H-36D
