HLG-185H-C1400
39.03
Details

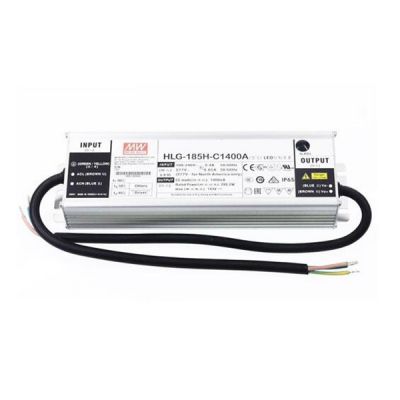

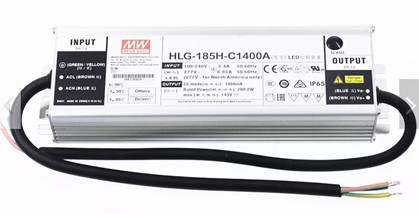

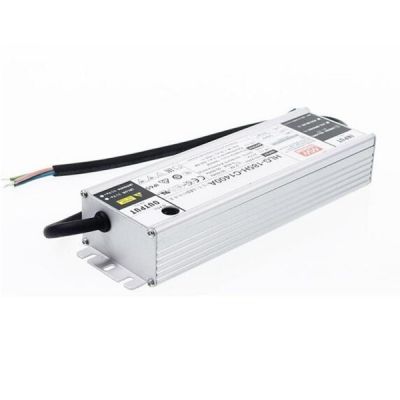

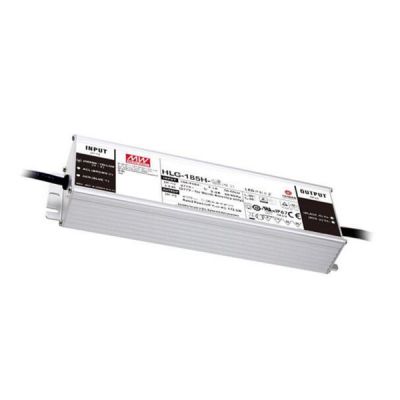

Meanwell HLG-185H-C1400 is a 200W AC/DC LED power supply with 1400mA200.2W71-143W700-1400mA±5%1000ms/115VAC 500ms/230VAC. The model provides constant current mode and high voltage output. In addition, it is able to work from 90~305VAC with rated current 1400mA. Since the efficiency reaches high up to 94% under no fan design, HLG-185H-C1400 is able to operate for -40℃ ~ +90℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level make it possible to fit both indoor and outdoor applications. Besides them, the product is equipped with various function options such as dimming methodologies. As a result of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-185H-C1400 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-185H-C1400 Encoding
| HLG | Series Name |
| 185 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1400 | Rated output current ( 500/700mA/1050mA/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in pote ntiometer & 3 in 1 dimming function (1 ~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details (safety pending) | By request |
Meanwell HLG-185H-C1400 Specifications
| Model | HLG-185H-C1400 □ | |
| OUTPUT | RATED CURRENT | 1400mA |
| RATED POWER | 200.2W | |
| CONSTANT CURRENT REGION | 71-143W | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer (A/AB type only) | |
| 700-1400mA | ||
| CURRENT RIPPLE | 5.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms/115VAC 500ms/230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC or PF>=0.96/230VAC or PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% at>=50% load/115VAC, or 230VAC, or at>=75% load/277VAC | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 2A / 115VAC 1A / 230VAC 0.85A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=900 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 160-170V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Refer to "Derating Curve") |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB19510.1,GB19510.14;IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (>=50% load) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, heavy industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2458.6K hrs min. Telcordia SR-332 (Bellcore) ; 191.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 228*68*38.8mm (L*W*H) | |
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT | |
Meanwell HLG-185H-C1400 Features
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime>62000 hours
l 7 years warranty
l IP67/IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming
Meanwell HLG-185H-C1400 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED building architectural lighting
l LED bay lighting
Meanwell HLG-185H-C1400 Mechanical Diagram
