HLG-120H-C500
35.38

HLG-120H-C500

$35.38

Meanwell 150W Constant Current Mode LED Driver with 500mA150W150V-300V250-500mA±5%1000ms/115VAC500ms/230VAC47~63Hz

- +
Availability:In stock
SKU Meanwell HLG-120H-C500
Brand Meanwell
Details

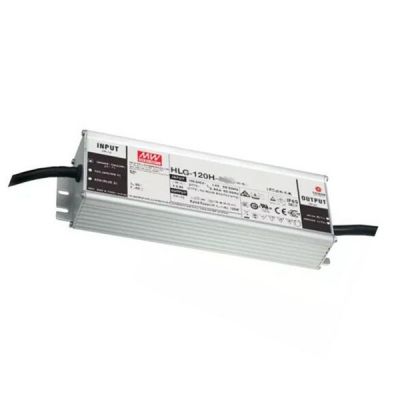

Meanwell HLG-120H-C500 is a 150W AC/DC LED driver with 500mA150W150V-300V250-500mA±5%1000ms/115VAC500ms/230VAC47~63Hz. The item highlights constant current mode and high voltage output. Meanwhile, it could work from 90~305VAC with rated current 500mA. Since the high efficiency reaches up to 94% and no fan design, HLG-120H-C500 is able to operate for -40℃ ~ +90℃ case temperature under free air convection. Furthermore, the metal housing design and IP67/IP65 ingress protection level make it possible to satisfy both indoor and outdoor applications. Moreover, the unit is equipped with various function options such as dimming methodologies. Thanks to its long lifetime, high efficiency and excellent reliability, Meanwell HLG-120H-C500 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HLG-120H-C500 price and datasheet AC DC LED DRIVER POWER SUPPLY HLG-120H-C500 A/B/AB/D led lighting ycict

Meanwell HLG-120H-C500 Encoding

HLG Series Name
120 Rated Wattage
H High input voltage up to 305VAC
C500 Rated output current ( 350/700mA/1050mA/1400mA)
A Function options
Type IP Level Function Note
A IP65 lo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) In stock
AB IP65 Io adjustable through built-in pote ntiometer & 3 in 1 dimming function (1 ~10Vdc, 10V PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending) By request

Meanwell HLG-120H-C500 Specifications

Model HLG-120H-C500
OUTPUT RATED CURRENT 500mA
RATED POWER 150W
CONSTANT CURRENT REGION 150V-300V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
250-500mA
CURRENT RIPPLE 8.0% max. at rated current
CURRENT TOLERANCE ±5%
SET UP TIME 1000ms / 115VAC 500ms / 230VAC
Input VOLTAGE RANGE 90~305VAC 127~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.93/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=50% /115VAC, 230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.) 94.00%
AC CURRENT (Typ.) 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=600 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 335-355V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-40 ~ +90(Please refer to "OUTPUT LOAD vs TEMPERATURE" section
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent,GB19510.1, GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 220*68*38.8mm (L*W*H)
PACKING 1.04Kg; 12pcs/13.5Kg/0.8CUFT

Meanwell HLG-120H-C500 Features

l  7 years warranty

l  Constant Current mode output

l  Metal housing with Class I design

l  Built-in active PFC function

l  Typical lifetime>62000 hours

l  IP67 1 IP65 design for indoor or outdoor installations

l  Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming

Meanwell HLG-120H-C500 price and specs AC DC LED DRIVER POWER SUPPLY HLG-120H-C500 A/B/AB/D ycict

Meanwell HLG-120H-C500 Applications

l  LED street lighting

l  LED fishing lamp

l  LED harbor lighting

l  LED building architectural lighting

l  LED greenhouse lighting

l  LED bay lighting

Meanwell HLG-120H-C500 Mechanical Diagram
