HLG-120H-C1050
35.91
Details

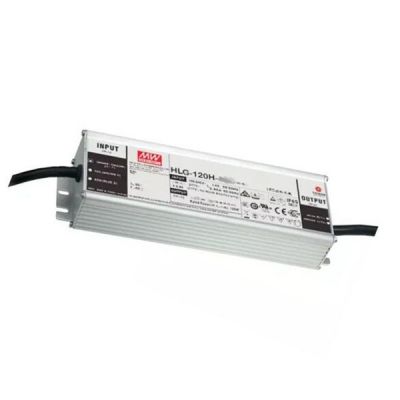

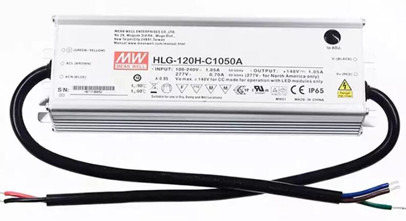

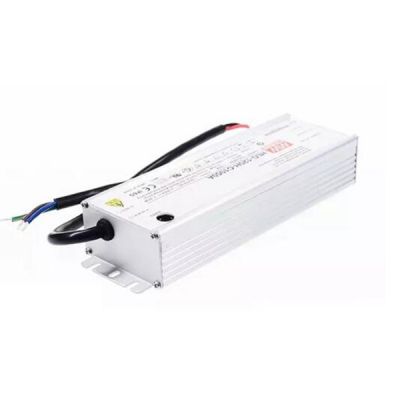

Meanwell HLG-120H-C1050 is a 150W AC/DC LED driver with 1050mA155.4W74-148V525-1050mA±5%1000ms/115VAC500ms/230VAC47~63Hz. The model outstands constant current mode and high voltage output, and works from 90~305VAC. It is provided with rated current 1050mA. Since high efficiency reaches up to 94% under no fan design, HLG-120H-C1050 could operate for -40℃ ~ +90℃ case temperature under free air convection. Apart from them, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. Moreover, the item is equipped with various function options such as dimming methodologies. In view of its long lifetime, high efficiency and excellent reliability, Meanwell HLG-120H-C1050 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-120H-C1050 Encoding
| HLG | Series Name |
| 120 | Rated Wattage |
| H | High input voltage up to 305VAC |
| C1050 | Rated output current ( 350/700mA/1050mA/1400mA) |
| A | Function options |
| Type | IP Level | Function | Note |
| A | IP65 | lo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io adjustable through built-in pote ntiometer & 3 in 1 dimming function (1 ~10Vdc, 10V PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending) | By request |
Meanwell HLG-120H-C1050 Specifications
| Model | HLG-120H-C1050□ | |
| OUTPUT | RATED CURRENT | 1050mA |
| RATED POWER | 155.4W | |
| CONSTANT CURRENT REGION | 74-148V | |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |
| 525-1050mA | ||
| CURRENT RIPPLE | 8.0% max. at rated current | |
| CURRENT TOLERANCE | ±5% | |
| SET UP TIME | 1000ms / 115VAC 500ms / 230VAC | |
| Input | VOLTAGE RANGE | 90~305VAC 127~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.98/115VAC, PF>=0.96/230VAC, PF>=0.93/277VAC at full load | |
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% /115VAC, 230VAC; at load>=75%/277VAC) | |
| EFFICIENCY (Typ.) | 94.00% | |
| AC CURRENT (Typ.) | 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=600 s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 165-175V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section |
| MAX. CASE TEMP | Tcase=+90℃ | |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent,GB19510.1, GB19510.14, IP65 or IP67, J61347-1, J61347-2-13(for A type only), EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020 | |
| Others | MTBF | 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*68*38.8mm (L*W*H) | |
| PACKING | 1.04Kg; 12pcs/13.5Kg/0.8CUFT | |
Meanwell HLG-120H-C1050 Features
l Constant Current mode output
l Metal housing with Class I design
l Built-in active PFC function
l Typical lifetime>62000 hours
l 7 years warranty
l IP67 1 IP65 design for indoor or outdoor installations
l Function options: output adjustable via potentiometer ; 3 in 1 dimming; Timer dimming
Meanwell HLG-120H-C1050 Applications
l LED street lighting
l LED fishing lamp
l LED harbor lighting
l LED building architectural lighting
l LED greenhouse lighting
l LED bay lighting
Meanwell HLG-120H-C1050 Mechanical Diagram
