HLG-120H-12
64.38

HLG-120H-12

$64.38

Meanwell 120W Constant Voltage and Constant Current LED Driver with 12V6-12V10A120W150mVp-p10.8-13.5V5-10A±2.5%±0.5%±2.0%

- +
Availability:In stock
SKU Meanwell HLG-120H-12
Brand Meanwell
Details

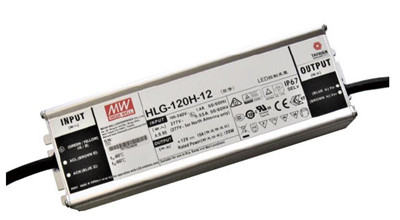

Meanwell HLG-120H-12 is a 120W AC/DC LED driver with 12V6-12V10A120W150mVp-p10.8-13.5V5-10A±2.5%±0.5%±2.0%. The product features dual mode constant voltage and constant current output. At the same time, it is able to operate from 90 ~ 305VAC and offers the model with rated voltage 12V. As the high efficiency reaches up to 93.5% and no fan design, HLG-120H-12 could work for -40℃ ~ +80℃ case temperature under free air convection. Moreover, the metal housing design and IP67/IP65 ingress protection level allow it to fit both indoor and outdoor applications. Additionally, the item is provided with various function options such as dimming methodologies. Thanks to its longevity, high efficiency and excellent reliability, Meanwell HLG-120H-12 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HLG-120H-12 power supply HLG-120H price and specs HLG-120H-12A HLG-120H-12B HLG-120H-12AB HLG-120H-12D YCICT

Meanwell HLG-120H-12 Encoding

HLG Series Name
120H Rated Wattage
12 Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) In Stock
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-120H-12 Specifications

Model HLG-120H-12
OUTPUT DC VOLTAGE 12V
CONSTANT CURRENT REGION 6-12V
RATED CURRENT 10A
RATED POWER 120W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
10.8-13.5V
CURRENT ADJ. RANGE Adjustable for A/AB-Type only (via built-in potentiometer)
5-10A
VOLTAGE TOLERANCE ±2.5%
LINE REGULATION ±0.5%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.) 12ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>=0.95/230VAC, PF>=0.93/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.)  92.00%
AC CURRENT 1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 60A(twidth=375 s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 14-17V
Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +80 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase=+80
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13,AS/NZS 61347-1(except for AB-type),
AS/NZS 61347-2-13(except for AB-type) independent;GB19510.1,GB19510.14,IP65 or IP67, J61347-1, J61347-2-13(except for B,
AB and D-type),BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004,KC61347-1,KC61347-2-13(except for D-type) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020
Others MTBF 2185.8K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 220*68*38.8mm (L*W*H)
PACKING 1.12Kg; 12pcs/14.4Kg/0.8CUFT

Meanwell HLG-120H-12 Features

l  Constant Voltage + Constant Current mode output

l  Metal housing with class I design

l  Typical lifetime > 62000 hours

l  7 years warranty

l  Built-in active PFC function

l  IP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming

Meanwell HLG-120H-12 Features Meanwell HLG-120H-12 price and specs ac dc led driver 120w power supply ycict

Meanwell HLG-120H-12 Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I , Division 2 hazardous (Classified) location

Meanwell HLG-120H-12 Mechanical Diagram

Meanwell HLG-120H-12 Mechanical Diagram HLG-120H price and specs HLG-120H-12A HLG-120H-12B HLG-120H-12AB HLG-120H-12D YCICT
