HEP-600-36
200.15

HEP-600-36

$200.15

Meanwell 600W Switching Power Supply for Harsh Environment with 36V16.7A601.2W250mVp-p30.6-37.8V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell HEP-600-36
Brand Meanwell
Details

Meanwell HEP-600-36 is a 600W industrial AC/DC power supply with 36V16.7A601.2W250mVp-p30.6-37.8V. The model features the powerful capability to operate under highly humid, dusty, oily, and high-vibration harsh environments. Apart from it, it is housed with the aluminum case and fully potted with heat-conducted silicone. Due to the state-of-the-art design, the working efficiency can reach up to 96%, which assures it to work perfectly  between -40℃ and +70℃ under free air convection. Furthermore, HEP-600-36 Is able to withstand 10G vibration test, and Output voltage and output current can be adjusted via internalpotentiometer. At the same time, HEP-600-36 provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Because of the high efficiency, high reliability and long longevity, Meanwell HEP-600-36 is a high performance solution for various industrial applications

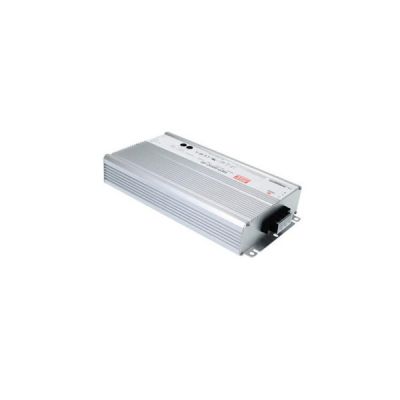

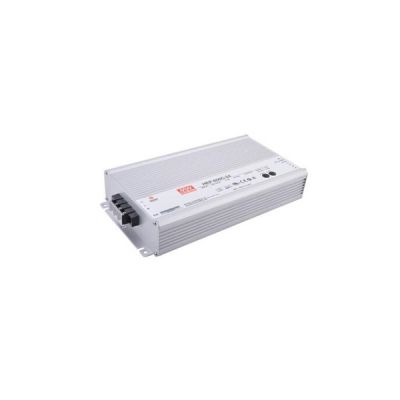

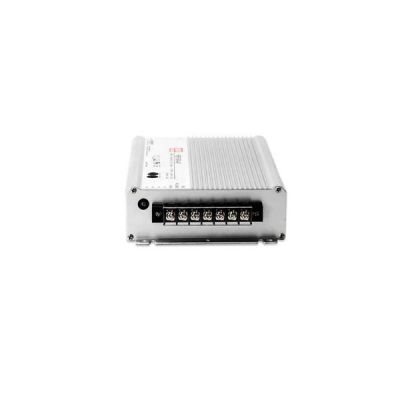

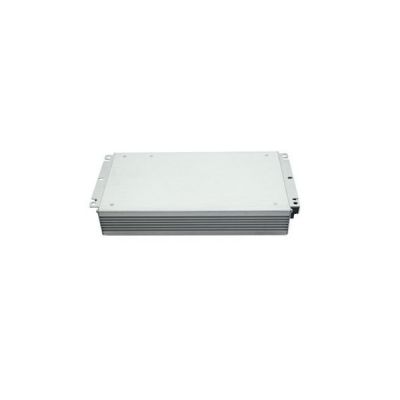

Meanwell HEP-600-36

Meanwell HEP-600-36 Encoding

HEP Series Name
600 Out Wattage
36 Output Voltage

Meanwell HEP-600-36 Specifications

Model HEP-600-36
OUTPUT DC VOLTAGE 36V
RATED CURRENT 16.7A
RATED POWER 601.2W
RIPPLE & NOISE (max.) 250mVp-p
VOLTAGE ADJ. RANGE 30.6-37.8V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer
8.3-16.7A
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 500ms, 80ms at full load 230VAC /115VAC
HOLD UP TIME (Typ.) 15ms at full load 230VAC /115VAC
INPUT VOLTAGE RANGE 85~264VAC(277VAC operational) 120~370VDC(390VDC operational)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.) 95.5%
AC CURRENT (Typ.) 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.) COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 105 ~ 125%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 39.5-43.5V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
FUNCTION REMOTE ON/OFF CONTROL  Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY  5VSB : 5V@0.5A ; tolerance±5%, ripple : 100mVp-p(max.)
ENVIRONMENT WORKING TEMP. -40 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Note.6,9 UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, EAC TP TC 020
OTHERS MTBF 76.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 280*144*48.5mm (L*W*H)
PACKING 3.9Kg; 4pcs/16Kg/0.9CUFT

Meanwell HEP-600-36 Features

l  6 years warranty

l  Built-in active PFC function

l  LED indicator for power on

l  Withstand 10G vibration test

l  High efficiency up to 96%

l  -40℃~ +70℃ wide operating range

l  Operating altitude up to 5000 meters

l  Fanless design, cooling by free air convection

l  No load power consumption <0.5W at remote OFF

l  Aluminum case and filling with heat-conducted glue

l  Universal AC input/Full range (up to 305 VAC)

l  Protections: Short circuit/Over current/Over voltage/Over temperature

l  Output voltage and output current can be adjusted through internalpotentiometer

Meanwell HEP-600-36

Meanwell HEP-600-36 Applications

l  Outdoor telecommunication equipment

l  Petroleum plant or mine shaft facility

l  Outdoor electronic signage and billboard

Meanwell HEP-600-36 Applications

Meanwell HEP-600-36 Mechanical Diagram

Meanwell HEP-600-36 Mechanical DiagramMeanwell HEP-600-36 Mechanical Diagram
