HLG-185H
64.68
Details

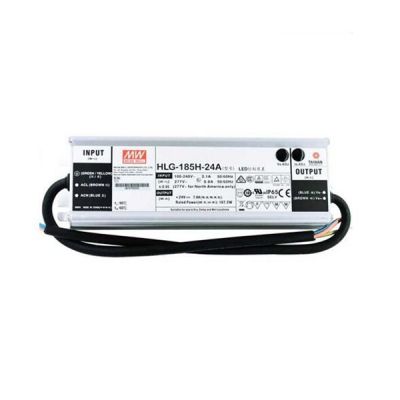

Meanwell HLG-185H Series is a 185W AC/DC LED driver highlighting the dual mode constant voltage and constant current output. At the same time, the entire series operates from 90 ~ 305 VAC and offers models with different rated voltage ranging between 12V and 54V. Since the high efficiency reaches up to 94 % and fanless design, HLG-185H Series is able to work for-40℃ ~ +90℃ case temperature under free air convection. What’s more, the design of metal housing and IP67/IP65 ingress protection level allow them to meet with both indoor and outdoor applications. Apart from them, the series is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent reliability, Meanwell HLG-185H Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell HLG-185H Series Encoding
| HLG | Series Name |
| 185H | Rated Wattage |
| 24 | Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V) |
| A | Function options |
| Type | IP Level | Function | Note |
| Blank | IP67 | Io and Vo fixed | In Stock |
| A | IP65 | Io and Vo adjustable through built-in potentiometer | In stock |
| B | IP67 | 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) | In stock |
| AB | IP65 | Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc,1OV PWM signal and resistance) | In Stock |
| D | IP67 | Timer dimming function, contact MEAN WELL for details(safety pending). | By Request |
Meanwell HLG-185H Series Model Specifications
| Model | HLG-185H-12 □ | HLG-185H-15 □ | HLG-185H-20 □ | HLG-185H-24 □ | HLG-185H-30 □ | HLG-185H-36 □ | HLG-185H-42 □ | HLG-185H-48 □ | HLG-185H-54 □ | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 6-12V | 7.5-15V | 10-20V | 12-24V | 15-30V | 18-36V | 21-42V | 24-48V | 27-54V | |
| RATED CURRENT | 13A | 11.5A | 9.3A | 7.8A | 6.2A | 5.2A | 4.4A | 3.9A | 3.45A | |
| RATED POWER | 156W | 172.5W | 186W | 187.2W | 186W | 187.2W | 184.8W | 187.2W | 186.3W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||||
| 10.8-13.5V | 13.5-17V | 17-22V | 22-27V | 27-33V | 33-40V | 38-46V | 43-53V | 49-58V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | |||||||||
| 6.5-13A | 5.75-11.5A | 4.65-9.3A | 3.9-7.8A | 3.1-6.2A | 2.6-5.2A | 2.2-4.4A | 1.95-3.9A | 1.72-3.45A | ||
| VOLTAGE TOLERANCE | ±2.5% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.5% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms,200ms/115VAC 500ms,200ms/230VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms / 115VAC, 230VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC) | |||||||||
| EFFICIENCY (Typ.) | 91.50% | 92.00% | 93.00% | 93.50% | 93.50% | 93.50% | 94.00% | 94.00% | 94.00% | |
| AC CURRENT 12V | 1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC | |||||||||
| AC CURRENT 15V ~ 54V | 2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC | |||||||||
| INRUSH CURRENT (Typ. ) | COLD START 65A(twidth=445μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 14-17V | 18-21V | 23-27V | 28-34V | 34-38V | 41-46V | 47-53V | 54-63V | 59-65V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||||||||
| ENVIRONMENT | WORKING TEMP | Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||||||
| MAX. CASE TEMP. | Tcase=+90℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”),CSA C22.2 No. 250.0-08;BS EN/EN 61347-1,BS EN/EN 61347-2-13，AS/NZS 61347-1(except for AB-type), AS/NZS 61347-2-13(except for AB-type) independent;GB19510.1,GB19510.14 ; IP65 or IP67; J61347-1, J61347-2-13(except for B, AB and D-type), EAC TP TC 004, KC61347-1,KC61347-2-13(except for D-type) approved |
||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020 | |||||||||
| Others | MTBF | 2184.8K hrs min. Telcordia SR-332 (Bellcore) ; 197.3K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 228*68*38.8mm (L*W*H) | |||||||||
| PACKING | 1.15Kg; 12pcs/14.8Kg/0.8CUFT | |||||||||
Meanwell HLG-185H Series Features
l Constant Voltage + Constant Current mode output
l Metal housing with class I design
l IP67 1 IP65 rating for indoor or outdoor installations
l Function options: output adjustable via potentiometer;3 in 1 dimming
l Typical lifetime > 62000 hours
l 7 years warranty
Meanwell HLG-185H Series Applications
l LED street lighting
l LED high-bay lighting
l Parking space lighting
l LED fishing lamp
l LED greenhouse lighting
l Type HL" for use in Class I , Division 2 hazardous (Classified) location
Meanwell HLG-185H Series Mechanical Diagram
