HEP-240-54
87.28
Details

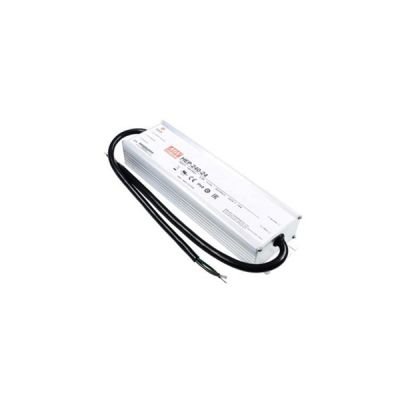

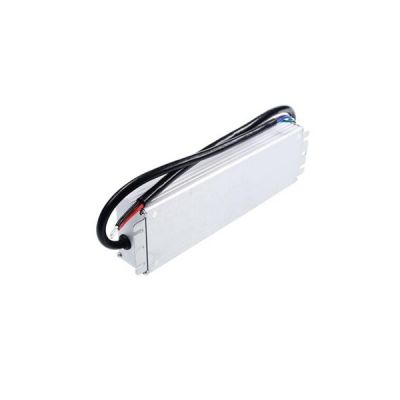

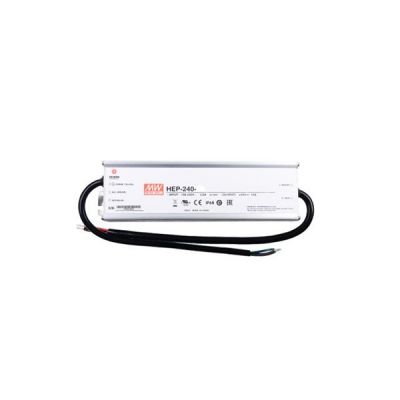

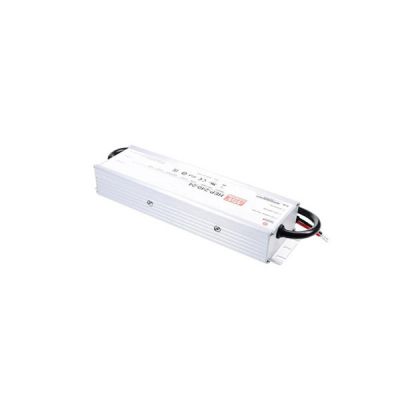

Meanwell HEP-240-54 is a 240W industrial AC/DC power supply with 54V4.45A240.3W350mVp-p50-57V. The model features the outstanding capability to work under a harsh environment with high dust density, humidity, vibration and altitude. Moreover, HEP-240-54 is housed with a robust aluminum case and fully potted with heat-conducted silicone. Due to the state-of-the-art design, the working efficiency can go up to 93.5%, which ensures it to operate perfectly between -55℃ and +70℃ under free air convection with no fan. In addition, Meanwell HEP-240-54 supplies the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Because of the high efficiency, high reliability and long longevity, Meanwell HEP-240-54 is a high performance solution for various industrial applications.
Meanwell HEP-240-54 Encoding
| HEP | Series Name | |
| 240 | Output Wattage | |
| 54 | Output Voltage | |
| A | Function Mode Option | A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer. |
| Blank : Optional model, IP68, with fixed Vo and lo level. | ||
Meanwell HEP-240-54 Specifications
| Model | HEP-240-54 | |
| OUTPUT | DC VOLTAGE | 54V |
| RATED CURRENT | 4.45A | |
| RATED POWER | 240.3W | |
| RIPPLE & NOISE (max.) | 350mVp-p | |
| VOLTAGE ADJ. RANGE | 50-57V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer for A type only | |
| 2.23-4.45A | ||
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms,80ms/115VAC 500ms,80ms/230VAC at full load | |
| HOLD UP TIME (Typ.) | 15ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 85~264VAC (277VAC operational) 120~370VDC(390VDC operational) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load | |
| EFFICIENCY (Typ.) | 93.5% | |
| AC CURRENT (Typ.) | 12V% 2A / 115VAC 1.05A / 230VAC 0.9A/277VAC | |
| 15V ~ 54V 2.5A / 115VAC 1.3A / 230VAC 1.1A/277VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 75A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER LOAD | 105 ~ 125% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 60-67V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -55 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -60 ~ +80℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | UL62368-1, IEC62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved; Design refer to BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 171.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 244.2*68*38.8mm (L*W*H) | |
| PACKING | 1.3Kg; 12pcs/16.6Kg/0.84CUFT | |
Meanwell HEP-240-54 Features
l 6 years warranty
l High efficiency up to 93.5%
l Built-in active PFC function
l Withstand 10G vibration test
l Meet 6KV surge immunity level
l -55℃~+70 ℃ wide operating range
l Operating altitude up to 5000 meters
l Universal AC input/Full range (up to 305VAC)
l Fanless design, cooling by free air convection
l IP65 design, optional IP68 rated model available
l Aluminum case and filling with heat-conducted silicone
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell HEP-240-54 Applications
l Outdoor electronic signage and billboard
l Outdoor telecommunication equipment
l Petroleum plant or mine shaft facility
Meanwell HEP-240-54 Mechanical Diagram
