HDR-150-12
23.16

HDR-150-12

$23.16

Meanwell 150W Ultra Slim Step Shape DIN Rail with 12V10.2A11.3A122.4W135.6W100mVp-p10.8-13.8V±2.0%±1.0%±1.0%

- +
Availability:In stock
SKU Meanwell HDR-150-12
Brand Meanwell
Details

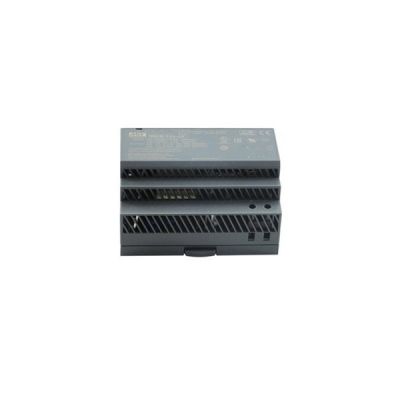

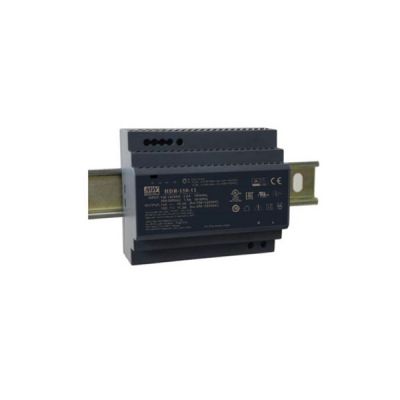

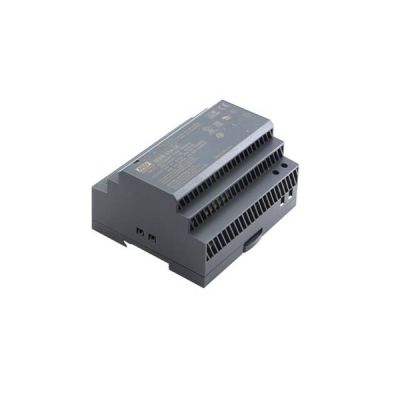

Meanwell HDR-150-12 is an economical ultra slim 1 50W DIN rail power supply with 1212V10.2A11.3A122.4W135.6W100mVp-p10.8-13.8V. This model adapts to be installed on TS-35/7.5or TS-35/1 5 mounting rails, and its body is designed 105mm(6SU) in width, which saves space inside the cabinets. Apart from them, HDR-150-12 also adopts the full range AC input from 85VAC to 264VAC (27 7VACoperational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. In addition, HDR-1 50-12 is designed with plastic housing, so that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, HDR-150-12 can work at the ambient temperature between -30 ℃ and 70 ℃ under air convection. Due to its complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL62368-1,UL61010, BS EN/EN61558-2-16), Meanwell HDR-150-12 is a very competitive power supply solution for household and industrial applications.

Meanwell HDR-150-12 Specifications

Meanwell HDR-150-12 Specifications

Model HDR-150-12
Output DC VOLTAGE 12V
RATED CURRENT 115VAC 10.2A
230VAC 11.3A
RATED POWER  115VAC 122.4W
230VAC 135.6W
RIPPLE & NOISE (max.)  100mVp-p
VOLTAGE ADJ. RANGE 10.8-13.8V
VOLTAGE TOLERANCE ±2.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 500ms, 6 0ms/230VAC 500ms, 6 0ms/115VAC at full load
HOLD UP TIME  30ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 2 6 4 VAC (277VAC operational ) 120 ~ 37 0 VDC (390VDC operational )
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 3A/115VAC 1.6A/230VAC
INRUSH CURRENT (Typ. ) COLD START 35A/115VAC 70A/230VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed
Constant current limiting within 50% ~ 100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE 14.2-16.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50) RH non-condensing
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE 2000 meters
OVER VOLTAGE CATEGORY ;According to EN62368,EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004 approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55024, BS EN/EN61000-6-2
Others MTBF 536K hrs min. MIL-HDBK-217F (25)
DIMENSION 105*90*54 .5mm (W*H*D)
PACKING 0.31Kg; 32pcs/11Kg/1.0CUFT

Meanwell HDR-150-12 Features

l  lsolation classⅱ

l  DC output voltage adjustable

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  DIN rail TS-35/7.5 or 15 mountable

l  Over voltage category ⅲ

l  LED indicator for power on

l  3 years warranty

l  Ultra slim design with 105mm(6SU) width

l  Universal input 85~ 264VAC (277VAC operational)

l  No load power consumption<0.3W

Meanwell HDR-150-12 Features

Meanwell HDR-150-12 Applications

l  Building automation

l  Factory automation

l  Industrial control system

l  Household control system

l  Electro-mechanical apparatus

Meanwell HDR-150 Series Applications

Meanwell HDR-150-12 Mechanical Diagram

Meanwell HDR-150-12 Mechanical DiagramMeanwell HDR-150-12 Mechanical DiagramMeanwell HDR-150-12 Mechanical Diagram
