HBG-160P-36
35.36

HBG-160P-36

$35.36

Meanwell160W Constant Voltage and Constant Current LED Driver with 36V21.6-36V4.4A158.4W300mVp-p2.6-4.4A±2.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell HBG-160P-36
Brand Meanwell
Details

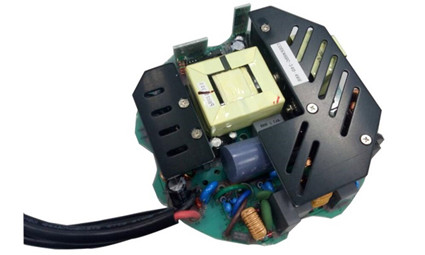

Meanwell HBG-160P-36 is a 1 60W AC/DC PCB type LED driver with 36V21.6-36V4.4A158.4W300mVp-p2.6-4.4A±2.0%±0.5%±1.0%. The product highlights the circular shape design, and operates from 90~ 305VAC. In addition, it offers dual mode constant voltage and constant current output model with the rated voltage 36V. With the efficiency reaching high up to 93.5% and fanless design, HBG-160P-36 is able to work for-40℃~ + 45℃ under free air convection. What’s more, the unit is supplied with various function options such as dimming methodology. Due to its long lifetime, high efficiency and excellent quality, Meanwell HBG-160P-36 is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell HBG-160P-36 Meanwell HBG-160P series price and specs ac dc led driver power supply 160w ycict

Meanwell HBG-160P-36 Encoding

HBG Series Name
160P Rated Wattage PCB Type
36 Rate output voltage ( 36/48/60v)
A Function options
Type Function Note
A lo adjustable through built-in potentiometer In stock
B 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) In stock
DA DALI control technology In stock

Meanwell HBG-160P-36 Specifications

Model HBG-160P-36
OUTPUT DC VOLTAGE 36V
CONSTANT CURRENT REGION 21.6-36V
RATED CURRENT 4.4A
RATED POWER 158.4W
RIPPLE & NOISE (max.) 300mVp-p
CURRENT ADJ. RANGE Adjustable for A-Type only (via built-in potentiometer)
2.6-4.4A
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.) 12ms/115VAC,230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127~417VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>+0.92/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC)
EFFICIENCY (Typ.)  92.00%
AC CURRENT 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
NO LOAD / STANDBY POWER CONSUMPTION Standby power consumption <0.5W for B/DA-Type
A-Type please refer to Note. 9
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 41-47V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP Ta=-40 ~ +45 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750,CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1,BS EN/EN61347-2-13,BS EN/EN62384, GB19510.1, GB19510.14, EAC TP TC 004 approved
DALI STANDARDS Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (at load >=60%) ; BS EN/EN61000-3-3, GB17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level(surge immunity:Line-Earth:4KV, Line-Line:2KV),EAC TP TC 020
Others MTBF 2612.1K hrs min. Telcordia SR-332 (Bellcore) ;195.6K hrs min. MIL-HDBK-217F (25)
DIMENSION Refer to mechanical specification
PACKING 0.4Kg; 36pcs/15.4Kg/1.35CUFT

Meanwell HBG-160P-36 Features

l  Typical lifetime>50000 hours

l  5 years warranty

l  Constant Voltage + Constant Current mode output

l  Circular shape PCB type design

l  Built-in active PFC function

l  Function options: output adjustable via potentiometer;3 in 1 dimming; DALI

Meanwell HBG-160P-36 Features Meanwell HBG-160P-36 price and specs ac dc led driver good price meanwell power supply ycict

Meanwell HBG-160P-36 Applications

l  LED bay lighting

l  LED stage lighting

l  LED spot lighting

l  LED down lighting

l  LED mining lighting

Meanwell HBG-160P-36 Mechanical Diagram

Meanwell HBG-160P-36 Mechanical Diagram Meanwell HBG-160P-36 price and specs ac dc led driver meanwell hbg ycict

Meanwell HBG-160P-36 Mechanical Diagram meanwell HBG-160 PRICE AND SPECS AC DC LED DRIVER MEANWELL HBG SERIES YCCIT
