GSV30E12-P1J
4.14
Details

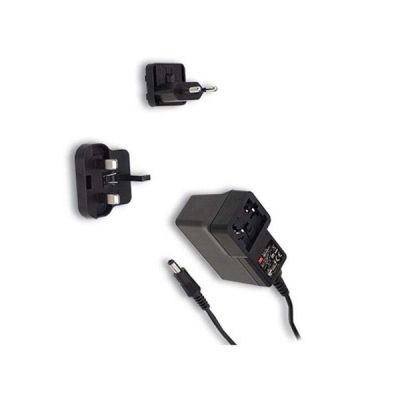

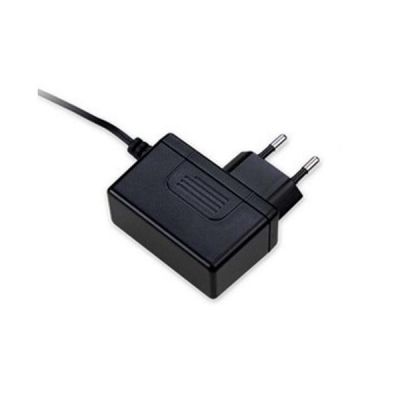

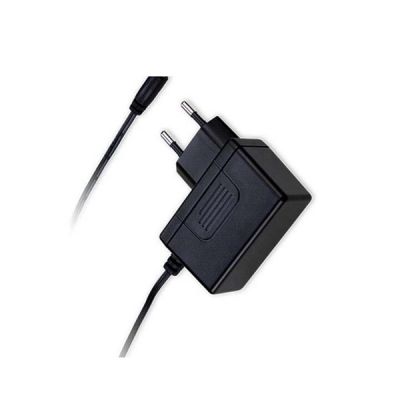

Meanwell GSV30E12-P1J is 30W external PFC wall-mounted LED power supply with 12V<15V2.5A30W2.5Vp-p max.±1.5V±2.0%0.5W max.500ms/230VAC at full load. The design is based on the plug and play" concept for adaptors. The AC input side exploits the 2-Pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2. 1x5.5x11mm) in the market. In addition, Meanwell GSV30E12-P1J accepts 180~264 VAC input and offers constant voltage output with 12V/24V or 48V. What’s more, the design complies with the lighting requirements of EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN61 000-3-2 Class C. Apart from them, no load power consumption is less than 0.5W, making GSV 30 conform to the ErP regulation required by European Union for lighting systems as well.
Meanwell GSV30E12-P1J Encoding
| GSV | Series Name | |
| 30 | Output Wattage | |

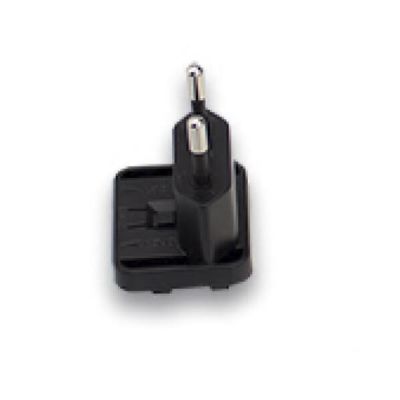

| E | AC Inlet | Standard Model: E: EU 2 Pin Plug |
| Optional Model: I: Interchangeable type. ( Excluding Plug) | ||
| 12 | Output Voltage with 12/24/ or 48V) | |
| P1J | DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5.5ѱ Х 11mm, C+ tuning fork type |
| Other options available by customer requested (see Page 5~6) | ||
Meanwell GSV30E12-P1J Specifications
| Model | GSV30E12-P1J | |
| OUTPUT | DC VOLTAGE | 12V |
| OPEN CIRCUIT VOLTAGE | <15V | |
| RATED CURRENT | 2.5A | |
| RATED POWER | 30W | |
| RIPPLE & NOISE (max.) | 2.5Vp-p max. | |
| VOLTAGE TOLERANCE | ±1.5V | |
| LINE REGULATION | ±2.0% | |
| NO LOAD CONSUMPTION | 0.5W max. | |
| SETUP UP TIME | 500ms/230VAC at full load | |
| INPUT | VOLTAGE RANGE | 180 ~ 264VAC 255 ~ 373VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.92/230VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| TOTAL HARMONIC DISTORTION | <20%/230VAC @ full load | |
| EFFICIENCY (Typ.) | 83% min. @ 230VAC | |
| AC CURRENT (Typ.) | 0.3A/230VAC | |
| INRUSH CURRENT(max.) | COLD START 20A(twidth=200μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA max. @ 230VAC | |
| PROTECTION | OVERLOAD | 105 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 15.6-18V | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -30 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (-20 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | LVD BS EN/EN61347-1, BS EN/EN61347-2-13 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% R | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load) ; BS EN/EN61000-3-3 | |
| EMC IMMUNITY | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load) ; BS EN/EN61000-3-3 | |
| Others | MTBF | 450K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | E : 75.5*32*47.5 mm(L*W*H) ; I: 75.5*39.1*56.2 mm(L*W*H) | |
| PACKING | E: 200g ; 60pcs / 13kg / CARTON ; I: 166g ; 60pcs / 11kg / CARTON | |
| CONNECTOR | PLUG | See page 5~6 ; Other type available by customer requested |
| CABLE | See page 5~6 ; Other type available by customer requested | |
Meanwell GSV30E12-P1J Features
l 3 years warranty
l Cooling by free air convection
l No load power consumption<0.5W
l AC 180~ 264V input
l ClassⅡ/2 power unit, no FG
l Built-in active PFC function with EN61347-1 regulation
l Constant voltage design
l Protections: Short circuit/Over load/Over voltage
Meanwell GSV30E12-P1J Applications
l LED strip lighting
l Indoor LED lighting
l LED decorative lighting
l Commercial lighting
l Mirror lighting
l Table light
l Portable lighting
Meanwell GSV30E12-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
