Meanwell 30W With PFC LED Power Supply

- +
Availability:In stock
SKU Meanwell GSV30
Brand Meanwell
Details

Meanwell GSV30 Series is 30W external wall-mounted LED power supply with PFC function. The design is based on the plug and play" concept for adaptors. The AC input side exploits the 2-Pole (Class II, no FG) standard plug, and the output side is equipped with the highly accepted DC connector (2. 1x5.5x11mm) in the market. At the same time, GSV30 accepts 180~264 VAC input and offers constant voltage output with 12V/24V or 48V. In addition, the design complies with the lighting requirements of EMI BS EN/EN55015 and the harmonic current demand according to BS EN/EN61 000-3-2 Class C. Apart from them, no load power consumption is less than 0.5W, making GSV 30 conform to the ErP regulation required by European Union for lighting systems as well.

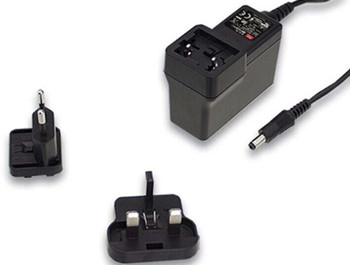

Meanwell GSV30 price and specs 30W LED Power Supply PFC GSV30E12-P1J GSV30E24-P1J GSV30E48-P1J Constant voltage YCICT

Meanwell GSV30 Series Encoding

GSV Series Name
30 Output Wattage

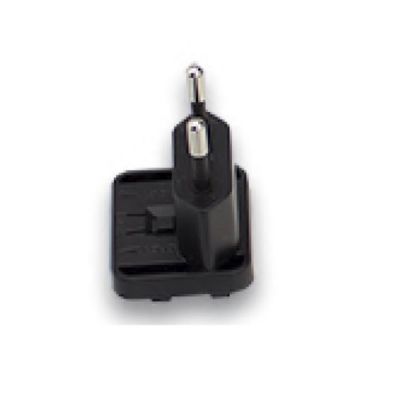

E AC Inlet Standard Model: E: EU 2 Pin Plug

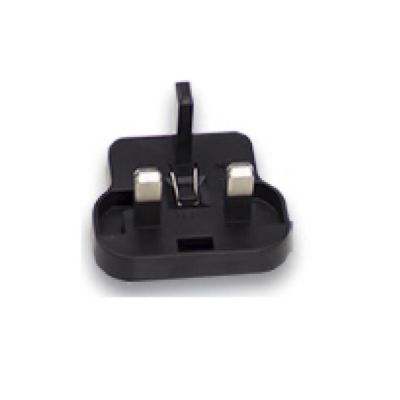

Optional Model: I: Interchangeable type. ( Excluding Plug)
12 Output Voltage with 12/24/ or 48V)
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5.5ѱ Х 11mm, C+ tuning fork type
Other options available by customer requested (see Page 5~6)

Meanwell GSV30 Series Model Specifications

Model GSV30E12-P1J GSV30E24-P1J GSV30E48-P1J
OUTPUT DC VOLTAGE 12V 24V 48V
OPEN CIRCUIT VOLTAGE <15V <28V <57V
RATED CURRENT 2.5A 1.25A 0.625A
RATED POWER 30W 30W 30W
RIPPLE & NOISE (max.) 2.5Vp-p max. 3.5Vp-p max. 5.5Vp-p max.
VOLTAGE TOLERANCE ±1.5V ±2.0V ±4.0V
LINE REGULATION ±2.0% ±2.0% ±2.0%
NO LOAD CONSUMPTION 0.5W max.
SETUP UP TIME 500ms/230VAC at full load
INPUT VOLTAGE RANGE 180 ~ 264VAC 255 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.92/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION <20%/230VAC @ full load
EFFICIENCY (Typ.) 83% min. @ 230VAC 86% min. @ 230VAC 89% min. @ 230VAC
AC CURRENT (Typ.) 0.3A/230VAC 0.5A/230VAC
INRUSH CURRENT(max.) COLD START 20A(twidth=200μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT <0.25mA max. @ 230VAC
PROTECTION OVERLOAD 105 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15.6-18V 28-32.4V 57.6-72V
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP -20 ~ +50 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -30 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (-20 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS LVD BS EN/EN61347-1, BS EN/EN61347-2-13 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% R
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load) ; BS EN/EN61000-3-3
EMC IMMUNITY Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (100% load) ; BS EN/EN61000-3-3
Others MTBF 450K hrs min. MIL-HDBK-217F (25)
DIMENSION E : 75.5*32*47.5 mm(L*W*H) ; I: 75.5*39.1*56.2 mm(L*W*H)
PACKING E: 200g ; 60pcs / 13kg / CARTON ; I: 166g ; 60pcs / 11kg / CARTON
CONNECTOR PLUG See page 5~6 ; Other type available by customer requested
CABLE See page 5~6 ; Other type available by customer requested

Meanwell GSV30 Series Features

l  AC 180~ 264V input

l  ClassⅡ/2 power unit, no FG

l  Built-in active PFC function with EN61347-1 regulation

l  Constant voltage design

l  Protections: Short circuit/Over load/Over voltage

l  Cooling by free air convection

l  No load power consumption<0.5W

l  3 years warranty

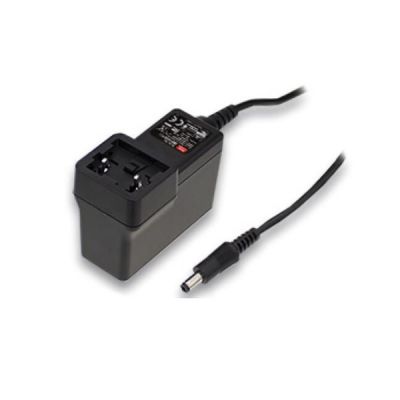

Meanwell GSV30 price and specs 30W PFC LED Power Supply GSV30E12-P1J GSV30E24-P1J GSV30E48-P1J Constant voltage YCICT

Meanwell GSV30 Series Applications

l  LED strip lighting

l  Indoor LED lighting

l  LED decorative lighting

l  Commercial lighting

l  Mirror lighting

l  Table light

l  Portable lighting

Meanwell GSV30 price and datasheet 30W LED Power Supply GSV30E12-P1J GSV30E24-P1J GSV30E48-P1J Constant voltage YCICT

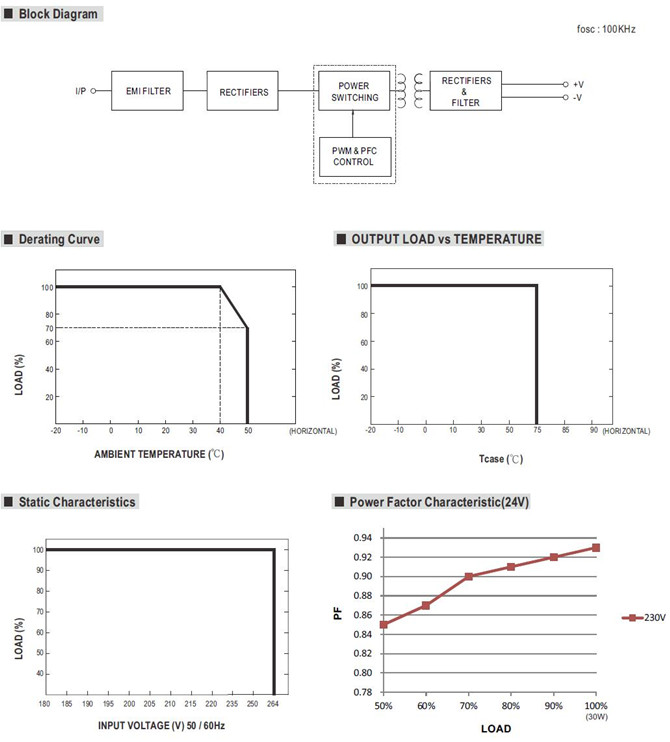

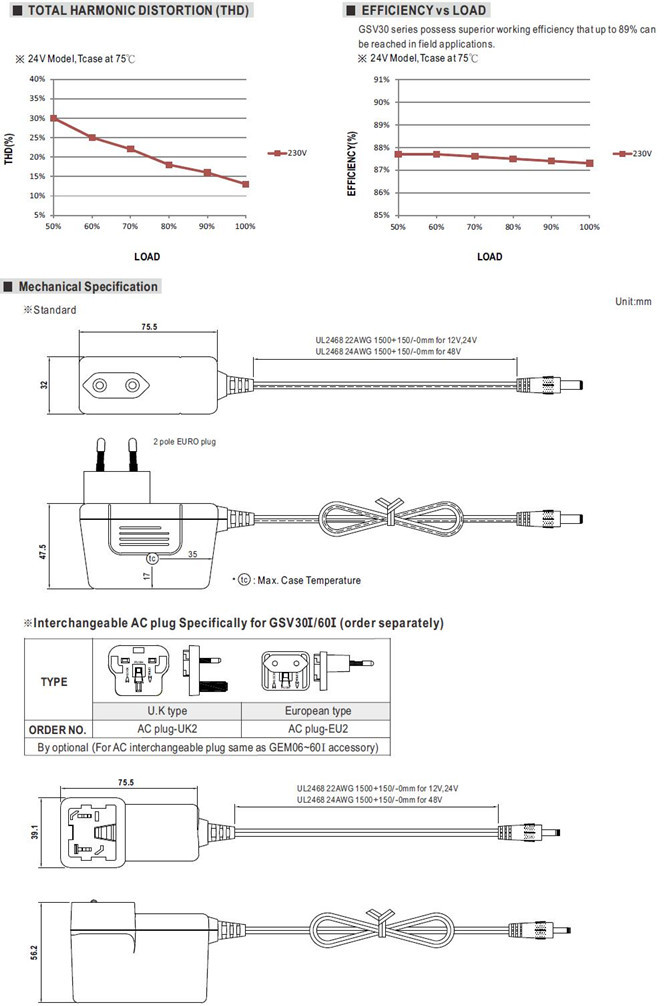

Meanwell GSV30 Series Mechanical Diagram
