GST36E12-P1J
13.28

GST36E12-P1J

$13.28

Meanwell 36W AC-DC Reliable Green Industrial Adaptor with 12V3A0-3A36W100mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GST36E12-P1J
Brand Meanwell
Details

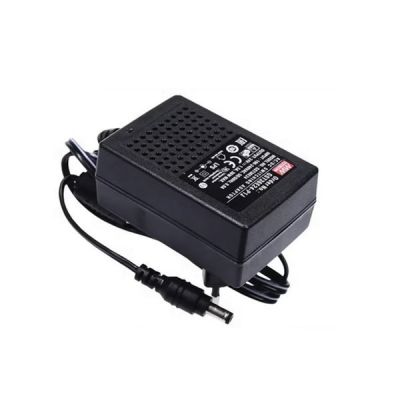

Meanwell GST36E12 is a 36W AC-DC Green Industrial Adaptor with 12V3A0-3A36W100mVp-p. The unit outstands single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2- Pin standard European AC power plug. Meanwhile, GST36E12 adopts the input range from 85VAC to 264VAC, with output voltage 12VDC. So that it could meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.075W, Meanwell GST36E12 is compliant with EU Erp and Code of Conduct (CoC) Version 5. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model also utilizes the 94V-0 flame retardant plastic case, offering double insulation, which effectively prevents electrical shock. GST36E12 is certified for the international safety regulations. In light of its high safety, high quality and high performance, Meanwell GST36E12 serves as an ideal power supply solution for various types of consumer electronic devices.

Meanwell GST36E12 Price and Specs 36W AC-DC Adaptor GST36E GST36E05 GST36E09 GST36E24 GST36E48 12V 3A LPS YCICT

Meanwell GST36E12-P1J Encoding

GST Series Name
36 Rated Wattage
E European 2 pin AC Plug
12 Output Voltage
P1J  Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST36E12-P1J Specifications

ORDER NO. GST36E12-P1J
OUTPUT SAFETY MODEL NO. GST36E12
DC VOLTAGE 12V
RATED CURRENT 3A
CURRENT RANGE 0-3A
RATED POWER 36W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.50%
AC CURRENT 0.8A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others Life 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 209g; 60pcs/13.5Kg/1.15CUFT

Meanwell GST36E12-P1J Features

l  Pass LPS

l  Global certificates

l  3 years warranty

l  Energy efficiency Level VI

l  LED indicator for power on

l  Universal AC input/Full range

l  2 pole EURO plug, Class II power unit

l  No load power consumption< 0.075W

l  Comply with EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  -30℃~+70℃ wide range working temperature

l  Various DC plug quick adapter accessory available

Meanwell GST36E12 Price and Specs 36W AC-DC Adaptor GST36E GST36E05 GST36E12 GST36E24 GST36E48 12V 3A LPS YCICT

Meanwell GST36E12-P1J Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST36E12 Price and Specs 36W AC-DC Adaptor GST36E GST36E05 GST36E12 GST36E24 GST36E48 12V 3A LPS Pass YCICT

Meanwell GST36E12-P1J Mechanical Diagram

Meanwell GST36E12 Price and Datasheet 36W AC-DC Adaptor GST36E GST36E05 GST36E12 GST36E24 GST36E48 12V 3A LPS YCICT
