GST18B18-P1J
10.28
Details

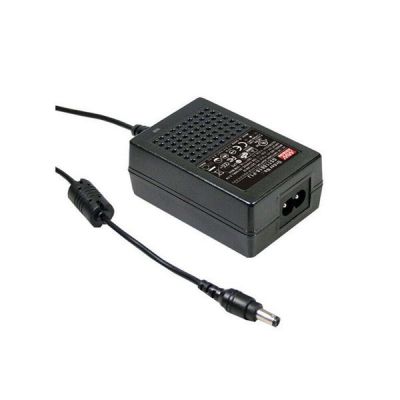

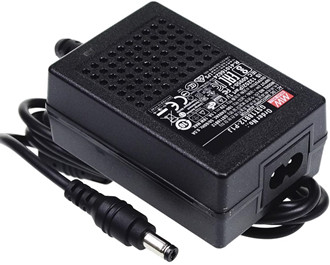

Meanwell GST18B18 is a highly reliable 18W green adaptor with 18V1.0A0-1.0A18W150mVp-p. The unit highlights desktop style and single-output. It is a class II power unit (no FG), equipped with standard IEC320-C8 AC inlet. Meanwhile, GST18B18 adopts the input range from 85VAC to 264VAC with output voltage 18VDC. Therefore, that can satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, GST18B18 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS,EU ErP ,andCode of Conduct(CoC) Version 5. The supreme feature also allows the adaptor to save energy when it is either under operating mode or standby mode. Apart from them, the model utilizes the 94V-0 flame retardant plastic case, which gives double insulation that effectively prevents electrical shock. it is certified for the international safety regulations as well. Because of its longevity, high reliability and excellent quality, Meanwell GST18B18 serves as a high performance power supply solution for various applications.
Meanwell GST18B18-P1J Encoding
| GST | Series Name |
| 18 | Rated Wattage |
| B | IEC320-C8 AC Inlet |
| 18 | Output Voltage |
| P1J | DC Plug Type Р1J: ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type |
| DC Plug Type Other options available by customer requested |
Meanwell GST18B18-P1J Specifications
| ORDER NO. | GST18B18-P1J | |
| OUTPUT | SAFETY MODEL NO. | GST18B18 |
| DC VOLTAGE | 18V | |
| RATED CURRENT | 1.0A | |
| CURRENT RANGE | 0-1.0A | |
| RATED POWER | 18W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT | 0.5A / 115VAC 0.3A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| LEAKAGE CURRENT(max.) | Cold start 35A / 115VAC 65A / 230VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1,AS/NZS 60950.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | MTBF | 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 79*54*33mm (L*W*H) | |
| PACKING | 191.5g; 60pcs/12.5Kg/1.15CUFT | |
Meanwell GST18B18-P1J Features
l Pass LPS
l 3 years warranty
l Global certificates
l Energy efficiency Level VI
l Fully enclosed plastic case
l LED indicator for power on
l Universal AC input/ Full range
l No load power consumption< 0.075W
l -30~+70℃ wide range working temperature
l Various DC plug quick adapter accessory available
l Protections: Short circuit/Overload/Over voltage
l 2 pole AC inlet lEC320-C8, Class II power unit
l Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5
Meanwell GST18B18-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
Meanwell GST18B18-P1J Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
