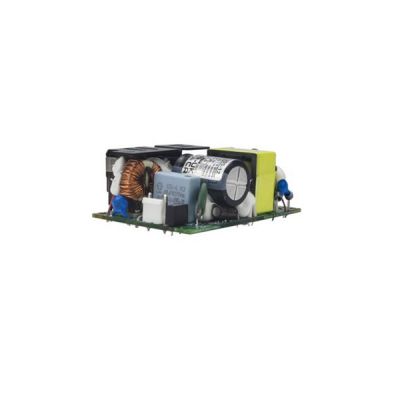

Meanwell EPP-120S Series is a 120W highly reliable green PCB type power supply. It has high power density on the 3" by 2"footprint. The entire series accepts 80~ 264VAC input and offers various output voltages between 12V and 48V. With the working efficiency up to 94% and the extremely low no load power consumption< 0.3W. EPP-120S is able to be used for both Class I (with FG) and Class II (no FG) system design. Apart from them, It has the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Moreover, EPP-120S complies with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1, UL62368-1 and lEC62368-1. Due to its high efficiency, low cost and longevity, Meanwell EPP-120S Series serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell EPP-120S Series Model Specifications
| Model | EPP-120S-12 | EPP-120S-15 | EPP-120S-24 | EPP-120S-27 | EPP-120S-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 27V | 48V | |
| CURRENT | Peak (10 sec.) | 11.8A | 9.5A | 6.25A | 5.55A | 3.125A | |
| Convection | 9.5A | 7.6A | 5A | 4.44A | 2.5A | ||
| RATED POWER | Peak (10 sec.) | 141.6W | 142.5W | 150W | 149.8W | 150W | |
| Convection | 114W | 114W | 120W | 119.9W | 120W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | ||
| VOLTAGE ADJ. RANGE | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 25.6-28.4V | 45.6-50.4V | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 15ms/230VAC 15ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 91.00% | 92.00% | 93.00% | 94.00% | 93.00% | ||
| AC CURRENT (Typ.) | 2.3A/115VAC 1.1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||||||
| PROTECTION | OVERL OAD | 130~160% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.2-15.6V | 16.5-19.5V | 26.4-31.2V | 29.7-35V | 52.8-62.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP | -40 ~ +85℃ | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OPERATING ALTITUDE | 5000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted emission | BS EN/EN55032 (CISPR32) | Class B | |||||
| Radiated emission | BS EN/EN55032 (CISPR32) | ClassⅠ: Class B , ClassⅡ: Class A | |||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage flicker | BS EN/EN61000-3-3 | ------ | |||||
| EMC IMMUNITY | BS EN/EN61000-6-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air ; Level 3, 4KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz | |||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods | |||||
| OTHERS | MTBF | 470Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 76.2*50.8*28mm (L*W*H) or 3" * 2" *1.1" inch | ||||||
| PACKING | 0.13Kg; 100pcs/14Kg/1.13CUFT | ||||||

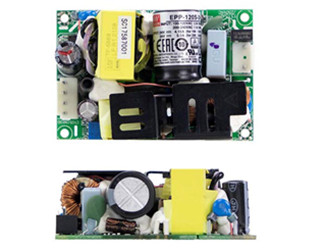

Meanwell EPP-120S Series Features
l 3"x2" Compact Size
l 120W convection,150W peak (10sec.)
l EMI for both ClassⅠ& Class Ⅱ configuration
l -30℃~+85℃ wide range operating temperature
l No load power consumption<0.3W
l High efficiency up to 94%
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Operating altitude up to 5000 meters
l 3 years warranty
Meanwell EPP-120S Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus

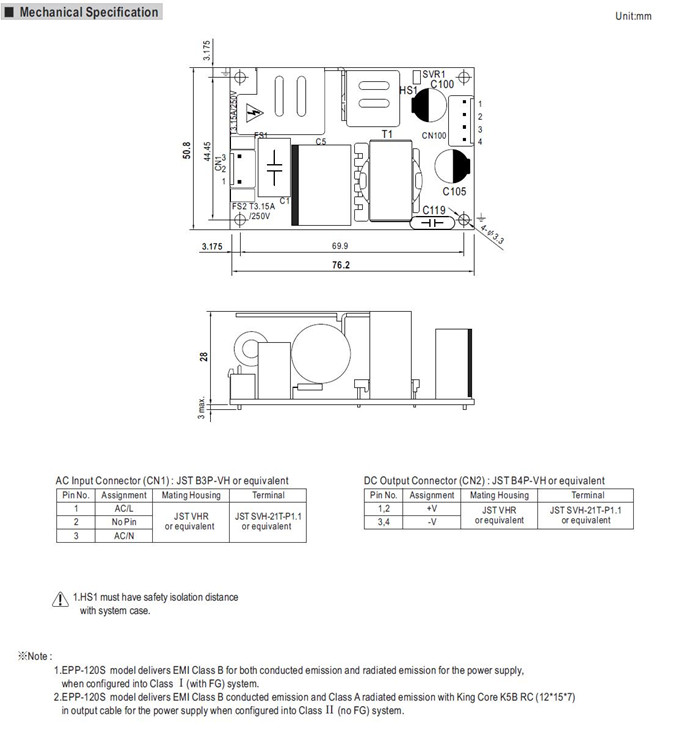

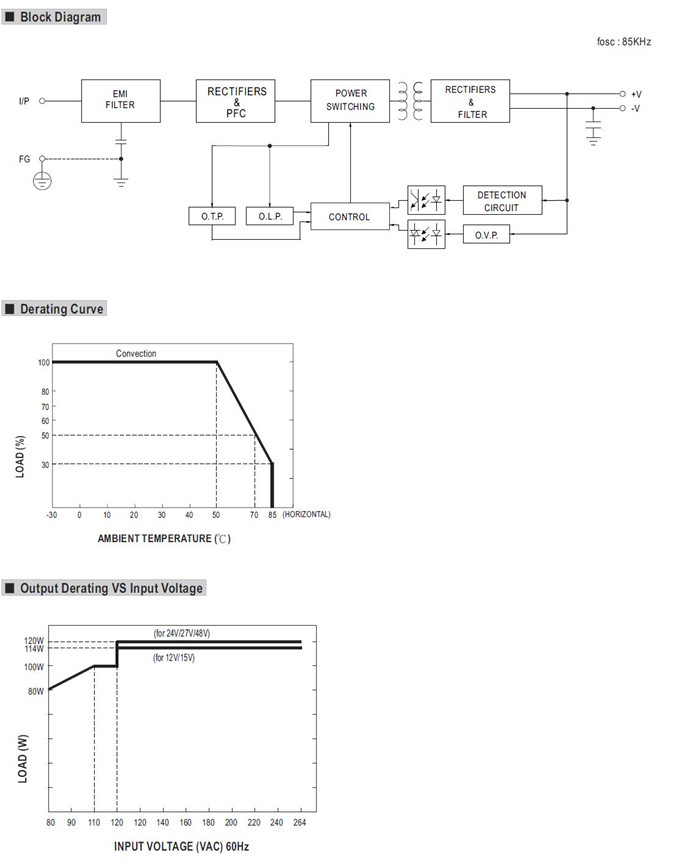

Meanwell EPP-120S Series Mechanical Diagram
