GST18B15-P1J
10.03

GST18B15-P1J

$10.03

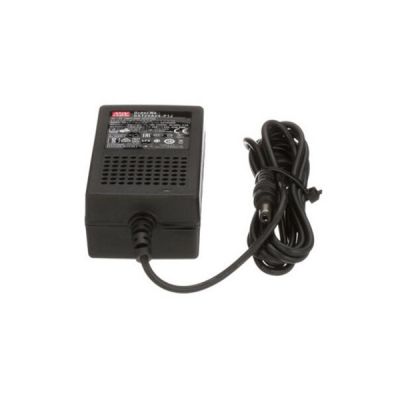

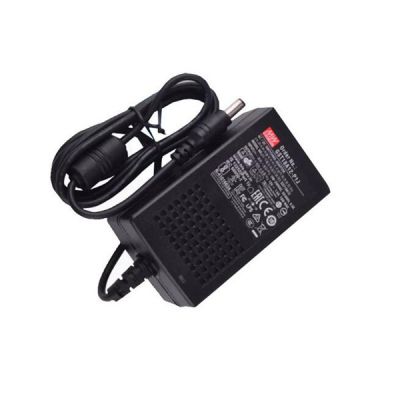

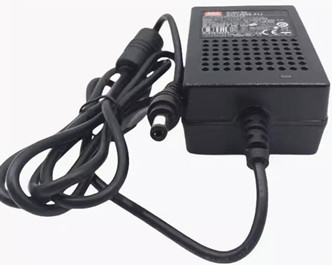

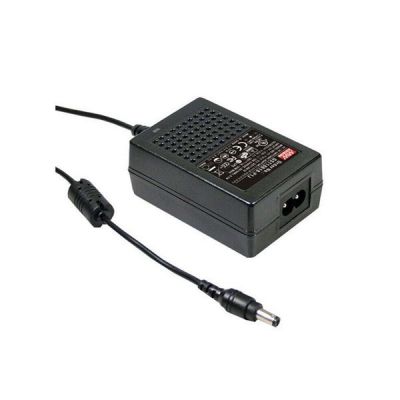

Meanwell 18W AC-DC Reliable Green Industrial Adaptor with 15V1.2A0-1.2A18W100mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GST18B15-P1J
Brand Meanwell
Details

Meanwell GST18B15 is a highly reliable 18W green adaptor with 15V1.2A0-1.2A18W100mVp-p. The model features desktop style and single-output. It is a class II power unit (no FG), with standard IEC320-C8 AC inlet. At the same time, GST18B15 adopts the input range from 85VAC to 264VAC, supplied with output voltage 15VDC. Therefore, this can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, GST18B15 complies with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS,EU ErP ,andCode of Conduct(CoC) Version 5. Moreover, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Besides them, the product utilizes the 94V-0 flame retardant plastic case, which gives double insulation that effectively prevents electrical shock. it is also certified for the international safety regulations. As a result of its longevity, high reliability and excellent quality, Meanwell GST18B15 serves as a high performance power supply solution for various applications.Meanwell GST18B15 Price and Specs 18W AC-DC Reliable Green Industrial Adaptor plastic case LPS Pass class II 15V YCICT

Meanwell GST18B15-P1J Encoding

GST Series Name
18 Rated Wattage
B IEC320-C8 AC Inlet
15 Output Voltage
P1J DC Plug Type Р1J: ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type
DC Plug Type Other options available by customer requested

Meanwell GST18B15-P1J Specifications

ORDER NO. GST18B15-P1J
OUTPUT SAFETY MODEL NO. GST18B12
DC VOLTAGE 15V
RATED CURRENT 1.2A
CURRENT RANGE 0-1.2A
RATED POWER 18W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.00%
AC CURRENT 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) Cold start 35A / 115VAC 65A / 230VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS14336, CCC GB4943.1,AS/NZS 60950.1,PSE J62368-1,
BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 191.5g; 60pcs/12.5Kg/1.15CUFT

Meanwell GST18B15-P1J Features

l  Pass LPS

l  3 years warranty

l  Global certificates

l  Universal AC input/ Full range

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Fully enclosed plastic case

l  LED indicator for power on

l  -30~+70℃ wide range working temperature

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Overload/Over voltage

l  2 pole AC inlet lEC320-C8, Class II power unit

l  Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5

Meanwell GST18B15 Price and Specs 18W AC-DC Reliable Green Industrial Adaptor plastic case LPS Pass class II YCICT

Meanwell GST18B15-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

Meanwell GST18B15 Price and Specs 18W AC-DC Reliable Green Industrial Adaptor plastic case LPS Pass class II 15V YCICT

Meanwell GST18B15-P1J Mechanical Diagram

Meanwell GST18B15 Price and Datasheet 18W AC-DC Reliable Green Industrial Adaptor plastic case LPS Pass class II YCICT
