LCM-60KN
39.28

LCM-60KN

$39.28

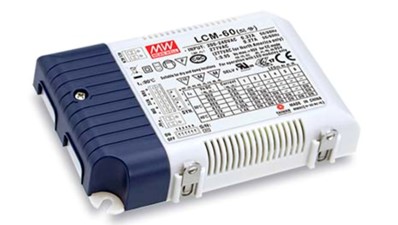

Meanwell 60W Multiple-Stage Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell LCM-60KN
Brand Meanwell
Details

Meanwell LCM-60KN Series is a 60W AC/DC constant current mode output LED driver. The product outstands the multiple levels selectable by dip switch and the KNX interface to avoid using the complicated KNX-DALI gateway. At the same time, LCM-60KN operates from 180~ 295VAC, and offers different current levels ranging between 500mA and 1400mA. Thanks to the high efficiency high up to 91% with the fanless design, the entire series is able to operate for -30℃ ~+90℃ case temperature under free air convection. In addition, LCM-60KN is equipped with push dimming and synchronization, so as to provide the optimal design flexibility for LED lighting system.

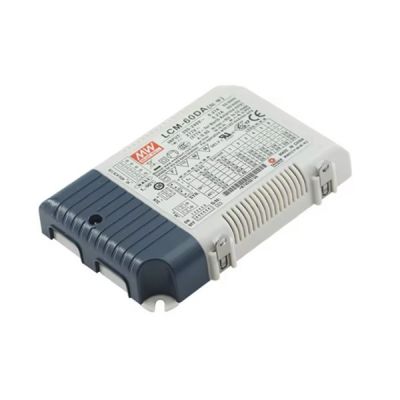

Meanwell LCM-60KN price and specs 60W Multiple-Stage Constant Current LED Driver KNX/EIB protocol EL 95V 60.3W YCICT

Meanwell LCM-60KN Series Encoding

LCM Series Name
60 Output wattage
KN Built-in KNX interface
AUX Function mode option
Blank KNX and push dimming ,with standby power consumption <0.5 W
AUX KNX and push dimming, with standby power consumption <1.2W and Auxiliary DC output

Meanwell LCM-60KN Series Model Specifications

Model LCM-60KN-
OUTPUT CURRENT LEVEL Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section
500mA 600mA 700mA (default) 900mA 1050mA 1400mA
RATED POWER 60.3W
DC VOLTAGE RANGE 2-90V 2-90V 2-86V 2-67V 2-57V 2-42V
OPEN CIRCUIT VOLTAGE (max.) 95V 73V
CURRENT RIPPLE 5.0% max. @rated current
CURRENT TOLERANCE ±5%
AUXILIARY DC OUTPUT Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only
SETUP TIME 500ms / 230VAC
INPUT VOLTAGE RANGE 180 ~ 295VAC 220 ~ 392VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>=0.975/230VAC, PF>=0.93/277VAC@full load
TOTAL HARMONIC DISTORTION THD< 20%(@load>=75%)
EFFICIENCY (Typ.) 91%
AC CURRENT (Typ.) 0.32A/230VAC
INRUSH CURRENT (Typ.) COLD START 20A(twidth=320μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER Constant current limiting, recovers automatically after fault condition is removed
LEAKAGE CURRENT <0.5mA / 240VAC
STANDBY POWER CONSUMPTION <0.5W for Blank-Type, <1.2W for AUX-Type
PROTECTION SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 125V
Shutdown o/p voltage, re-power on to recover
OVER TEMPERATURE Shutdown o/p voltage,re-power on to recover
FUNCTION DIMMING Please refer to "DIMMING OPERATION" section
SYNCHRONIZATION Please refer to "SYNCHRONIZATION OPERATION” section
TEMP. COMPENSATION By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section
ENVIRONMENT WORKING TEMP. Tcase=-30 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP. Tcase=+90
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004,
GB19510.14 and GB19510.1(by request)approved ; According to BS EN/EN50172, BS EN/EN 60598-2-22,
BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 200-240Vac)
KNX STANDARDS Certified protocol
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load>=40%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020
OTHERS MTBF 1764.2K hrs min. Telcordia SR-332 (Bellcore) ; 190.0K hrs min. MIL-HDBK-217F (25)
DIMENSION 123.5*81.5*23mm (L*W*H)
PACKING 0.24Kg ; 54pcs/15Kg/1.12CUFT

Meanwell LCM-60KN Series Features

l  3 years warranty

l  KNX/EIB protocol

l  Flicker free design

l  Support emergency lighting (EL)

l  Integrated constant light output

l  Integrated KNX push button interface

l  Synchronization up to 10units

l  Constant Current mode output with multiple levels selectable by dip switch

l  Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection, etc

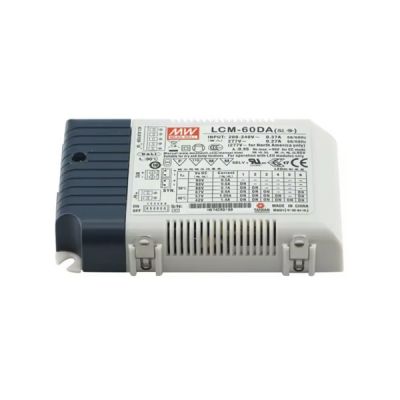

Meanwell LCM-60KN price and specs 60W Multiple-Stage Constant Current LED Driver KNX/EIB protocol support EL 95V YCICT

Meanwell LCM-60KN Series Applications

l  LED indoor lighting

l  LED office lighting

l  LED architectural lighting

l  LED panel lighting

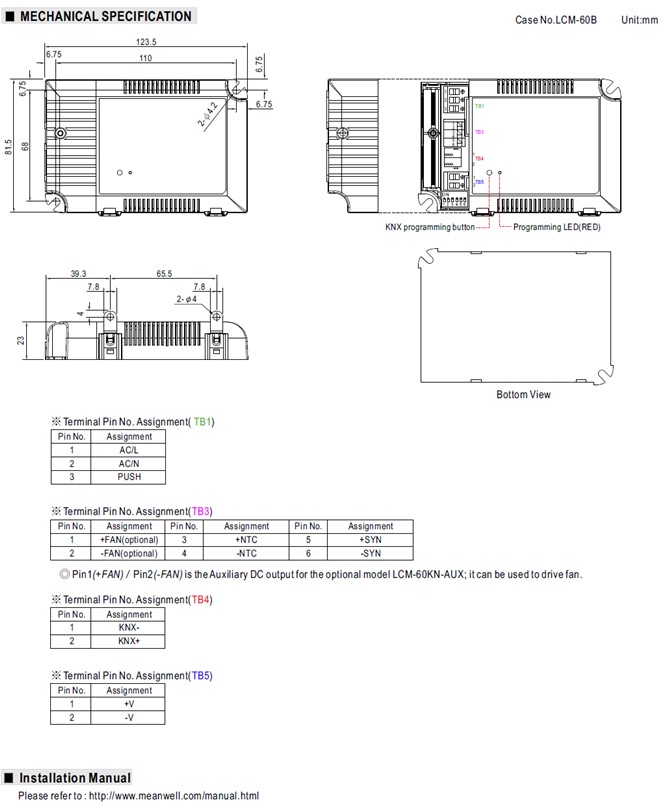

Meanwell LCM-60KN Series Mechanical Diagram

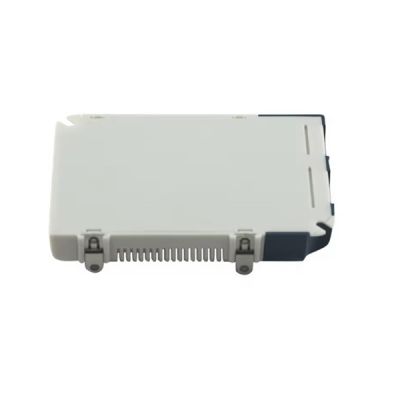

Meanwell LCM-60KN price and specs 60W Multiple-Stage Constant Current LED Driver KNX/EIB protocol support EL YCICT
