GST18A12-P1J
8.72

GST18A12-P1J

$8.72

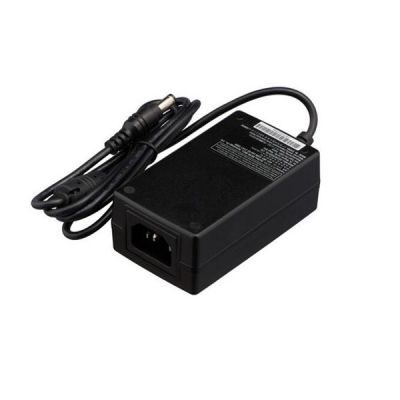

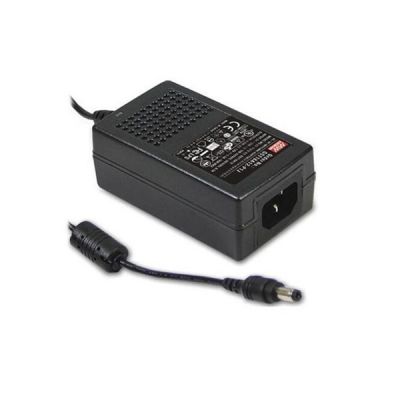

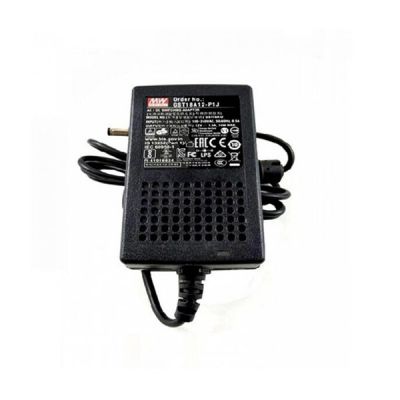

Meanwell 18W AC-DC Reliable Green Industrial Adaptor with 12V1.5A0-1.5A18W80mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GST18A12-P1J
Brand Meanwell
Details

Meanwell GST18A12 is a 18W AC-DC Green Industrial Adaptor with 12V1.5A0-1.5A18W80mVp-p. The item highlights single-output, desktop style and high reliability. It is a class I power unit (with FG), equipped with standard IEC320-C14 AC inlet. GST18A12 adopts the input range from 85VAC to 264VAC with output voltage 12VDC, so that it could satisfy the demands for various types of consumer electronic devices. Meanwhile, the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W. GST18A12 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct (CoC) Version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case, and certified for the international safety regulations. In view of its good quality, high reliability, and long lifespan, Meanwell GST18A12 serves as a high-performance power supply solution for various applications.

Meanwell GST18A12 Price and Specs 18W 12V AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit YCICT

Meanwell GST18A12-P1J Encoding

GST Series Name
18 Rated Wattage
A IEC320-C14 AC Inlet
12 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х1 1mm, C+ tuning fork type
DC Plug Type Other options available by customer requested

Meanwell GST18A12-P1J Specifications

ORDER NO. GST18A12-P1J
OUTPUT SAFETY MODEL NO. GST18A11
DC VOLTAGE 12V
RATED CURRENT 1.5A
CURRENT RANGE 0-1.5A
RATED POWER 18W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 14336-1 , CCC GB4943.1, PSE J62368-1,
AS/NZS 60950.1BIS IS13252, KC K60950-1, EAC TP TC 004 approved; SIRIM MS IEC62368-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN55035
Others MTBF 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 93*54*36mm (L*W*H)
PACKING 209g; 60pcs/13.5Kg/1.02CUFT

Meanwell GST18A12-P1J Features

l  Fully enclosed plastic case

l  Pass LPS

l  3 years warranty

l  Global certificates

l  Energy efficiency Level VI

l  LED indicator for power on

l  Universal AC input/Full range

l  3 pole AC inlet IEC320-C14, Class I power unit

l  No load power consumption< 0.075W

l  -30℃~+70℃ wide range working temperature

l  Various DC plug quick adapter accessory available

l  Comply with EISA 2007/DoE, NRCan, Korea K-MEPS, AU/NZ MEPS, EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

Meanwell GST18A12 Price and Specs 18W AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit LPS YCICT

Meanwell GST18A12-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

Meanwell GST18A12 Price and Specs 18W 12V AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit LPS YCICT

Meanwell GST18A12-P1J Mechanical Diagram

Meanwell GST18A12 Price and Datasheet 18W 12V AC-DC Reliable Green Industrial Adaptor 3 pole AC inlet power unit YCICT
