GSM36B05-P1J
12.03

GSM36B05-P1J

$12.03

Meanwell 36W AC-DC Reliable Green Medical Adaptor with 5V4.5A0-4.5A22.5W80mVp-p±6.0%±1.0%±6.0%

- +
Availability:In stock
SKU Meanwell GSM36B05-P1J
Brand Meanwell
Details

Meanwell GSM36B05 is a 36W AC-DC Reliable Green Medical Adaptor with 5V4.5A0-4.5A22.5W80mVp-p. The model highlights single-output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. At the same time, GSM36B05-P1J adopts the input range from 80VAC to 264VAC with output voltage 5VDC, so that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2xMOPP), having an ultra-low leakage current (<50uA), and thus fits the medical devices in direct electrical contact with the patients. Additionally, the work efficiency reaches high up to 88% and extremely low no-load power consumption below 0.1W. GSM36B05 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU Erp and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. it is also approved with the international medical safety certificates. Due to its longevity, high efficiency, and excellent performance, Meanwell GSM36B05 serves as an ideal power supply solution for various types of medical electronic device.

Meanwell GSM36B05 Price and Specs 36W AC-DC Medical Adaptor GSM36B05-P1J 07 09 12 15 18 24 48 2 pole AC Inlet YCICT

Meanwell GSM36B05-P1J Encoding

GSM Series Name
36 Rated Wattage

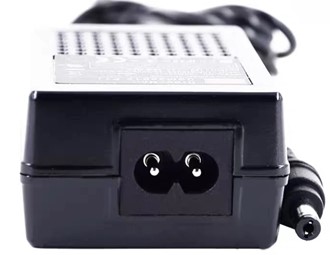

B IEC320-C8 2 Pin AC Inlet
5 Output voltage
P1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре
Other Options available by customer requested

Meanwell GSM36B05-P1J Specifications

ORDER NO. GSM36B05-P1J
OUTPUT SAFETY MODEL NO. GSM36B05
DC VOLTAGE 5V
RATED CURRENT 4.5A
CURRENT RANGE 0-4.5A
RATED POWER 22.5W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±6.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±6.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 16ms / 230VAC 10ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 80.00%
AC CURRENT 0.9A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.25-7.5V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22 3rd Edition, TUV BS EN/EN60601-1 / BS EN/EN60601-1-11, EAC TP TC 004 approved
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 235g ; 60pcs / 15.1Kg / CARTON

Meanwell GSM36B05-P1J Features

l  2 pole AC inlet IEC320-C8, ClassⅡpower unit

l  Extremely low leakage current

l  No load power consumption<0.1 W

l  Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V)

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11

Meanwell GSM36B05 Price and Specs 36W AC-DC Medical Adaptor GSM36B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole YCICT

Meanwell GSM36B05-P1J Applications

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM36B05 Price and Specs 36W AC-DC Medical Adaptor GSM36B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole 5v YCICT

Meanwell GSM36B05-P1J Mechanical Diagram

Meanwell GSM36B05 Price and Specs 36W AC-DC Medical Adaptor GSM36B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole 4.5a YCICT
