GSM25U12-P1J
12.19

GSM25U12-P1J

$12.19

Meanwell 25W AC-DC Reliable Green Medical Adaptor with 12V2.08A0-2.08A25W120mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM25U12-P1J
Brand Meanwell
Details

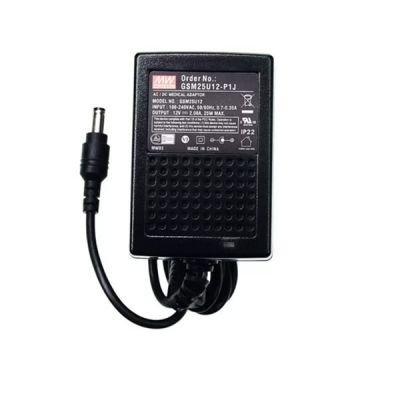

Meanwell GSM25U12 is 25W AC-DC Reliable Green Medical Adaptor with 12V2.08A0-2.08A25W120mVp-p. The item outstands single-output, wall-mounted style and high reliability. It is equipped with a 2-pin (no FG) standard USA AC power plug. At the same time, GSM25U12 adopts input range from 80VAC to 264VAC, supplied with output voltage 12VDC. Therefore, it is able to satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP) with ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. As the efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W, GSM25U12 is compliant with USA EISA 2007/DoE and Canada NRCan. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The unit utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSM25U12 is approved with the international medical safety certificates as well. In view of its high safety, high quality and high efficiency, Meanwell GSM25U12 serves as an ideal power supply solution for various types of medical electronic devices.Meanwell GSM25U12 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI Class II 12V YCICT

Meanwell GSM25U12-P1J Encoding

GSM Series Name
25 Rated Wattage
U US 2 pin AC Plug
12 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM25U12-P1J Specifications

ORDER NO. GSM25U12-P1J
OUTPUT SAFETY MODEL NO. GSM25U12
DC VOLTAGE 12V
RATED CURRENT 2.08A
CURRENT RANGE 0-2.08A
RATED POWER 25W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT 0.7A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output powe
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 12.6-17.2V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVA
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 215g ; 60pcs / 13.9Kg / CARTON

Meanwell GSM25U12-P1J Features

l  3 years warranty

l  LED indicator for power on

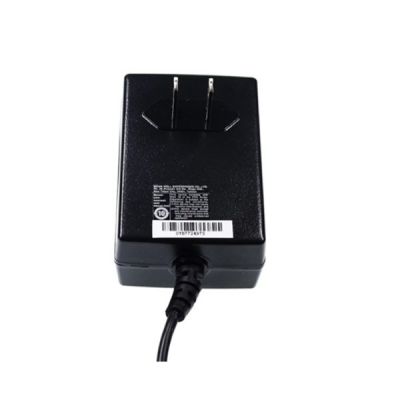

l  2 pole USA plug, Class II power unit

l  Extremely low leakage current

l  No load power consumption<0.1W

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  Various DC plug quick adapter accessory available

l  Energy efficiency Level VI (except 5~9V for Level V)

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-1 1

Meanwell GSM25U12 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI Class II 2.08A YCICT

Meanwell GSM25U12-P1J Applications

l  Blood qlucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM25U12 Price and Specs 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI 2.08A 12V YCICT

Meanwell GSM25U12-P1J Mechanical Diagram

Meanwell GSM25U12 Price and Datasheet 25W AC-DC Medical Adaptor GSM25U05 07 09 12 15 18 24 48 Level VI 2.08A 12V YCICT
