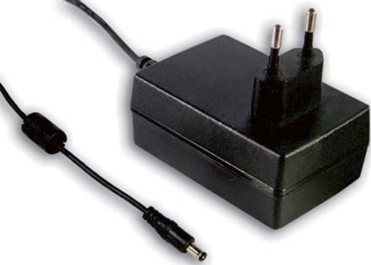

Meanwell GSM25E Series is 25W AC-DC Green Medical Adaptor. The product features single-output, wall-mounted and high reliability. It is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. At the same time, the entire series supplies different output voltages between 5VDC and 48VDC. So that it can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2XMOPP), having an ultra-low leakage current (<50uA), fitting the medical devices in direct electrical contact with the patients. Furthermore, the work efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W. GSM25E is compliant with EU ErP, and meet Code of Conduct (CoC) Version 5. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, providing double insulation which effectively prevents electrical shock. GSM25E is approved with the international medical safety certificates as well. Considering its high safety, high quality and high efficiency, Meanwell GSM25E Series serves as an ideal power supply solution for various types of medical electronic devices.
Meanwell GSM25E Series Encoding
| GSM | Series Name |
| 25 | Rated Wattage |
| E | European 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC Plug Type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GSM25E Series Model Specifications
| ORDER NO. | GSM25E05-P1J | GSM25E07-P1J | GSM25E09-P1J | GSM25E12-P1J | GSM25E15-P1J | GSM25E18-P1J | GSM25E24-P1J | GSM25E48-P1J | |
| OUTPUT | SAFETY MODEL NO. | GSM25E05 | GSM25E07 | GSM25E09 | GSM25E12 | GSM25E15 | GSM25E18 | GSM25E24 | GSM25E48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 4A | 2.93A | 2.77A | 2.08A | 1.66A | 1.38A | 1.04A | 0.52A | |
| CURRENT RANGE | 0-4A | 0-2.93A | 0-2.77A | 0-2.08A | 0-1.66A | 0-1.38A | 0-1.04A | 0-0.52A | |
| RATED POWER | 20W | 22W | 25W | 25W | 25W | 25W | 25W | 25W | |
| RIPPLE & NOISE (max.) | 60mVp-p | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ±6.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±6.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load | ||||||||
| HOLD UP TIME (Typ.) | 16ms / 230VAC 16ms / 115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 84.00% | 86.00% | 86.00% | 86.00% | 87.00% | 88.00% | |
| AC CURRENT | 0.7A / 115VAC 0.35A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | 55A / 230VAC 30A / 115VAC | ||||||||
| LEAKAGE CURRENT(max.) | Touch current < 50μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 170% rated output power | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 5.25-7.5V | 7.88-10.5V | 9.45-13V | 12.6-17.2V | 15.75-20.25V | 18.9-25.2V | 25.2-32.4V | 50.4-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +60℃(Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃(0~40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV EN60601-1 / EN60601-1-11, EAC TP TC 004 approved | |||||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | EN55011 (CISPR11) | Class B | |||||||
| Radiated emission | EN55011 (CISPR11) | Class B | |||||||
| Harmonic current | EN61000-3-2 | Class A | |||||||
| Voltage flicker | EN61000-3-3 | ---- | |||||||
| EMC IMMUNITY | EN60601-1-2, EN61204-3 | ||||||||
| Parameter | Standard | Test Level | |||||||
| ESD | EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||||
| RF field susceptibility | EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||||
| EFT bursts | EN61000-4-4 | Level 3, 2KV | |||||||
| Surge susceptibility | EN61000-4-5 | Level 3, 1KV/Line-Line | |||||||
| Conducted susceptibility | EN61000-4-6 | Level 3, 10V | |||||||
| Magnetic field immunity | EN61000-4-8 | Level 4, 30A/m | |||||||
| Voltage dip, interruption | EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||||
| Others | MTBF | 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 79*54*33mm (L*W*H) | ||||||||
| PACKING | 230g ; 60pcs / 14.8Kg / CARTON | ||||||||
Meanwell GSM25E Series Features
l 2 pole EURO plug, Class Il power unit
l Medical safety approved (2xMOPP) according to EN60601-1/-1-11
l Extremely low leakage current
l No load power consumption<0.1 W
l Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V )
l -25~+60℃ wide range working temperature
l Protections: Short circuit/Overload/Over voltage
l LED indicator for power on
l Various DC plug quick adapter accessory available
l 3 years warranty
Meanwell GSM25E Series Applications
l Blood glucose meter
l Blood pressure meter
l Nebulizer
l Inhaler
l Portable medical device

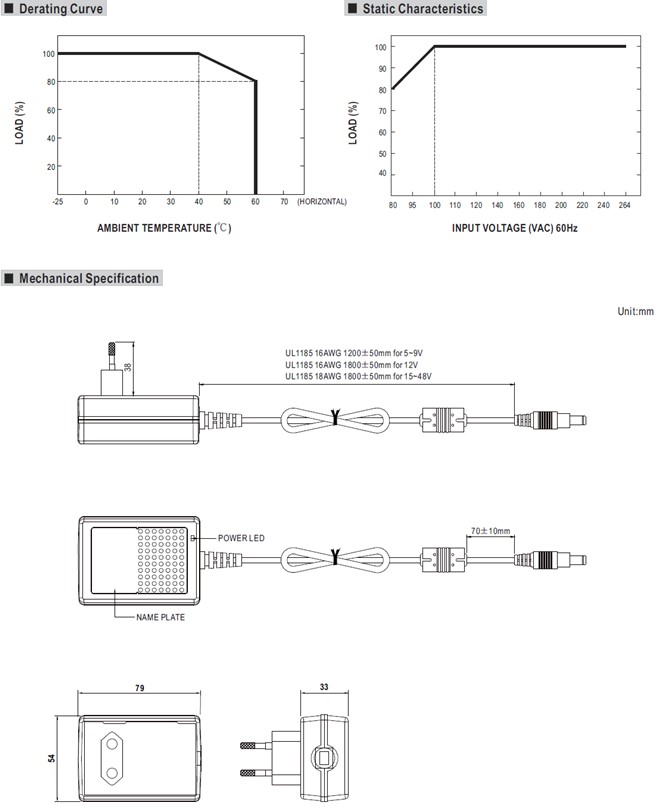

Meanwell GSM25E Series Mechanical Diagram
