GSM25E09-P1J
12.59

GSM25E09-P1J

$12.59

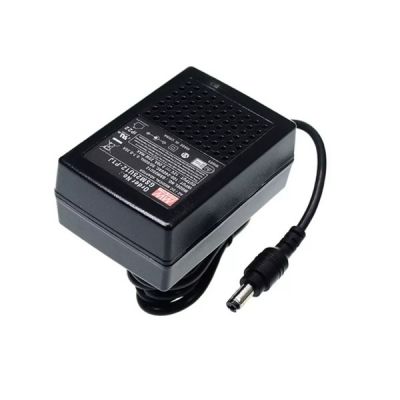

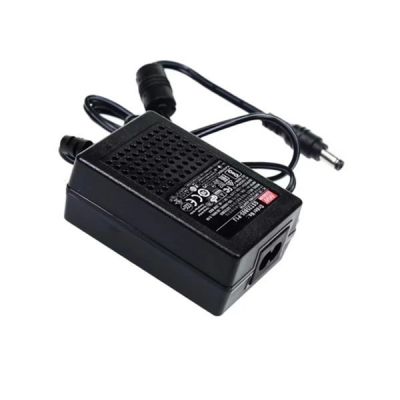

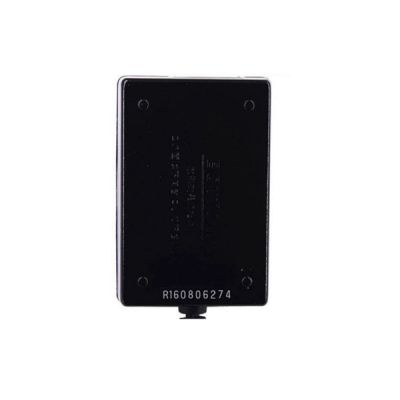

Meanwell 25W AC-DC Reliable Green Medical Adaptor with 9V2.77A0-2.77A25W80mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM25E09-P1J
Brand Meanwell
Details

Meanwell GSM25E09 is 25W AC-DC Green Medical Adaptor with 9V2.77A0-2.77A25W80mVp-p. The item outstands single-output, wall-mounted and high reliability. It is equipped with a 2-pin (no FG) standard European power plug. GSM25E09 adopts the input range from 80VAC to 264VAC with output voltage 9VDC. Therefore, it could satisfy the demands for various kinds of miniature medical devices. At the same time, the circuitry design meets the international medical standards (2XMOPP) with an ultra-low leakage current (<50uA), and fits the medical devices in direct electrical contact with the patients. The work efficiency reaches high up to 88% and extreme low no-load power consumption below 0.1W. GSM25E09 is compliant with EU ErP, and meet Code of Conduct (CoC) Version 5. Apart from them, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. GSM25E09 is approved with the international medical safety certificates as well. In light of its high safety, high quality and high efficiency, Meanwell GSM25E09 serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM25E09 Price and Specs 25W AC-DC Green Medical Adaptor GSM25E05 07 09 12 15 18 24 48 euro type 9V 2.77A ycict

Meanwell GSM25E09-P1J Encoding

GSM Series Name
25 Rated Wattage
E European 2 pin AC Plug
9 Output Voltage
P1J DC Plug Type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GSM25E09-P1J Specifications

ORDER NO. GSM25E09-P1J
OUTPUT SAFETY MODEL NO. GSM25E09
DC VOLTAGE 9V
RATED CURRENT 2.77A
CURRENT RANGE 0-2.77A
RATED POWER 25W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 16ms / 230VAC 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 84.00%
AC CURRENT 0.7A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 9.45-13V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN60601-1 / EN60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY EN60601-1-2, EN61204-3
Others MTBF 3887.1K hrs min. Telcordia SR-332 (Bellcore) ; 791.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 230g ; 60pcs / 14.8Kg / CARTON

Meanwell GSM25E09-P1J Features

l  3 years warranty

l  2 pole EURO plug, Class Il power unit

l  Extremely low leakage current

l  No load power consumption<0.1 W

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  Medical safety approved (2xMOPP) according to EN60601-1/-1-11

l  Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V )

Meanwell GSM25E09 Price and Specs 25W AC-DC Green Medical Adaptor GSM25E05 07 09 12 15 18 24 48 2 pole 9V 2.77A ycict

Meanwell GSM25E09-P1J Applications

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM25E09 Price and Specs 25W AC-DC Green Medical Adaptor GSM25E05 07 09 12 15 18 24 48 Euro type ycict

Meanwell GSM25E09-P1J Mechanical Diagram

Meanwell GSM25E09 Price and Datasheet 25W AC-DC Green Medical Adaptor GSM25E05 07 09 12 15 18 24 48 Euro type ycict
