GSM220B24-R7B
27.93

GSM220B24-R7B

$27.93

Meanwell 220W AC-DC Reliable Green Medical Adaptor with 24V9.2A0-9.2A221W120mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM220B24-R7B
Brand Meanwell
Details

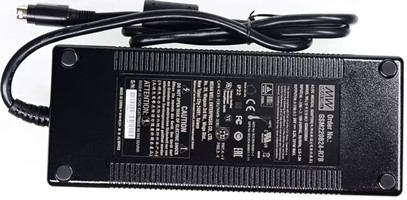

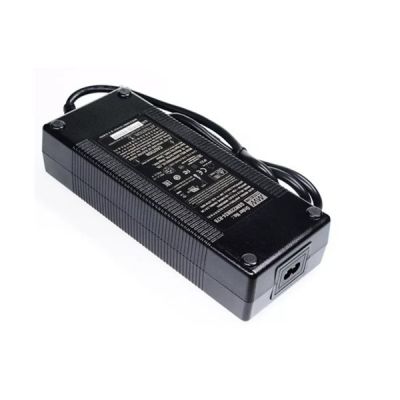

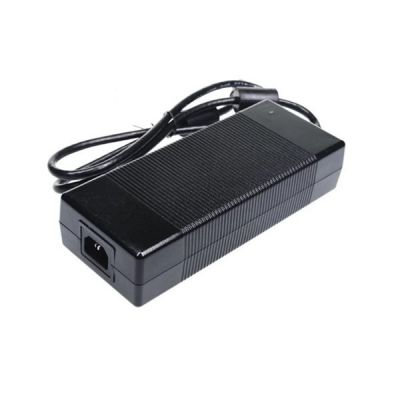

Meanwell GSM220B24 is a 220W AC-DC Green Medical Adaptor with 24V9.2A0-9.2A221W120mVp-p. The model highlights desktop style, single-output and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. GSM220B24 adopts the input range from 80VAC to264VAC with output voltage 24VDC, so that it could satisfy the demands for various kinds of medical electrical devices. Meanwhile, the circuitry design meets the international medical standards (2*MOPP), having an ultra-low leakage current (<100uA), and fitting the medical devices indirect electrical contact with the patients. The efficiency reaches high up to 94.5% and extremely low no-load power consumption below 0.15W. What’s more, GSM220B24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. Furthermore, the unit utilizes the 94V-0 flame retardant plastic case, offering the double insulation, which effectively prevents electrical shock. It is also approved with the international medical safety certificates. In view of its longevity, high efficiency, and excellent performance, Meanwell GSM220B24 serves as an ideal power supply solution for various types of medical electronic device.

Meanwell GSM220B24 price and Specs 220W AC-DC Adaptor GSM220B GSM220B12 GSM220B15 GSM220B20 GSM220B48 24v YCICT

Meanwell GSM220B24-R7B Encoding

GSM Series Name
220 Rated Wattage
B IEC320-C8 AC Inlet
24 Output Voltage

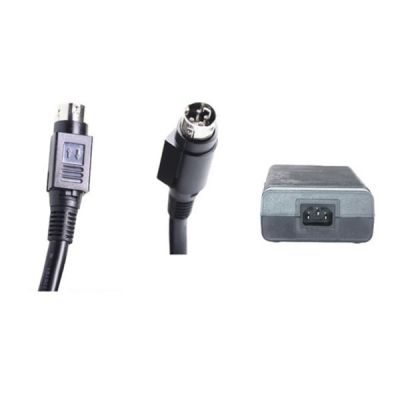

R7B- DC plug type R7B: Stаndаrd mоdеl, Power DIN 4Pin with lock type
Other Options available by customer requested

Meanwell GSM220B24-R7B Specifications

ORDER NO. GSM220B24-R7B
OUTPUT SAFETY MODEL NO. GSM220B24
DC VOLTAGE 24V
RATED CURRENT 9.2A
CURRENT RANGE 0-9.2A
RATED POWER (max.) 221W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
HOLD UP TIME (Typ.) 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
SETUP, RISE, HOLD UP TIME 24ms / 230VAC 24ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.91 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 93.50%
AC CURRENT 4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.) Cold start 90A / 115VAC 110A / 230VAC
LEAKAGE CURRENT(max.) Touch current < 100 A/264VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
OPERATING ALTITUDE 3000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC60601-1/IEC60601-1-11, BS EN/EN60601-1/ BS EN/EN60601-1-11, ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version),
CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004, KC K60950-1 (for GSM220B24 only) approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P: 4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 1953.3K hrs min. Telcordia SR-332 (Bellcore) ; 208.7K hrs min. MIL-HDBK-217F (25)
DIMENSION 210*85*46mm (L*W*H)
PACKING 1.1Kg; 12pcs/14.2Kg/0.81CUFT

Meanwell GSM220B24-R7B Features

l  3 years warranty

l  Lifetime > 70K hours

l  Extremely low leakage current

l  No load power consumption<0.15W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  LED indicator for power on

l  2 pole AC inlet lEC320-C8, ClassⅡpower unit

l  Various DC plug quick adapter accessory available

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11

Meanwell GSM220B24 price and Specs 220W AC-DC Adaptor GSM220B GSM220B12 GSM220B15 GSM220B20 GSM220B48 24v 9.2a YCICT

Meanwell GSM220B24-R7B Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM220B24 price and Specs 220W AC-DC Adaptor GSM220B GSM220B12 GSM220B15 GSM220B20 GSM220B48 2 pole YCICT

Meanwell GSM220B24-R7B Mechanical Diagram

Meanwell GSM220B24 price and Datasheet 220W AC-DC Adaptor GSM220B GSM220B12 GSM220B15 GSM220B20 GSM220B48 YCICT
