GSM220A24-R7B
27.91

GSM220A24-R7B

$27.91

Meanwell 220W AC-DC Reliable Green Medical Adaptor with 24V9.2A0-9.2A221W120mVp-p±3.0%±1.0%±3.0%

- +
Availability:In stock
SKU Meanwell GSM220A24-R7B
Brand Meanwell
Details

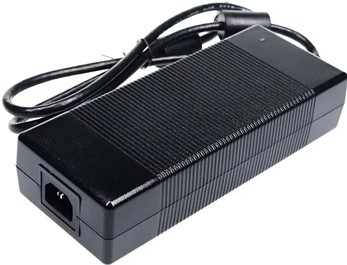

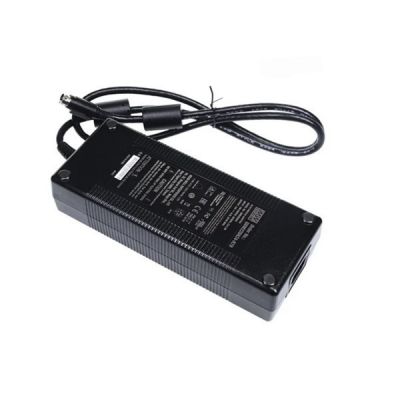

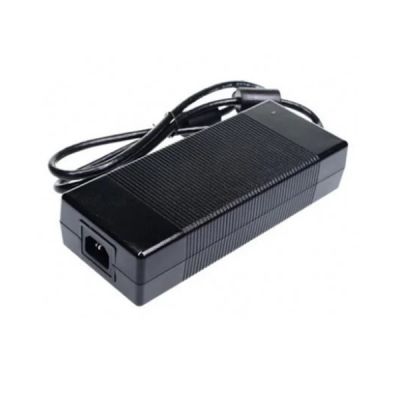

Meanwell GSM220A24 is a 220W AC-DC Green Medical Adaptor with 24V9.2A0-9.2A221W120mVp-p. The model stands out with single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM220A24 adopts input range from 80VAC to 264VAC with output voltage 24VDC, so that it could satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), providing an ultra-low leakage current (<100uA), and fits the medical devices indirect electrical contact with the patients. What’s more, the work efficiency reaches high up to 94.5% and extremely low no-load power consumption below 0.15W. GSM220A24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meets Code of Conduct (CoC) Version 5. In addition, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. In view of its longevity, high efficiency, and excellent performance, Meanwell GSM220A24 serves as an ideal power supply solution for various types of medical electronic device.Meanwell GSM220A24 Price and Specs 220W AC-DC Adaptor GSM220A GSM220A12 GSM220A15 GSM220A20 GSM220A48 24v YCICT

Meanwell GSM220A24-R7B Encoding

GSM Series Name
220 Rated Wattage
A IEC320-C14 AC inlet
24 Output voltage
R7B- DC plug type R7B: Standard model, Power DIN 4Pin with lock type
Other Options available by customer requested

Meanwell GSM220A24-R7B Specifications

ORDER NO. GSM220A24-R7B
OUTPUT SAFETY MODEL NO. GSM220A24
DC VOLTAGE 24V
RATED CURRENT 9.2A
CURRENT RANGE 0-9.2A
RATED POWER (max) 221W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±3.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±3.0%
SETUP, RISE TIME 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.) 20ms / 230VAC 20ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.91 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 93.50%
AC CURRENT (Typ.) 4A / 115VAC 2A / 230VAC
INRUSH CURRENT (Typ.) Cold start 90A / 115VAC 110A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 115 A/264VAC , Touch current <100 A/264VAC
PROTECTION OVERLOAD 105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1,TUV BS EN/EN60601-1,ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22.2 No. 60601-1:14 - Edition 3,EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 2028.6K hrs min. Telcordia SR-332 (Bellcore) ; 210.8K hrs min. MIL-HDBK-217F (25)
DIMENSION 210*85*46mm (L*W*H)
PACKING 1.1Kg; 12pcs/14.2Kg/0.87CUFT

Meanwell GSM220A24-R7B Features

l  3 years warranty

l  LED indicator for power on

l  Lifetime>80K hours

l  Extremely low leakage current

l  No load power consumption<0.1 5W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Various DC plug quick adapter accessory available

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

Meanwell GSM220A24 Price and Specs 220W AC-DC Adaptor GSM220A GSM220A12 GSM220A15 GSM220A20 GSM220A48 9.2a YCICT

Meanwell GSM220A24-R7B Applications

l  Oral irrigator

l  Breath Machine

l  Medical computer monitor

l  Mobile clinical workstation

l  Portable hemodialysis machine

Meanwell GSM220A24 Price and Specs 220W AC-DC Adaptor GSM220A GSM220A12 GSM220A15 GSM220A20 GSM220A48 24v 9.2a YCICT

Meanwell GSM220A24-R7B Mechanical Diagram

Meanwell GSM220A24 Price and Datasheet 220W AC-DC Adaptor GSM220A GSM220A12 GSM220A15 GSM220A20 GSM220A48 24v 9.2a YCICT
