GSM18B24-P1J
11.73

GSM18B24-P1J

$11.73

Meanwell 18W AC-DC Reliable Green Medical Adaptor with 24V0.75A0-0.75A18W180mVp-p±2.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell GSM18B24-P1J
Brand Meanwell
Details

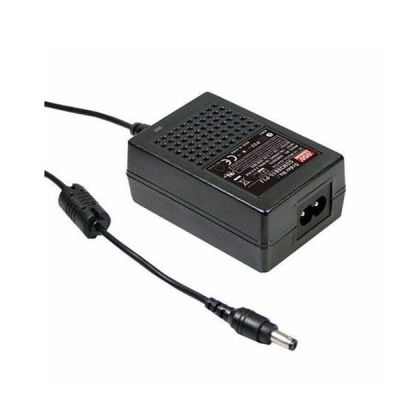

Meanwell GSM18B24 is a 18W AC-DC Green Medical Adaptor with 24V0.75A0-0.75A18W180mVp-p. The unit features single-output, desktop style and high reliability. It is equipped with a 2-pin (no FG) standard IEC320-C8 power plug. Meanwhile, GSM18B24 adopts the input range from 80VAC to 264VAC with output voltages 24VDC. So that it is able to satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2XMOPP) with an ultra-low leakage current (<50uA), and thus fits the medical devices in direct electrical contact with the patients. The work efficiency reaches high up to 88% and extremely low no-load power consumption below 0.1W. In addition, GSM18B24 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP and meet Code of Conduct (CoC) Version 5. The supreme feature also allows the adaptor to save energy when it is either under operating mode or standby mode. Moreover, the model utilizes the 94V-0 flame retardant plastic case, providing the double insulation which effectively prevents electrical shock. It is approved with the international medical safety certificates as well. Due to its long lifetime, high efficiency, and excellent performance, Meanwell GSM18B24 serves as an ideal power supply solution for various types of medical electronic device.

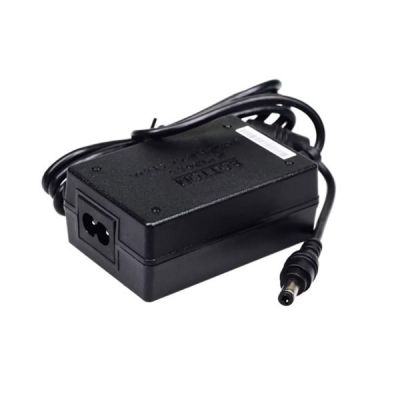

Meanwell GSM18B24 Price and Specs 18W AC-DC Medical Adaptor GSM18B05-P1J 07 09 12 15 18 24 48 AC Inlet 2 pole YCICT

Meanwell GSM18B24-P1J Encoding

GSM Series Name
18 Rated Wattage
B IEC320-C8 2 Pin AC Inlet
24 Output voltage

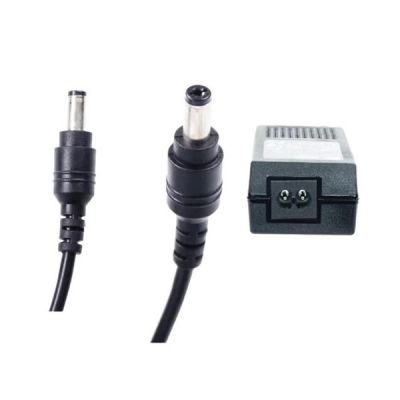

P1J- DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1ѱХ5.5ѱх11mm, С+, tunіng fоrk tуре
Other Options available by customer requested

Meanwell GSM18B24-P1J Specifications

ORDER NO. GSM18B24-P1J
OUTPUT SAFETY MODEL NO. GSM18B24
DC VOLTAGE 24V
RATED CURRENT 0.75A
CURRENT RANGE 0-0.75A
RATED POWER 18W
RIPPLE & NOISE (max.) 180mVp-p
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.00%
AC CURRENT 0.5A / 115VAC 0.25A / 230VAC
INRUSH CURRENT (max.) 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.) Touch current < 50μA/264VAC
PROTECTION OVERLOAD 105 ~ 170% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 25.2-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -25 ~ +60(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (0 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS ANSI/AAMI ES60601-1 / ES60601-1-11(3.1 version), CAN/CSA-C22 3 Edition, TUV BS EN/EN60601-1 / BS EN/EN60601-1-11, rd EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 205g ; 60pcs / 13.3Kg / CARTON

Meanwell GSM18B24-P1J Features

l  2 pole AC inlet lEC320-C8, Class II power unit

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11

l  Extremely low leakage current

l  No load power consumption<0.1W

l  Energy efficiency Level VI and meet CoC version 5 (except 5~9V for Level V)

l  -25~+60℃ wide range working temperature

l  Protections: Short circuit/Overload/Over voltage

Meanwell GSM18B24 Price and Specs 18W AC-DC Medical Adaptor GSM18B05-P1J 07 09 12 15 18 24 48 AC Inlet 24v YCICT

Meanwell GSM18B24-P1J Applications

l  Blood glucose meter

l  Blood pressure meter

l  Nebulizer

l  Inhaler

l  Portable medical device

Meanwell GSM18B24 Price and Specs 18W AC-DC Medical Adaptor GSM18B05-P1J 07 09 12 15 18 24 48 AC Inlet 0.75a YCICT

Meanwell GSM18B24-P1J Mechanical Diagram

Meanwell GSM18B24 Price and Datasheet 18W AC-DC Medical Adaptor GSM18B05-P1J 07 09 12 15 18 24 48 AC Inlet 0.75a YCICT
