GSM160A20-R7B
24.82

GSM160A20-R7B

$24.82

Meanwell 160W AC-DC Reliable Green Medical Adaptor with 20V8A0-8A160W100mVp-p±4.0%±1.0%±4.0%

- +
Availability:In stock
SKU Meanwell GSM160A20-R7B
Brand Meanwell
Details

Meanwell GSM160A20 is 160W AC-DC Green Medical Adaptor with 20V8A0-8A160W100mVp-p. The item stands out with single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. GSM160A20 adopts the input range from 80VAC to 264VAC with output voltage 20VDC. Therefore, it could satisfy the demands for various kinds of medical electrical devices. At the same time, the circuitry design meets the international medical standards (2*MOPP) with an ultra-low leakage current (<100uA), and fits the medical devices in direct electrical contact with the patients. The work efficiency reaches high up to 94% and extremely low no-load power consumption below 0.15W. Moreover, GSM160A20 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. Furthermore, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product also utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. In light of its longevity, high efficiency, and excellent performance, Meanwell GSM160A20 serves as an ideal power supply solution for various types of medical electronic devices.Meanwell GSM160A20 Price and Specs 160W AC-DC Adaptor GSM160A GSM160A12 GSM160A15 GSM160A24 GSM160A48 20v 8a YCICT

Meanwell GSM160A20-R7B Encoding

GSM Series Name
160 Rated Wattage
A IEC320-C14 AC inlet
20 Output voltage

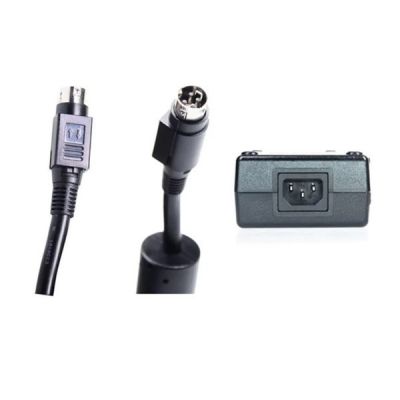

R7B- DC plug type R7B: Standard model, Power DIN 4Pin with lock type
Other Options available by customer requested

Meanwell GSM160A20-R7B Specifications

ORDER NO. GSM160A20-R7B
OUTPUT SAFETY MODEL NO. GSM160A20
DC VOLTAGE 20V
RATED CURRENT 8A
CURRENT RANGE 0-8A
RATED POWER (max) 160W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±4.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±4.0%
SETUP, RISE TIME 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.) 24ms / 230VAC 24ms / 115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 12V,15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.) 92.50%
AC CURRENT (Typ.) 1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.) Cold start 90A / 115VAC 110A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 175 A/264VAC , Touch current <90 A/264VAC
PROTECTION OVERLOAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recove
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 2200.0K hrs min. Telcordia SR-332 (Bellcore) ; 239.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 175*72*35mm (L*W*H)
PACKING 0.66Kg; 20pcs/14.2Kg/0.95CUFT

Meanwell GSM160A20-R7B Features

l  3 years warranty

l  Lifetime>85 K hours

l  Extremely low leakage current

l  No load power consumption<0.15W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 pole AC inlet IEC320-C14, Class I power unit

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1

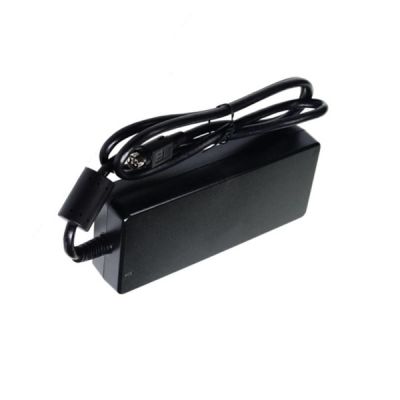

Meanwell GSM160A20 Price and Specs 160W AC-DC Adaptor GSM160A GSM160A12 GSM160A15 GSM160A24 GSM160A48 20v YCICT

Meanwell GSM160A20-R7B Applications

l  Oral irrigator

l  Breath Machine

l  Medical computer monitor

l  Mobile clinical workstation

l  Portable hemodialysis machine

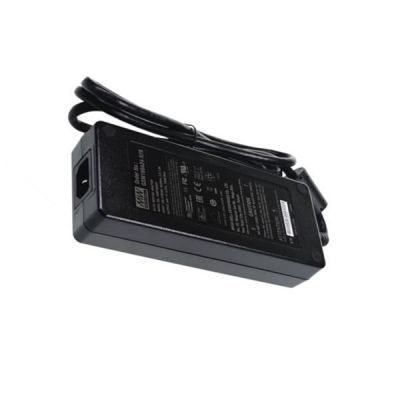

Meanwell GSM160A20 Price and Specs 160W AC-DC Adaptor GSM160A GSM160A12 GSM160A15 GSM160A24 GSM160A48 8a YCICT

Meanwell GSM160A20-R7B Mechanical Diagram

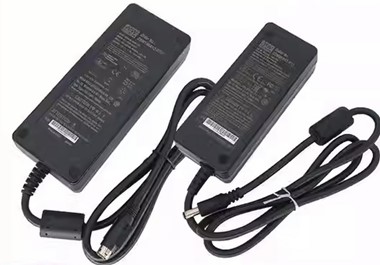

Meanwell GSM160A20 Price and Datasheet 160W AC-DC Adaptor GSM160A GSM160A12 GSM160A15 GSM160A24 GSM160A48 8a YCICT
