GSM120A15-R7B
17.85

GSM120A15-R7B

$17.85

Meanwell120W AC-DC Reliable Green Medical Adaptor with 15V7A0-7A105W120mVp-p±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell GSM120A15-R7B
Brand Meanwell
Details

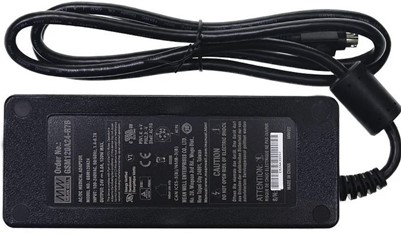

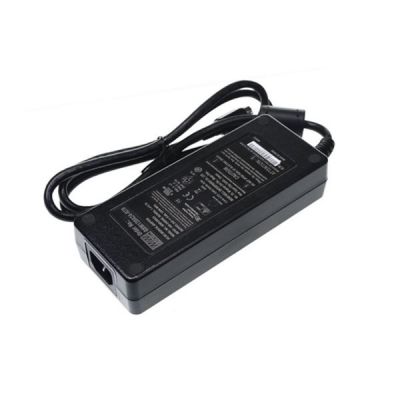

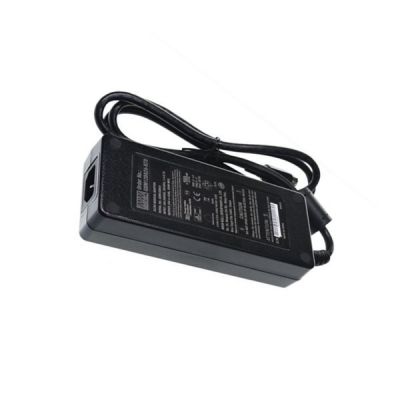

Meanwell GSM120A15 is a 120W AC-DC Green Medical Adaptor with 15V7A0-7A105W120mVp-p. The unit outstands single-output, desktop style and high reliability. It is equipped with a 3-pin (with FG) standard IEC320-C14 power plug. Meanwhile, GSM120A15 adopts the input range from 80VAC to264VAC with output voltage 15VDC. So that it can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), providing an ultra-low leakage current (<100uA), fitting the medical devices in direct electrical contact with the patients. What’s more, the work efficiency reaches high up to 91.5% and extremely low no-load power consumption below 0.15W. GSM120A15 is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP, and meet Code of Conduct (CoC) Version 5. In addition, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The product utilizes the 94V-0 flame retardant plastic case, and approved with the international medical safety certificates. Thanks to its longevity, high efficiency, and excellent performance, Meanwell GSM120A15 serves as an ideal power supply solution for various types of medical electronic devices.

Meanwell GSM120A15 Price and Specs 120W AC-DC Adaptor GSM120A GSM120A12 GSM120A20 GSM120A24 GSM120A48 7a YCICT

Meanwell GSM120A15-R7B Encoding

GSM Series Name
120 Rated Wattage
A IEC320-C14 AC inlet
15 Output voltage

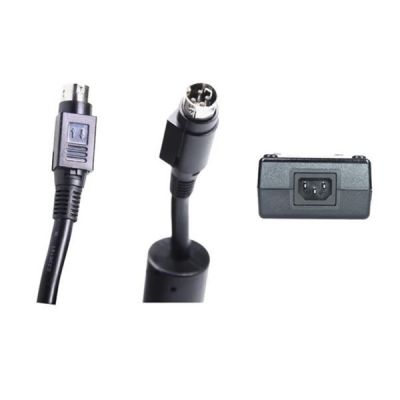

R7B- DC plug type R7B: Standard model, Power DIN 4Pin with lock type
Other Options available by customer requested

Meanwell GSM120A15-R7B Specifications

ORDER NO. GSM120A15-R7B
OUTPUT SAFETY MODEL NO. GSM120A15
DC VOLTAGE 15V
RATED CURRENT 7A
CURRENT RANGE 0-7A
RATED POWER (max) 105W
RIPPLE & NOISE (max.) 120mVp-p
VOLTAGE TOLERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE TIME 1500ms, 30ms / 230VAC 2000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 24ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 89.00%
AC CURRENT (Typ.) 1.4A / 115VAC 0.7A / 230VAC
INRUSH CURRENT (Typ.) Cold start 35A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.) Earth leakage current < 115μA/264VAC , Touch current <100μA/264VAC
PROTECTION OVERLOAD 105 ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 105 ~ 135% rated output voltage
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0~40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS IEC60601-1, TUV BS EN/EN60601-1, ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22.2 No. 60601-1:14 - Edition 3, EAC TP TC 004 approved
ISOLATION LEVEL Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2, BS EN/EN61204-3
Others MTBF 2413.9K hrs min. Telcordia SR-332 (Bellcore) ; 388.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 167*67*35mm (L*W*H)
PACKING 0.6Kg; 20pcs/13.0Kg/0.89CUFT

Meanwell GSM120A15-R7B Features

l  Lifetime>95K hours

l  Various DC plug quick adapter accessory available

l  3 years warranty

l  3 pole AC inlet IEC320-C14, Class I power unit

l  Extremely low leakage current

l  No load power consumption<0.15W

l  Energy efficiency level VI and meet CoC Version 5

l  -30~+70℃  wide range working temperature

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  LED indicator for power on

l  Medical safety approved (2XMOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1

Meanwell GSM120A15 Price and Specs 120W AC-DC Adaptor GSM120A GSM120A12 GSM120A20 GSM120A24 GSM120A48 15v 7a YCICT

Meanwell GSM120A15-R7B Applications

l  Mobile clinical workstation

l  Oral irrigator

l  Portable hemodialysis machine

l  Breath Machine

l  Medical computer monitor

Meanwell GSM120A15 Price and Specs 120W AC-DC Adaptor GSM120A GSM120A12 GSM120A20 GSM120A24 GSM120A48 3 pole YCICT

Meanwell GSM120A15-R7B Mechanical Diagram

Meanwell GSM120A15 Price and Datasheet 120W AC-DC Adaptor GSM120A GSM120A12 GSM120A20 GSM120A24 GSM120A48 15v YCICT
