GS06E
9.51
Details

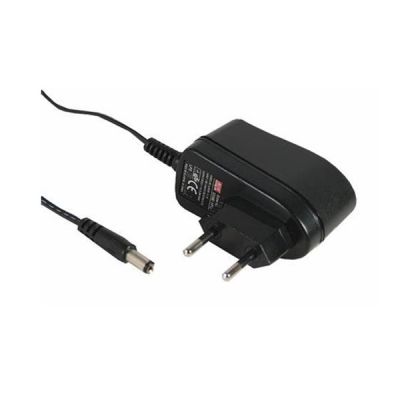

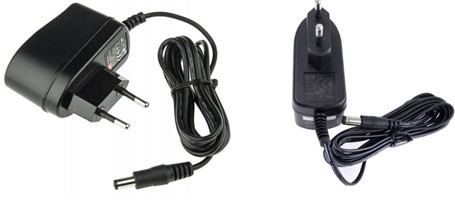

Meanwell GS06E Series is a 6W wall-mounted style single-output green adaptor. The product is a classⅡpower unit (no FG), equipped with a 2-Pin standard European AC power plug, and it adopts the input range from 90VAC to 264VAC. At the same time, GS06E supplies different models with output voltages ranging between 5VDC and 48VDC. So that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.075W, Meanwell GS06E is compliant with EU ErP, and meet Code of Conduct (CoC) Version 5. In addition, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case with the double insulation, which could effectively prevent electrical shock. GS06E is certified for the international safety regulations as well. Considering its high safety, high quality and high reliability, Meanwell GS06E Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GS06E Series Encoding
| GS | Series Name |
| 6 | Rated Wattage |
| E | EURO 2 pin AC Plug |
| 1 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GS06E Series Model Specifications
| ORDER NO. | GS06E-1P1J | GS06E-11P1J | GS06E-2P1J | GS06E-3P1J | GS06E-4P1J | GS06E-5P1J | GS06E-6P1J | GS06E-8P1J | |
| OUTPUT | SAFETY MODEL NO. | GS06E-1 | GS06E-1-1 | GS06E-2 | GS06E-3 | GS06E-4 | GS06E-5 | GS06E-6 | GS06E-8 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 1.00A | 0.8A | 0.66A | 0.5A | 0.4A | 0.33A | 0.25A | 0.125A | |
| CURRENT RANGE | 0.01-1.00A | 0.01-0.8A | 0.01-0.66A | 0.01-0.5A | 0.01-0.4A | 0.01-0.33A | 0.01-0.25A | 0.01-0.125A | |
| RATED POWER | 5W | 6W | 6W | 6W | 6W | 6W | 6W | 6W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 120mVp-p | 150mVp-p | 180mVp-p | 200mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 68.00% | 80.00% | 75.00% | 77.00% | 79.50% | 81.00% | 81.00% | 83.00% | |
| AC CURRENT | 0.2A / 100VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | >105% rated output power for 5V ; >110% rated output power for 7.5 ~ 48V | |||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | >120% rated output voltage | ||||||||
| Protection type : Clamp by zener diode | |||||||||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | BS EN/EN55032(CISPR32) | Class B | |||||||
| Radiated emission | BS EN/EN55032(CISPR32) | Class B | |||||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | |||||||
| Voltage flicker | BS EN/EN61000-3-3 | ------- | |||||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact | |||||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 1KV/L-N | |||||||
| Surge susceptibility | BS EN/EN61000-4-6 | Level 1, 1A/m | |||||||
| Conducted susceptibility | BS EN/EN61000-4-5 | Level 2, 3V | |||||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 2, 1KV | |||||||
| Voltage dips , interruption | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods |
|||||||
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) | |||||||
| DIMENSION | 32*66*42.5mm (L*W*H) | ||||||||
| PACKING | 100g ; 90pcs / 10Kg / CARTON | ||||||||
Meanwell GS06E Series Features
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Fully enclosed plastic case
l Pass LPS
l Various DC plug quick adapter accessory available
l 2 years warranty
Meanwell GS06E Series Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices

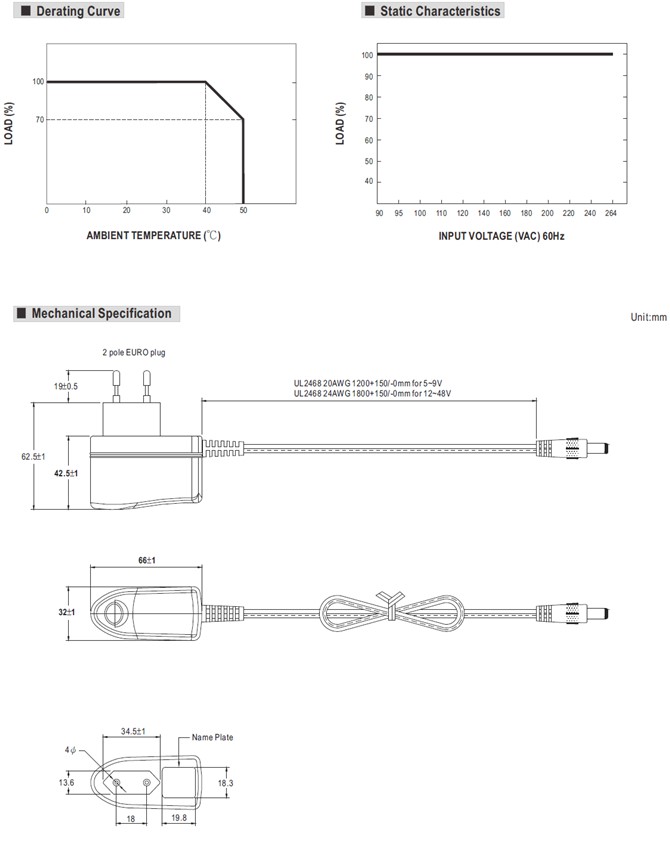

Meanwell GS06E Series Mechanical Diagram
