GS06E-2P1J
9.58
Details

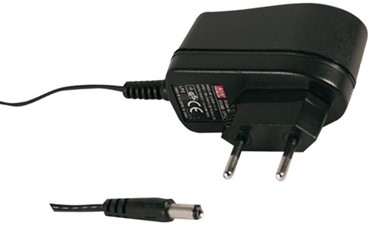

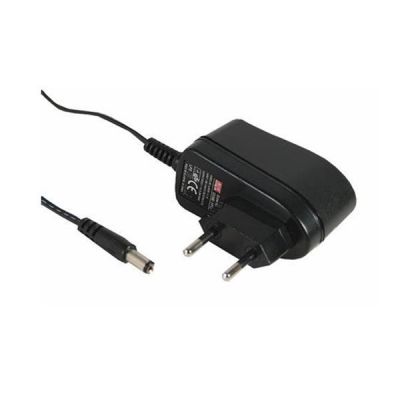

Meanwell GS06E-2P1J is a 6W AC-DC green adaptor with 9V0.66A0.01-0.66A6W80mVp-p. The item highlights single-output, wall-mounted style and high reliability. It is a classⅡpower unit (no FG), equipped with 2-Pin standard European AC power plug. GS06E-2P1J adopts the input range from 90VAC to 264VAC, provided with output voltage 9VDC. Therefore, it is able to meet the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 83% and extremely low no-load power consumption below 0.075W, Meanwell GS06E-2P1J is compliant with EU ErP, and meet Code of Conduct (CoC) Version 5. Moreover, the supreme feature allows the adaptor to save the energy when it is either under operating mode or standby mode. The model utilizes the 94V-0 flame retardant plastic case with the double insulation, which could effectively prevent electrical shock. GS06E-2P1J is also certified for the international safety regulations. In light of its high safety, high quality and high performance, Meanwell GS06E-2P1J serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GS06E-2P1J Encoding
| GS | Series Name |
| 6 | Rated Wattage |
| E | EURO 2 pin AC Plug |
| 2 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| Other Options available by customer requested |
Meanwell GS06E-2P1J Specifications
| ORDER NO. | GS06E-2P1J | |
| OUTPUT | SAFETY MODEL NO. | GS06E-2 |
| DC VOLTAGE | 9V | |
| RATED CURRENT | 0.66A | |
| CURRENT RANGE | 0.01-0.66A | |
| RATED POWER | 6W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 5ms at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 75.00% | |
| AC CURRENT | 0.2A / 100VAC | |
| INRUSH CURRENT (max.) | Cold start 30A/ 115VAC 50A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | >105% rated output power for 5V ; >110% rated output power for 7.5 ~ 48V |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | >120% rated output voltage | |
| Protection type : Clamp by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | 0 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| Others | Life | 500Khrs min. MIL-HDBK-217F(25℃) |
| DIMENSION | 32*66*42.5mm (L*W*H) | |
| PACKING | 100g ; 90pcs / 10Kg / CARTON | |
Meanwell GS06E-2P1J Features
l Pass LPS
l 2 years warranty
l Fully enclosed plastic case
l Universal AC input/Full range
l 2 pole EURO plug, ClassⅡpower unit
l No load power consumption<0.1 W
l Energy efficiency Level VI
l Comply with EU ErP and meet CoC Version 5
l Protections: Short circuit/Overload/Over voltage
l Various DC plug quick adapter accessory available
Meanwell GS06E-2P1J Applications
l Office facilities
l Industrial equipment
l Telecommunication devices
l Consumer electronic devices
Meanwell GS06E-2P1J Mechanical Diagram
