GP50A58F-R1B
8.19

GP50A58F-R1B

$8.19

Meanwell 50W AC-DC Triple Output Industrial Adaptor with 16V48V-16V2A0.15A2A0.4-2.0A30mA-150mA0.4-2.0A

- +
Availability:In stock
SKU Meanwell GP50A58F-R1B
Brand Meanwell
Details

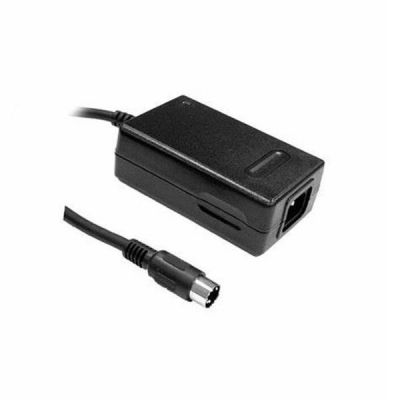

Meanwell GP50A58F is a 50W AC-DC green Industrial Adaptor with 16V48V-16V2A0.15A2A0.4-2.0A30mA-150mA0.4-2.0A. The unit features triple-output and desktop type. It complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). GP50A13D adopts Class I design and utilizes standard inlet IEC320-C14. At the same time, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. Meanwell GP50A58F operates from 90~264V AC and provides the model with the output voltage sets +16V/+48V/-16V. Moreover, its supreme advantages include less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. Apart from them, the model meets with the international safety certification such as CB, TUV, UL, CE and FCC. In view of its high safety, high reliability and high quality, Meanwell GP50A58F serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell GP50A58F Price and Specs 50W AC-DC Triple Output Industrial Adaptor plastic case Class I 16V 48V -16V YCICT

Meanwell GP50A58F-R1B Encoding

GP Series Name
50 Rated Wattage
A IEC320 C14 3pin AC input
58F Output Voltage
R1B DC plug type R1B: Plug for standard model power DIN 5 pin
Other Options available by customer requested

Meanwell GP50A58F-R1B Specifications

ORDER NO. GP50A58F-R1B
OUTPUT SAFETY MODEL NO. GP50A58F
DC VOLTAGE 16V 48V -16V
RATED CURRENT 2A 0.15A 2A
CURRENT RANGE 0.4-2.0A 30mA-150mA 0.4-2.0A
RATED POWER 71W
RIPPLE & NOISE (max.) 180mVp-p 180mVp-p 180mVp-p
VOLTAGE TOLERANCE ±5.0% -5.0-+10% -5.0-+10%
LINE REGULATION ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±5.0%
SETUP, RISE, HOLD UP TIME 1500ms, 50ms, 20ms / 230VAC 2500ms, 50ms, 16ms / 115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 135~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT 1.6A / 100VAC 0.8A / 230VAC
INRUSH CURRENT (max.) Cold start 35A/115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.75mA / 240VAC
PROTECTION OVERLOAD 120 ~ 200% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -20 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -20 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% / (-20 ~ 40)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 280K hrs min. MIL-HDBK-217F (25)
DIMENSION 146*75.5*43mm (L*W*H)
PACKING 0.55kg; 36pcs / 21kg / CARTON

Meanwell GP50A58F-R1B Features

l  3 years warranty

l  Energy efficiency level VI

l  Comply with EISA 2007/DoE

l  Fully enclosed plastic case

l  -20 ~+70℃ working temperature

l  LED indicator for power on

l  Dual output available (optional)

l  Universal AC input/Full range

l  No load power consumption <0.3W

l  3 pole AC inlet lEC320-C14, Class I power unit

l  Protections: Short circuit/Overload/Over voltage

l  ±16V/+48V also available for video system (optional, order NO.: GP50A58F-R1B)

Meanwell GP50A58F Price and Specs 50W AC-DC Triple Output Industrial Adaptor plastic case level VI 16V 48V -16V YCICT

Meanwell GP50A58F-R1B Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

Meanwell GP50A58F Price and Specs AC-DC Triple Output Industrial Adaptor plastic case level VI 16V 48V -16V 50W YCICT

Meanwell GP50A58F-R1B Mechanical Diagram

Meanwell GP50A58F Price and Datasheet AC-DC Triple Output Industrial Adaptor plastic case level VI 16V 48V -16V YCICT
