GP50A13D-R1B
8.12
Details

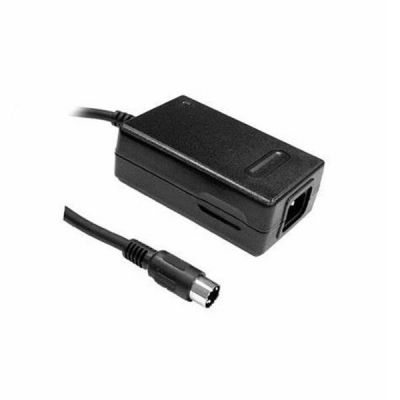

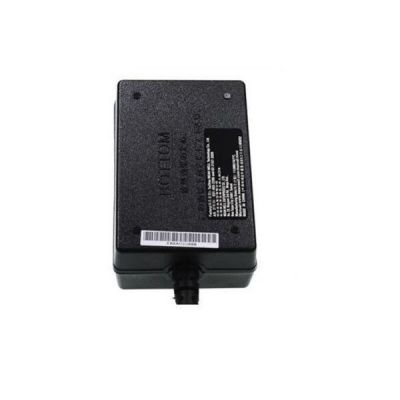

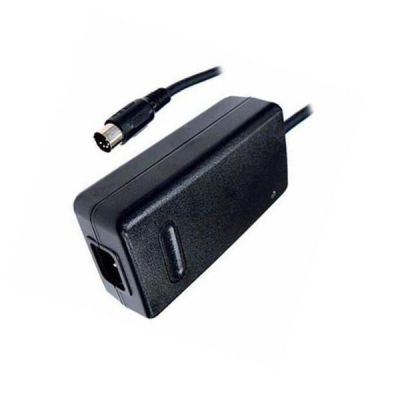

Meanwell GP50A13D is a 50W AC-DC green Industrial Adaptor with 5V12V-12V4A2A0.5A0-4.0A0.3-2.0A0.1-0.5A. The item outstands triple-output and desktop type. It complies with mandatory energy saving standard USA EISA 2007/DoE (Level VI). GP50A13D adopts Class I design and utilizes standard inlet IEC320-C14. At the same time, it is designed with FG and uses the 94V-0 flame retardant plastic enclosure, which can effectively prevent electric shock hazards. Meanwell GP50A13D works from 90~264V AC and provides the model with the output voltage sets +5V/+12V/-12V. Furthermore, its supreme advantages include less-than-0.3W no load power consumption, the capability of working under -20~+70℃ ambient temperature, complete protection functions and three-year warranty. In addition, the unit meets with the international safety certification such as CB, TUV, UL, CE and FCC. Thanks to its high safety, high reliability and high quality, Meanwell GP50A13D serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell GP50A13D-R1B Encoding
| GP | Series Name |
| 50 | Rated Wattage |
| A | IEC320 C14 3pin AC input |
| 13D | Output Voltage |
| R1B DC plug type | R1B: Plug for standard model power DIN 5 pin |
| Other Options available by customer requested |
Meanwell GP50A13D-R1B Specifications
| ORDER NO. | GP50A13D-R1B | |||
| OUTPUT | SAFETY MODEL NO. | GP50A13D | ||
| DC VOLTAGE | 5V | 12V | -12V | |
| RATED CURRENT | 4A | 2A | 0.5A | |
| CURRENT RANGE | 0-4.0A | 0.3-2.0A | 0.1-0.5A | |
| RATED POWER | 50W | |||
| RIPPLE & NOISE (max.) | 50mVp-p | 150mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±3.0% | -5.0-+8% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±3.0% | ±5.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 20ms / 230VAC 2500ms, 50ms, 16ms / 115VAC at full load | |||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 135~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 84.00% | |||
| AC CURRENT | 1.6A / 100VAC 0.8A / 230VAC | |||
| INRUSH CURRENT (max.) | Cold start 35A/115VAC 65A / 230VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA / 240VAC | |||
| PROTECTION | OVERLOAD | 120 ~ 200% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | Protection type : Clamp by zener diode, output short | |||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03% / ℃ (-20 ~ 40℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | IEC62368-1, UL62368-1, CSA22.2, BS EN/EN62368-1(Except for GP50A58F-R1B ), EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC , I/P-FG:2121VDC | |||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| Others | MTBF | 280K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 146*75.5*43mm (L*W*H) | |||
| PACKING | 0.55kg; 36pcs / 21kg / CARTON | |||
Meanwell GP50A13D-R1B Features
l 3 years warranty
l Universal AC input/Full range
l 3 pole AC inlet lEC320-C14, Class I power unit
l No load power consumption <0.3W
l Energy efficiency level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l -20 ~+70℃ working temperature
l LED indicator for power on
l Dual output available (optional)
l Protections: Short circuit/Overload/Over voltage
l ±16V/+48V also available for video system (optional, order NO.: GP50A58F-R1B)
Meanwell GP50A13D-R1B Applications
l Office facilities
l Industrial equipment
l Consumer electronic devices
l Telecommunication devices
Meanwell GP50A13D-R1B Mechanical Diagram
