EPS-15-12
11.39

EPS-15-12

$11.39

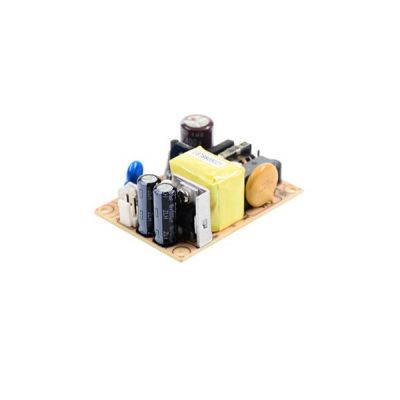

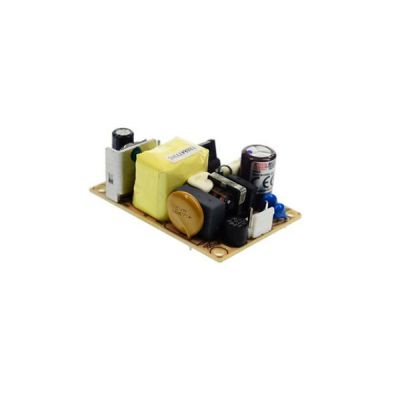

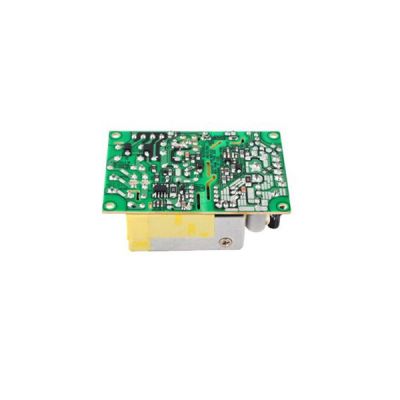

Meanwell 15W Single Output Switching Power Supply with 12V1.25A0-1.38A15W16.56W80mVp-p10.8-13.5V±1.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell EPS-15-12
Brand Meanwell
Details

Meanwell EPS-15-12 is 15W Single Output Switching Power Supply with 12V1.25A0-1.38A15W16.56W80mVp-p10.8-13.5V. The product is 37% smaller than the previous and 2∼8% more efficient. Moreover, it could be cooled by free air convection and operate under altitude up to 3000 meters. With the high efficiency up to 85% and the extremely low no-load power consumption <0.3W, EPS-15-12 complies with ErP specifications for end systems and Energy Star requirements. Considering its high reliability, low cost and longevity, Meanwell EPS-15-12 is fit for various applications such as factory automation, electrical and mechanical equipment and applications requiring low no-load power consumption.

Meanwell EPS-15-12 Specifications

Meanwell EPS-15-12 Specifications

Model EPS-15-12
OUTPUT DC VOLTAGE 12V
RATED CURRENT 1.25A
CURRENT RANGE 0-1.38A
RATED POWER 15W
PEAK LOAD (10sec.) 16.56W
RIPPLE & NOISE (max.) 80mVp-p
VOLTAGE ADJ. RANGE 10.8-13.5V
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 82.00%
AC CURRENT (Typ.) 0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 45A/230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION OVERL OAD 115 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.8-16.2V
Protection type : Shut down o/p voltage, Clamping by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE 3000 meters
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 824.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 63.5*45.7*24mm (L*W*H
PACKING 0.057Kg; 120pcs/ 7.84Kg/0.94CUFT

Meanwell EPS-15-12 Features

l  Universal AC input/Full range

l  Protections: Short circuit/Overload /Over voltage

l  Cooling by free air convection

l  1.8"x2.5" compact size

l  No load power consumption<O.3W

l  Operating altitude up to 3000 meters

l  3 years warranty

Meanwell EPS-15

Meanwell EPS-15-12 Mechanical Diagram

Meanwell EPS-15-12 Mechanical Diagram
