EPP-200
32.04

EPP-200

As low as $32.04

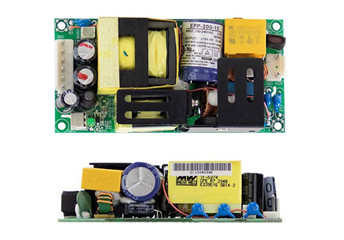

Meanwell 200W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell EPP-200
Brand Meanwell
Details

Meanwell EPP 200 Series is a 200W highly reliable green PCB type power supply. The entire series features PFC Function and high-power density (21.9W/in) on the 4" by 2 footprint. It accepts 80~264V AC input and offers various output voltages between 12V and 48V. With the working efficiency up to 94% and the extremely low no load power consumption<0.5W, EPP-200 is able to be used for both Class I (with FG) and Class II (no FG) system design. Moreover, the series is equipped with complete protection functions of Short circuit, Overload, Over voltage and Over temperature. Apart from them, it is complied with the international safety regulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. Considering the high efficiency, low cost and longevity, Meanwell EPP-200 series serves as a high price-to-performance power supply solution for various industrial applications.

EPP-200

Meanwell EPP-200 Series Model Specifications

Model EPP-200-12 EPP-200-15 EPP-200-24 EPP-200-27 EPP-200-48
OUTPUT DC VOLTAGE 12V 15V 24V 27V 48V
CURRENT 10CFM 16.7A 13.4A 8.4A 7.5A 4.2A
Convection 11.7A 9.4A 5.9A 5.3A 3A
RATED POWER 10CFM 200.4 201W 201.6W 202.5W 201.6W
Convection 140.4W 141W 141.6W 143.1W 144W
RIPPLE & NOISE (max.) 100mVp-p 100mVp-p 150mVp-p 150mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 11.4-12.6V 14.3-15.8V 22.8-25.2V 25.6-28.4V 45.6-50.4V
VOLTAGE TOL ERANCE  ±2.0% ±2.5% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 12ms/230VAC 12ms/115VAC at full load
INPUT VOLTAGE RANGE 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.94/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 93.00% 93.00% 94.00% 94.00% 94.00%
AC CURRENT (Typ.) 1.8A/115VAC 1A/230VAC
INRUSH CURRENT(Typ.) COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 13.2-15.6V 16.5-19.5V 26.4-31.2V 29.7-35V 52.8-62.4V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Protection type : Shut down o/p voltage, re-power on to recover

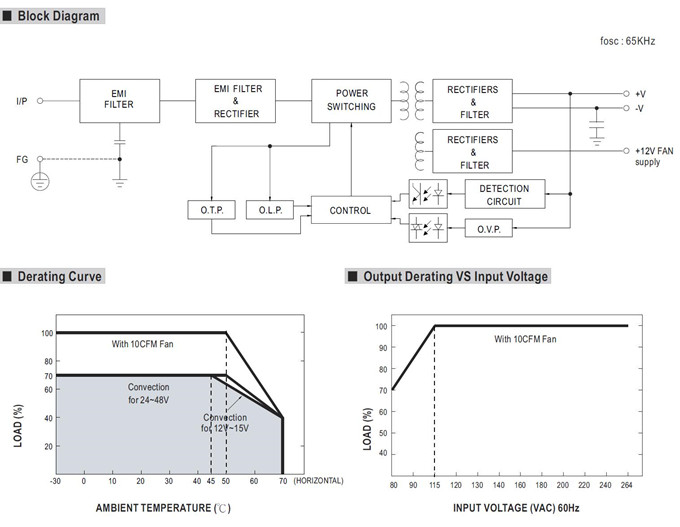

ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP -40 ~ +85
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE 5000 meters
FUNCTION FAN SUPPLY 12V@0.5A for driving a fan ; tolerance +15% ~ -15% at main output 20% rated current (10CFM)
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Conduction for Class B Radiation for Class B with FG(Class) and
Class A without FG(Class
), BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, heavy industry level,
criteria A, EAC TP TC 020
OTHERS MTBF 500.2Khrs min. MIL-HDBK-217F (25)
DIMENSION 101.6*50.8*29mm (L*W*H)
PACKING 0.19Kg; 72pcs/14.7Kg/0.82CUFT

Meanwell EPP-200 Series Features

l  4"x2"miniature size

l  Universal AC input/Full range

l  Built-in active PFC function

l  EMI Conduction for Class B Radiation for Class B with FG(Class I ) and Class A without FG ( ClassII )

l  No load power consumption<0.5W

l  High efficiency up to 94%

l  Protections: Short circuit /Overload/Over voltage/Over temperature

l  Cooling by free air convection for 1 40W and 200W with1 OCFM forced air

l  Built-in 12V/0.5A FAN supply

l  LED indicator for power on

l  Operating altitude up to 5000 meters

l  3 years warranty

Meanwell EPP-200

Meanwell EPP-200 Series Applications

l  Industrial control system

l  Industrial automation machinery

l  Mechanical and electrical equipment

l  Electronic instruments, equipment, or apparatus

Meanwell EPP-200

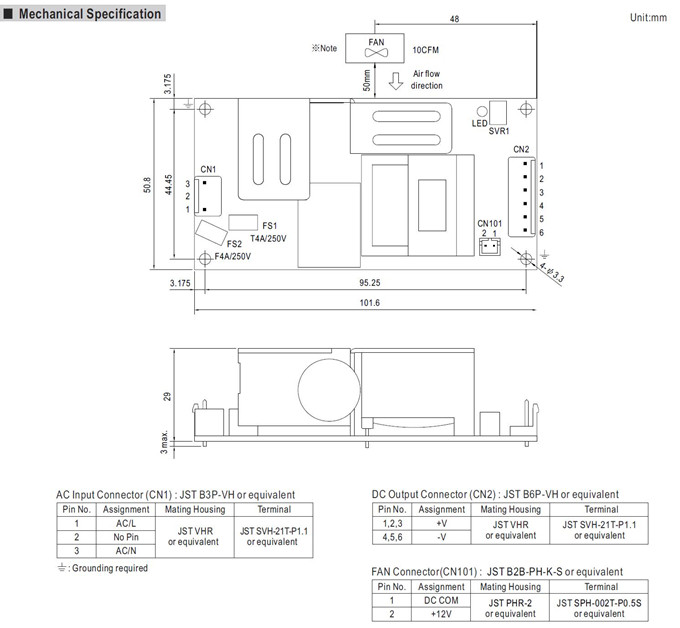

Meanwell EPP-200 Series Mechanical Diagram

Meanwell EPP-200 Series Mechanical DiagramMeanwell EPP-200 Series Mechanical Diagram
