EPP-100-48
26.28

EPP-100-48

$26.28

Meanwell 100W Single Output with PFC Function with 48V1.6A2.1A0-1.6A0-2.1A76.8W100.8W300mVp-p47.04-50.4V±1.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell EPP-100-48
Brand Meanwell
Details

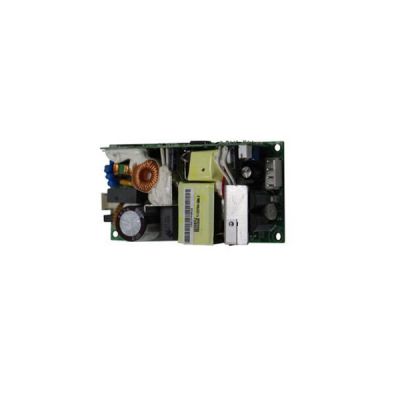

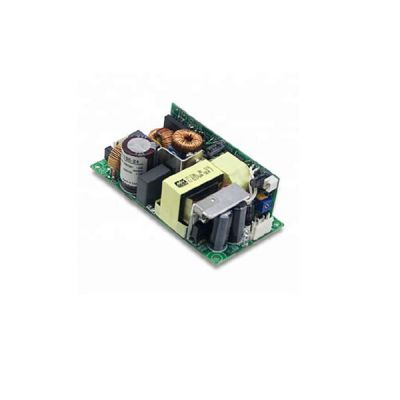

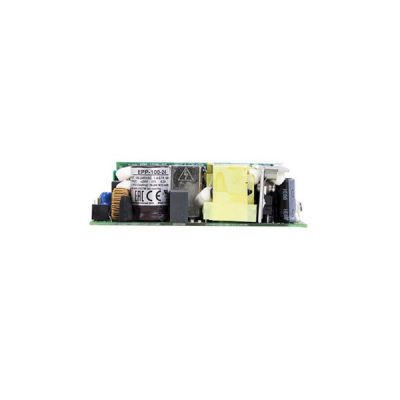

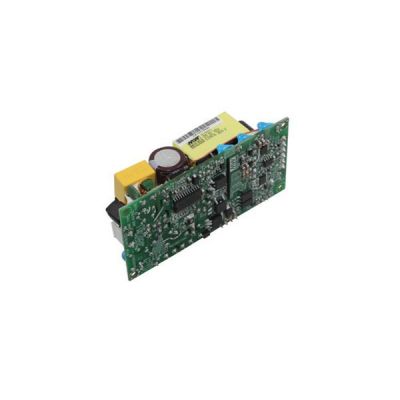

Meanwell EPP-100-48 is 100W Single Output highly reliable green PCB type power supply with 48V1.6A2.1A0-1.6A0-2.1A76.8W100.8W300mVp-p47.04-50.4V. It features PFC Function and high-power density on 4" by 2"footprint. Meanwhile, it also accepts 80~ 264VAC input and various output voltages between 12V and 48V. With the high working efficiency reaching up to 92.5% and the extremely low no load power consumption. EPP-100-48 can be used for both Class I (with FG) and Class II (no FG) system design. Moreover, the product offers the complete protection function types such as Short circuit, Overload, Over voltage and Over temperature. Apart from them, EPP-100-48 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Because of the high efficiency, powerful performance and longevity, Meanwell EPP-100-48 is a high price-to-performance power supply solution for various industrial applications.

Meanwell EPP-100-48 Specifications

Meanwell EPP-100-48 Specifications

Model EPP-100-48
OUTPUT DC VOLTAGE 48V
RATED CURRENT (convection) 1.6A
RATED CURRENT (20CFM FAN) 2.1A
CURRENT RANGE (convection) 0-1.6A
CURRENT RANGE (20CFM FAN) 0-2.1A
RATED POWER (convection) 76.8W
RATED POWER (20CFM FAN) 100.8W
RIPPLE & NOISE (max.) 300mVp-p
VOLTAGE ADJ. RANGE 47.04-50.4V
VOLTAGE TOL ERANCE  ±1.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±1.0%
SETUP, RISE TIME 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC 16ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 92.50%
AC CURRENT (Typ.) 1.4A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.) COLD START 70A/230VAC
LEAKAGE CURRENT <2mA/240VAC
PROTECTION OVERL OAD 105 ~ 145% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 51.3-62.7V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE 110±10 (RTH2),110±5 (TSW2)
Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION AUXILIARY POWER(AUX) 12V @0.3A for driving a fan, tolerance + 10% at main output 100% load
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
OPERATING ALTITUDE 2000 meters
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 249.6Khrs min. MIL-HDBK-217F (25)
DIMENSION 101.6*50.8*29mm (L*W*H)
PACKING 0.2Kg; 72pcs/15.4Kg/0.82CUFT

Meanwell EPP-100-48 Features

l  3 years warranty

l  4"x2" Compact size

l  Built-in active PFC function

l  High efficiency up to 92.5%

l  LED indicator for power on

l  Universal AC input/ Full range

l  Built-in 12V/0.3A auxiliary output

l  No load power consumption<0.5W

l  75W free air convection, 100W with 20CFM forced air

l  Protections: Short circuit/Overload/Over voltage/Over temperature

Meanwell EPP-100-48 Features

Meanwell EPP-100-48 Mechanical Diagream

Meanwell EPP-100-48 Mechanical Diagream
