ELG-150-C1750
26.62
Details

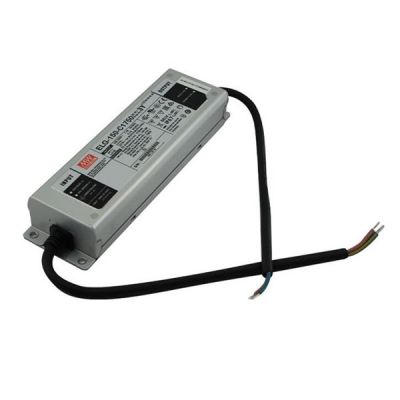

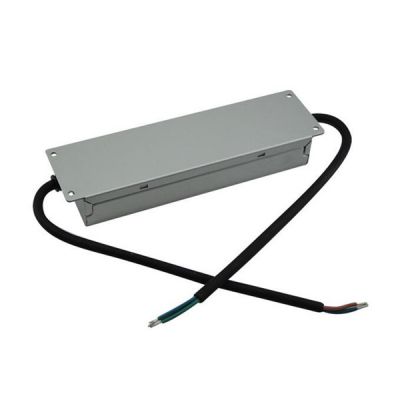

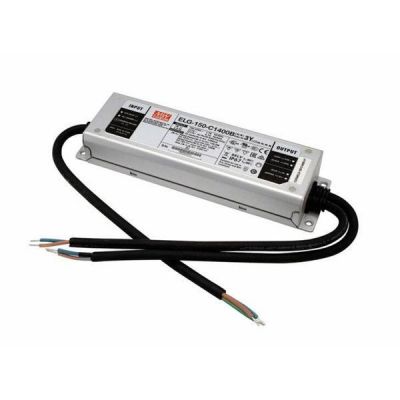

Meanwell ELG-150-C1750 is a 150W LED AC/DC driver with 1750mA100VAC~180VAC105W200VAC~305VAC150.5W133W43-86V43-76V94V875~1750mA. The model offers constant current mode and high voltage output. and operate from 100~360VAC.. Moreover, it is equipped with the rated current 1750mA. As the efficiency reaches high up to 92%, ELG-150-C1750 is able to work for -40℃~+85℃ case temperature under free air convection with fanless design. Besides them, the metal housing design and IP67/IP 65 ingress protection level make it possible to satisfy both indoor and outdoor applications. Additionally, the item is provided with various function options such as dimming methodologies. As a result of its longevity, high efficiency and excellent performance, Meanwell ELG-150-C1750 is an ideally suitable solution for the optimal design flexibility for LED lighting system.
Meanwell ELG-150-C1750 Encoding
| ELG | Series Name |
| 150 | Rated Wattage |
| C1750 | Rated Output Current (500/700/1050/1400/1750/2100mA) |
| A | Function Option |
| ***( Input Wiring Type) | Blank: 2-wire input for standard model) |
| 3Y: 3-wire input for standard model) |
| Type | IP Level | Function | Note |
| Blank | IP67 | IO fixed | In stock |
| A | IP65 | lo adjustable through built-in potentiometer. | In stock |
| B | IP67 | 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) | In stock |
| AB | IP65 | lo adjustable through built-in potentiometer & 3 in 1 dimming function (0~ 10Vdc, 10V PWM signal and resistance) |
In stock |
| DA | IP67 | DALI control technology | In stock |
| Dx | IP67 | Built-in Smart timer dimming function by user request | By request |
| D2 | IP67 | Built-in Smart timer dimming and programmable function | In stock |
| BE | IP67 | 3 in 1 dimming function and Auxiliary DC output | In stock |
Meanwell ELG-150-C1750 Specifications
| Model | ELG-150-C1750 □ | ||
| Output | RATED CURRENT | 1750mA | |
| RATED POWER | 100VAC ~ 180VAC | ||
| For all types | 105W | ||
| 200VAC ~ 305VAC | |||
| (Except for BE Type) | 150.5W | ||
| (For BE Type only) | 133W | ||
| CONSTANT CURRENT REGION | 43-86V | ||
| CONSTANT CURRENT REGION for BE type only | 43-76V | ||
| OPEN CIRCUIT VOLTAGE | 94V | ||
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via built-in potentiometer) | ||
| 875 ~ 1750mA | |||
| CURRENT RIPPLE | 5.0% max. @rated current | ||
| CURRENT TOLERANCE | ±5.0% | ||
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V) at 0.3A for BE-Type only | ||
| SET UP TIME | 600ms/115VAC 500ms/230VAC | ||
| Input | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC continue,320VAC for 24Hrs; 360VAC for 1Hr | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR (Typ.) | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load | ||
| TOTAL HARMONIC DISTORTION | THD< 20%( at load>=50%/115VC; at load>=60%/230VAC; at load>=75%/277VAC) | ||
| EFFICIENCY (Typ.) | 91.00% | ||
| EFFICIENCY (Typ.)(for BE Type only) | 89.00% | ||
| AC CURRENT (Typ.) | 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC | ||
| INRUSH CURRENT (Typ. ) | COLD START 65A(twidth=485μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||
| NO LOAD / STANDBY POWER CONSUMPTION | No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type |
||
| LEAKAGE CURR ENT | <0.75mA / 277VAC | ||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||
| OVER VOLTAGE | 96-106V | ||
| Shut down o/p voltage, re-power on to recover | |||
| ENVIRONMENT | WORKING TEMP | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |
| MAX. CASE TEMP. | Tcase=+90℃ | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||
| SAFETY &EMC | SAFETY STANDARDS | UL8750(type”HL”)(except for BE-type), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384; GB19510.1,GB19510.14,EAC TP TC 004,BIS IS15885(for 700A,1050A,700DA only), IP65 or IP67; KC61347-1,KC61347-2-13 approved |
|
| DALI STANDARDS | Compliance to IEC62386-101,102,(207 by request) for DA Type only | ||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C ( at load>=60%) ; BS EN/EN61000-3-3; GB17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547 |
||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020; KC KN15,KN61547 | ||
| Others | MTBF | 3102.4K hrs min. Telcordia SR-332 (Bellcore) ;308.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 219*63*35.5 mm (L*W*H) | ||
| PACKING | 0.95Kg; 16pcs / 16.0kg / 0.77CUFT | ||
Meanwell ELG-150-C1750 Features
l Constant Current mode output
l Metal housing design with functional Ground
l Built-in active PFC function
l No load/Standby power consumption <0.5W
l Typical lifetime> 50000 hours
l 5 years warranty
l lP67/IP65 rating for indoor or outdoor installations· Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off); Smart timer dimming; DALI;Auxiliary DC output
Meanwell ELG-150-C1750 Applications
l LED street lighting
l LED harbor lighting
l LED bay lighting
l LED greenhouse lighting
l LED flood lighting
l Type “HL” for use in Class l, Division 2 hazardous (Classified) location
Meanwell ELG-150-C1750 Mechanical Diagram
